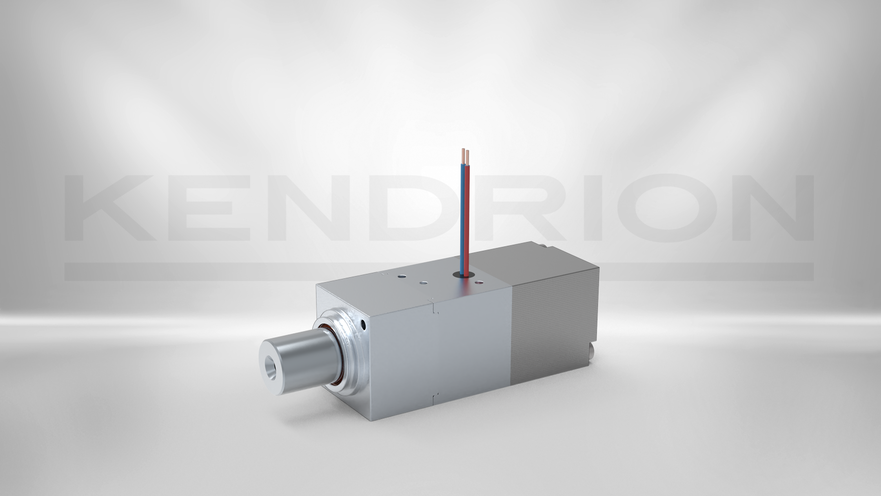

Locking Solenoid LHP035
LHP0350284
The LHP locking solenoid is based on the high-performance series LHP. The LHP locking unit features higher forces and shorter response times. The closing movement is from the stroke start position to the stroke end position, while the armature reset is taken over by an integrated return spring. An additional flange enables the separate bearing of the locking bolt and a high lateral force carrying capacity.
Technical details
| Description | Value |
|---|---|
| Nominal voltage | 24 V |
| Duty cycle | 100 % |
| Power consumption | 14.1 W |
| Stroke | 15 mm |
| Inital force | 7 N |
| Return mechanism | Spring |
| Dimensions (length, width, height) | 98.5,35,35 mm |
| Currentless locking? | no |
| Emergency opener | no |
| Thermal class | F 155 |
