Flat Grippers
Permanent magnetic flat grippers for reliable holding and gripping
Permanent magnetic flat grippers from Kendrion are available in different sizes, materials and designs. They are made of hard ferrite, NdFeB or SmCo, with stainless steel or galvanized housing. Various designs such as threaded bushings, threaded pins and different bores are possible. Due to their design, the flat grippers have only one holding surface. Of all the other surfaces of the gripper magnet body assumes no magnetic force. The permanent magnets are non-aging and have high holding forces.
Special designs for different requirements can be realized on request.
Should malfunctions with long-term temperature, thermal shock stresses or chemical stresses be concerned, please contact us in advance.
Products
(147)
|
Title
|
Type
|
Design
|
Material
|
Force (N)
|
Diameter (mm)
|
Height (mm)
|
Weight (g)
|
Temperature (°C)
|
Housing
|
Total height (mm)
|
Diameter threaded bush (mm)
|
Thread
|
Diameter bore (mm)
|
Diameter counter bore (mm)
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

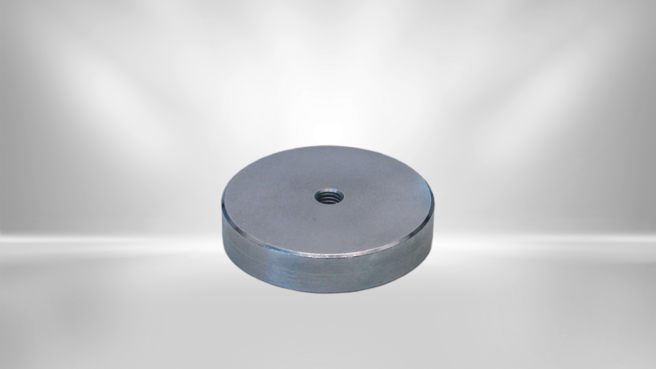

Permanent flat gripper HF | 550 4048 32 | with internal thread | NdFeB | 330 | 32 | 8 | 40 | 80 | galvanized | - | - | M5 | 5.5 | - | |
|
|
Permanent flat gripper HF | 550 4048 42 | with internal thread | NdFeB | 500 | 40 | 8 | 74 | 80 | galvanized | - | - | M5 | 10.5 | - | |
|
|
Permanent flat gripper HF | 550 404848 | with internal thread | NdFeB | 800 | 50 | 10 | 140 | 80 | galvanized | - | - | M8 | 9.5 | - | |
|
|
Permanent flat gripper HF | 550 4048 60 | with internal thread | NdFeB | 1100 | 63 | 14 | 315 | 80 | galvanized | - | - | M10 | 11.7 | - | |
|
|
Permanent flat gripper HF | 550 4048 75 | with internal thread | NdFeB | 1750 | 75 | 15 | 479 | 80 | galvanized | - | - | M10 | 13 | - | |
|

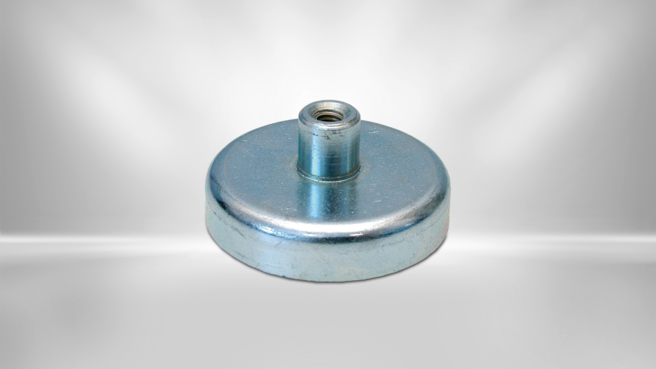

Permanent flat gripper SmCo | 550 4049 06 | with threaded bush | SmCo | 5 | 6 | 4.5 | 2 | 200 | galvanized | 11.5 | 6 | M3 | - | - | |
|
|
Permanent flat gripper SmCo | 550 4049 08 | with threaded bush | SmCo | 11 | 8 | 4.5 | 3 | 200 | galvanized | 11.5 | 6 | M3 | - | - | |
|
|
Permanent flat gripper SmCo | 550 4049 10 | with threaded bush | SmCo | 20 | 10 | 4.5 | 4 | 200 | galvanized | 11.5 | 6 | M3 | - | - | |
|
|
Permanent flat gripper SmCo | 550 4049 13 | with threaded bush | SmCo | 40 | 13 | 4.5 | 6 | 200 | galvanized | 11.5 | 6 | M3 | - | - | |
|
|
Permanent flat gripper SmCo | 550 4049 16 | with threaded bush | SmCo | 60 | 16 | 4.5 | 7 | 200 | galvanized | 11.5 | 6 | M4 | - | - | |
|
|
Permanent flat gripper SmCo | 550 4049 20 | with threaded bush | SmCo | 90 | 20 | 6 | 16 | 200 | galvanized | 13 | 8 | M4 | - | - | |
|
|
Permanent flat gripper SmCo | 550 4049 25 | with threaded bush | SmCo | 150 | 25 | 7 | 28 | 200 | galvanized | 14 | 8 | M4 | - | - | |
|
|
Permanent flat gripper SmCo | 550 4049 32 | with threaded bush | SmCo | 220 | 32 | 7 | 47 | 200 | galvanized | 15, 5 | 10 | M5 | - | - | |
|

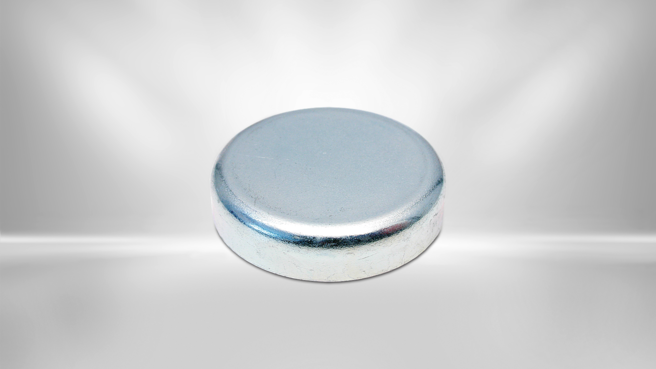

Permanent flat gripper SmCo | 550 4050 06 | without thread | SmCo | 5 | 6 | 4.5 | 1 | 200 | galvanized | - | - | - | - | - | |
|
|
Permanent flat gripper SmCo | 550 4050 08 | without thread | SmCo | 11 | 8 | 4.5 | 2 | 200 | galvanized | - | - | - | - | - | |
|
|
Permanent flat gripper SmCo | 550 4050 10 | without thread | SmCo | 20 | 10 | 4.5 | 3 | 200 | galvanized | - | - | - | - | - | |
|
|
Permanent flat gripper SmCo | 550 4050 13 | without thread | SmCo | 40 | 13 | 4.5 | 4 | 200 | galvanized | - | - | - | - | - | |
|
|
Permanent flat gripper SmCo | 550 4050 16 | without thread | SmCo | 60 | 16 | 4.5 | 7 | 200 | galvanized | - | - | - | - | - | |
|
|
Permanent flat gripper SmCo | 550 4050 20 | without thread | SmCo | 90 | 20 | 6 | 14 | 200 | galvanized | - | - | - | - | - | |
|
|
Permanent flat gripper SmCo | 550 4050 25 | without thread | SmCo | 150 | 25 | 7 | 26 | 200 | galvanized | - | - | - | - | - | |
|
|
Permanent flat gripper SmCo | 550 4050 32 | without thread | SmCo | 220 | 32 | 7 | 42 | 200 | galvanized | - | - | - | - | - |
