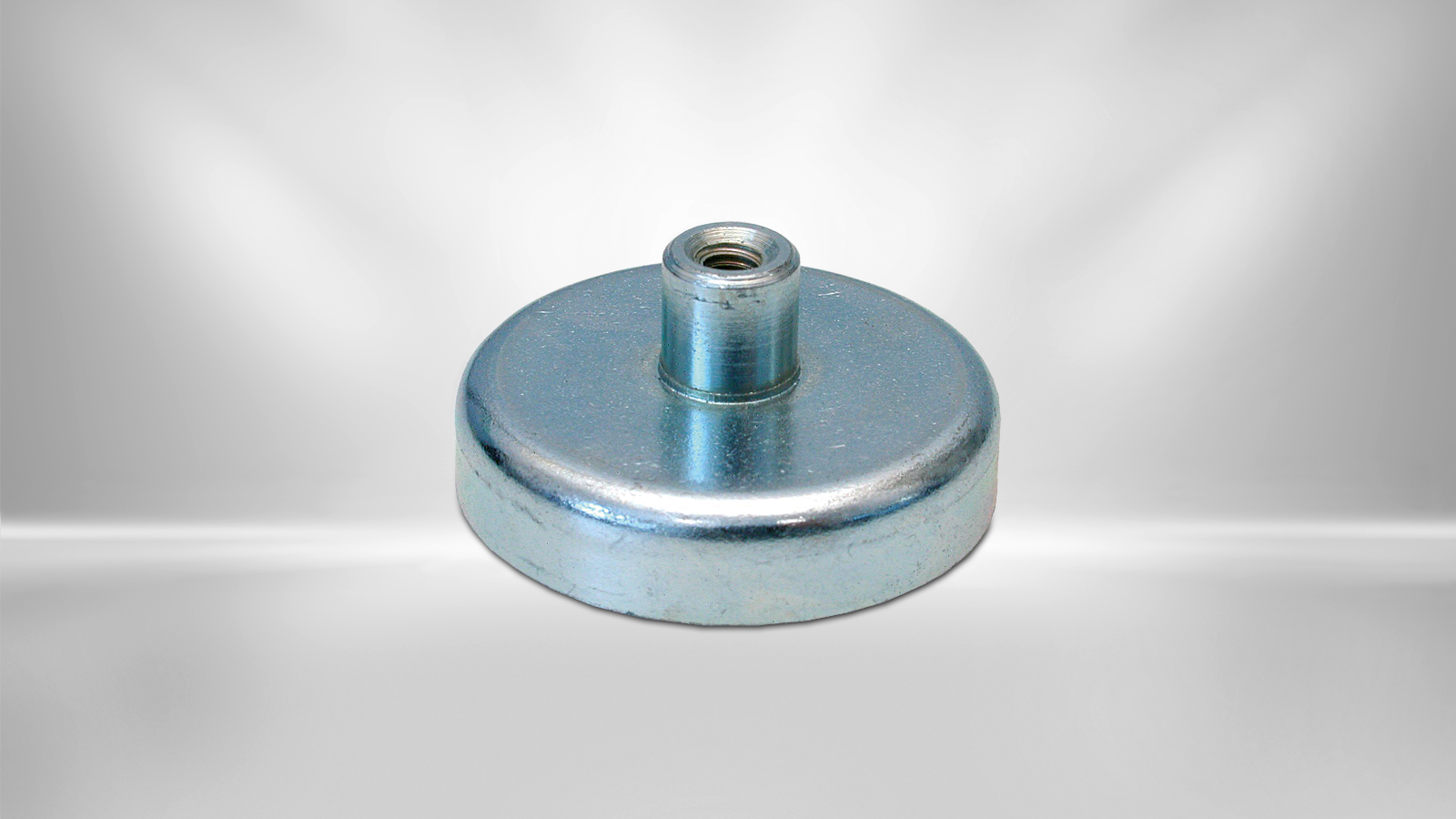

Permanent flat gripper SmCo
550 4049 10
Flat gripper with a samarium-cobalt magnet in a steel pot. The housing increases the adhesive force of the permanent magnet. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The flat gripper has a threaded socket with an internal thread.
Technical details
| Description | Value |
|---|---|
| Design | with threaded bush |
| Material | SmCo |
| Force | 20 N |
| Diameter | 10 mm |
| Height | 4.5 mm |
| Total height | 11.5 mm |
| Diameter threaded bush | 6 mm |
| Weight | 4 g |
| Thread | M3 |
| Temperature | 200 °C |
| Housing | galvanized |
