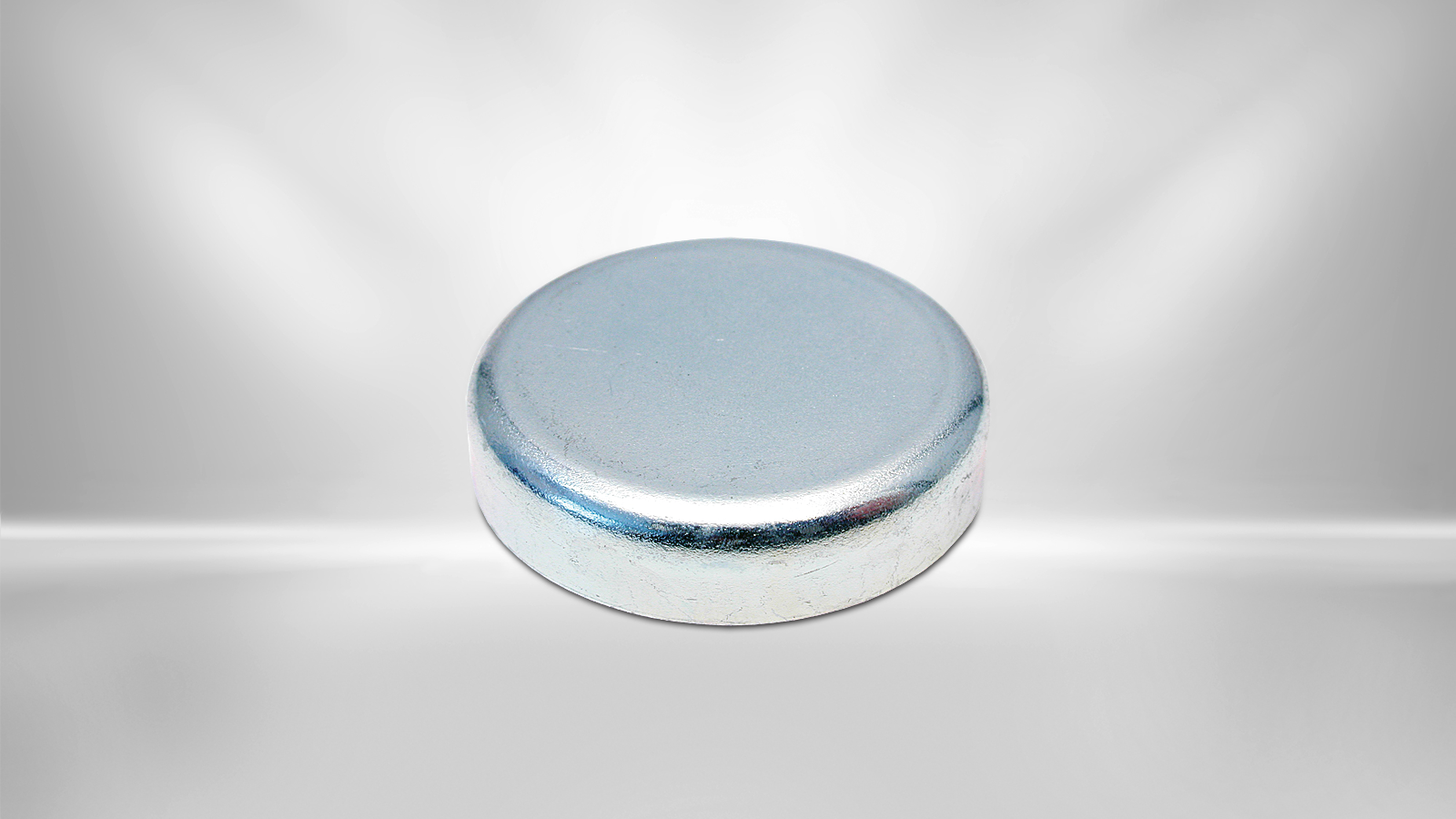

Permanent flat gripper SmCo
550 4050 32
Flat gripper with a samarium-cobalt magnet in a steel pot. The housing increases the adhesive force of the permanent magnet. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The flat gripper has no hole and is usually glued or pressed in.
Technical details
| Description | Value |
|---|---|
| Design | without thread |
| Material | SmCo |
| Force | 220 N |
| Diameter | 32 mm |
| Height | 7 mm |
| Weight | 42 g |
| Temperature | 200 °C |
| Housing | galvanized |
