Door holding magnets
Electromagnetic door holders
Kendrion offers a wide range of different door holding solenoids in tested quality. Doors are held open with low power consumption and high holding forces and closed by interrupting the power supply. Kendrion door holding solenoids are mainly used as holding devices on fire doors, gates or flaps. As a market-leading manufacturer, Kendrion offers a program for use in fire protection areas that complies with the guidelines. The electromagnetic door holding systems are also used on conventional doors in business and entrance areas and in special versions in maritime areas.
Products
(70)
show results as grid
show results as list
|
Title
|
Type
ascending
descending
|
Nominal voltage (V)
ascending
descending
|
Duty cycle (%)
ascending
descending
|
Power consumption (W)
ascending
descending
|
Holding force (N)
ascending
descending
|
Design
ascending
descending
|
Connection
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|
|

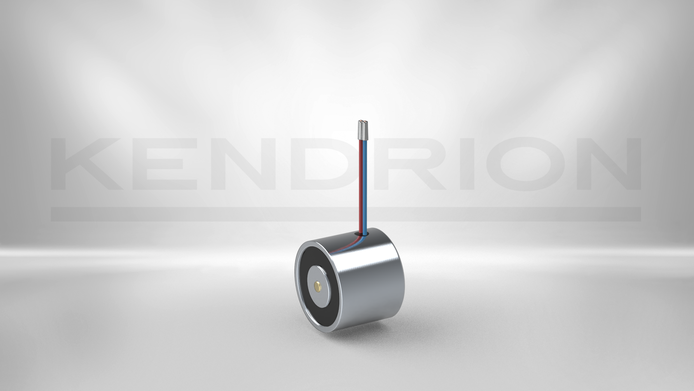

Door holding magnets GTR025
|
GTR025.000501 | 24 | 100 | 1.6 | 107 | Without base plate | free leads | to the product |
|

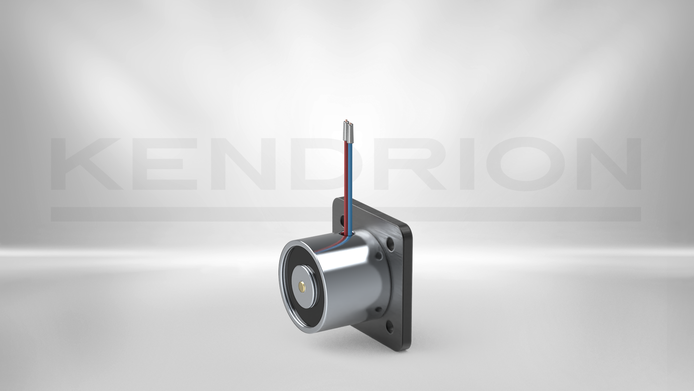

Door holding magnets GTR025
|
GTR025.025501 | 24 | 100 | 1.6 | 107 | With base plate | free leads | to the product |
|

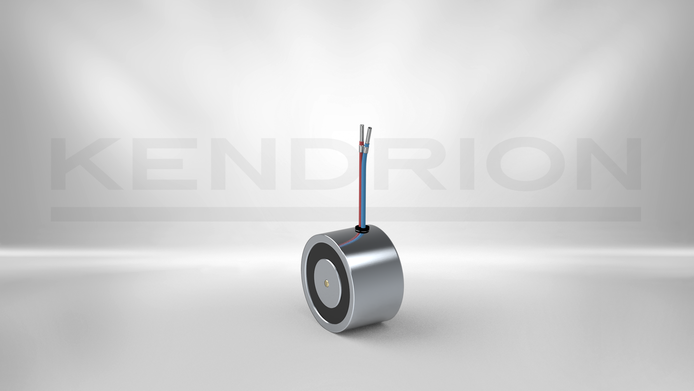

Door holding magnets GTR042
|
GTR042.125012 | 24 | 100 | 1.5 | 300 | Without base plate | free leads | to the product |
|

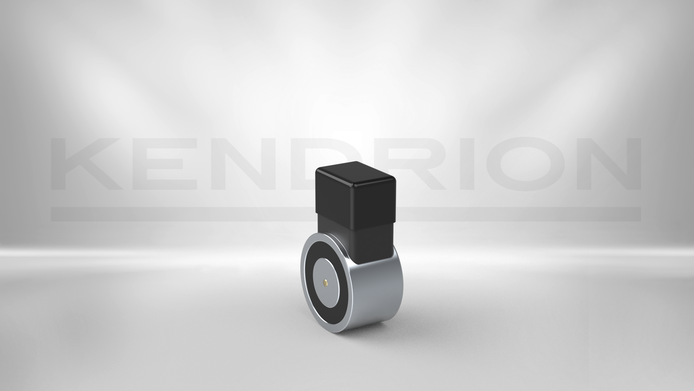

Door holding magnets GTR042
|
GTR042.130003 | 24 | 100 | 1.5 | 300 | Without base plate | terminal clamp | to the product |
|

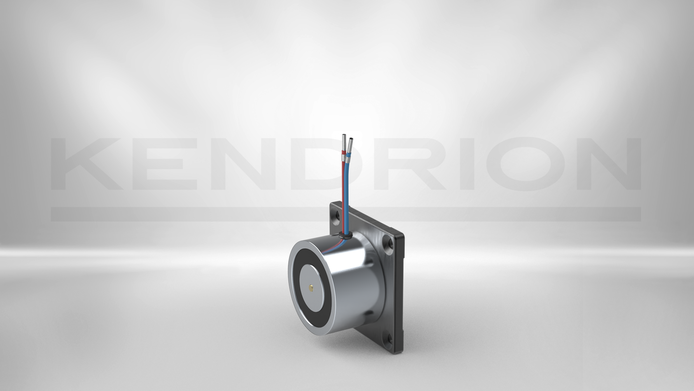

Door holding magnets GTR042
|
GTR042.100003 | 24 | 100 | 1.5 | 300 | With base plate | free leads | to the product |
|

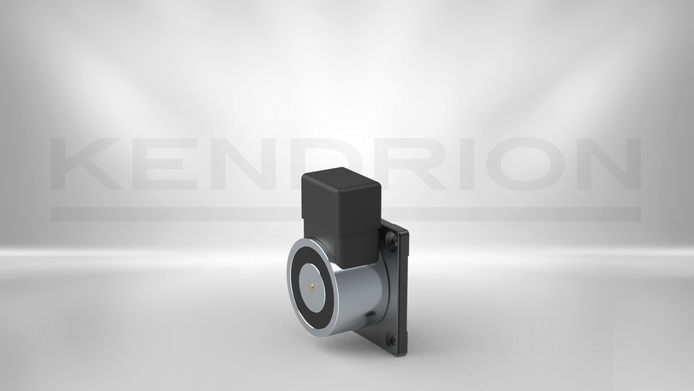

Door holding magnets GTR042
|
GTR042.100011 | 24 | 100 | 1.5 | 300 | With base plate | terminal clamp | to the product |
|

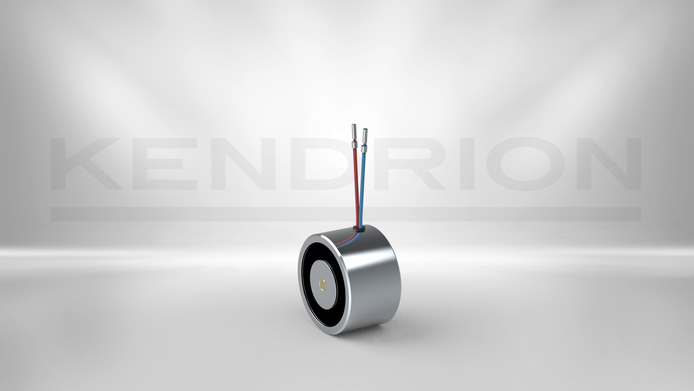

Door holding magnets GTR050
|
GTR050.007008 | 24 | 100 | 1.5 | 490 | Without base plate | free leads | to the product |
|

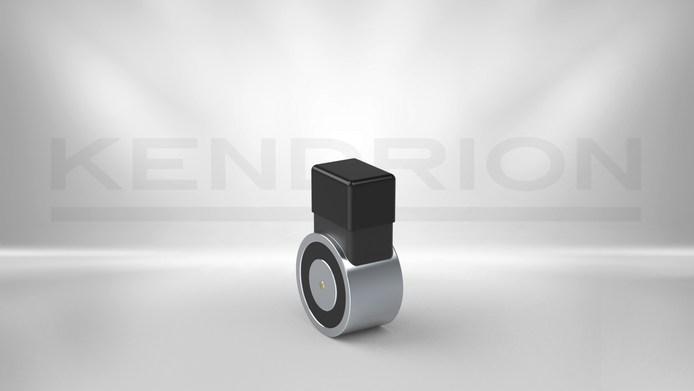

Door holding magnets GTR050
|
GTR050.007013 | 24 | 100 | 1.5 | 490 | Without base plate | terminal clamp | to the product |
|

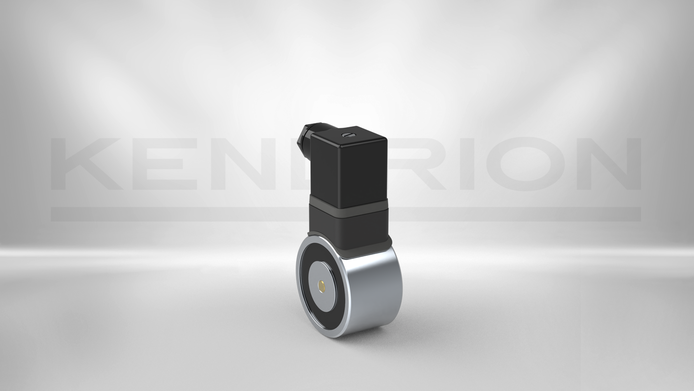

Door holding magnets GTR050
|
GTR050.007015 | 24 | 100 | 1.5 | 490 | Without base plate | plug in connector | to the product |
|

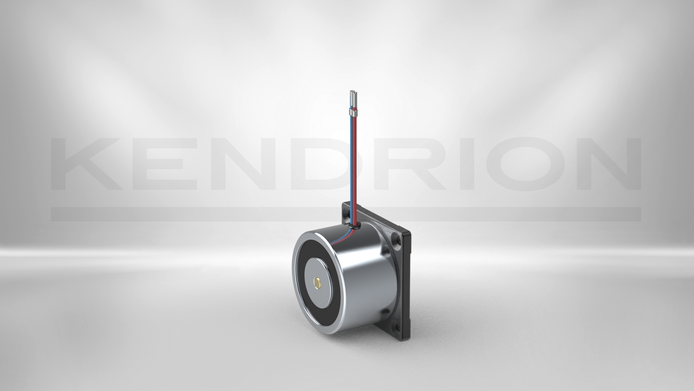

Door holding magnets GTR050
|
GTR050.030506 | 24 | 100 | 1.5 | 490 | With base plate | Free leads | to the product |
|

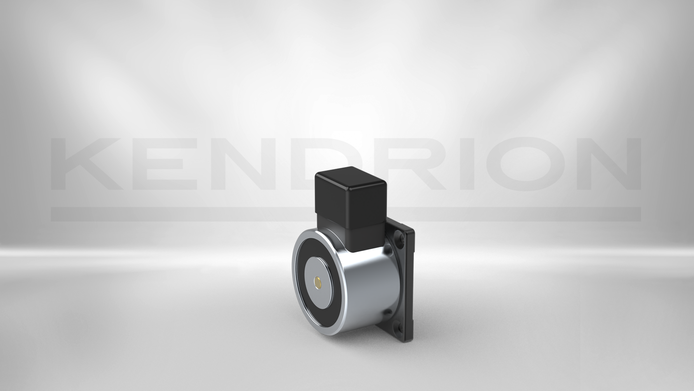

Door holding magnets GTR050
|
GTR050.030507 | 24 | 100 | 1.5 | 490 | With base plate | terminal clamp | to the product |
|

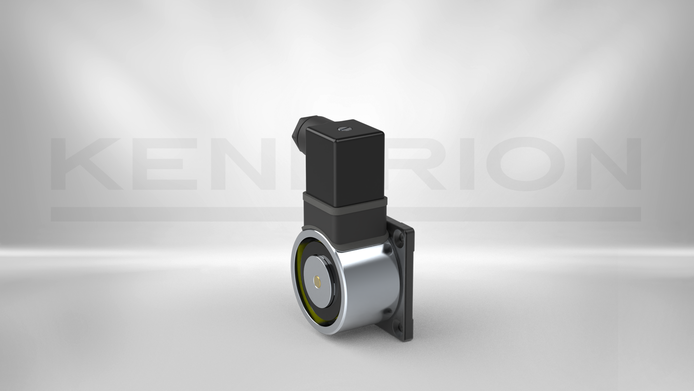

Door holding magnets GTR050
|
GTR050.025012 | 24 | 100 | 1.5 | 490 | With base plate | plug in connector | to the product |
|

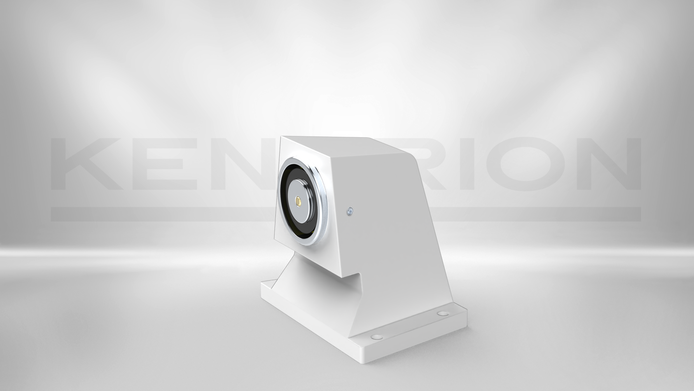

Door holding magnets GTR050
|
GTR050.500002 | 24 | 100 | 1.5 | 490 | Floor mounting, Alu | terminal clamp | to the product |
|

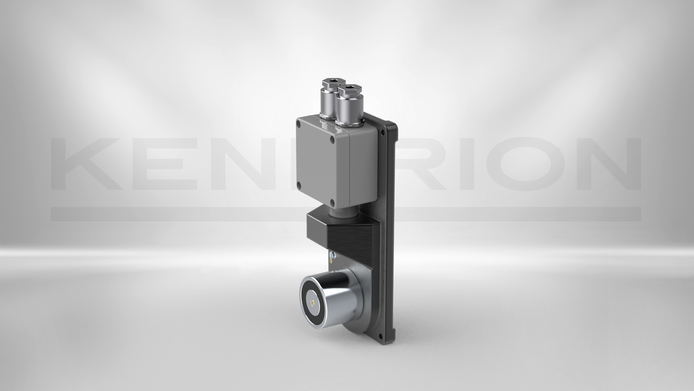

Door holding magnet GTR050 for the use on ships
|
GTR050.150002 | 24 | 100 | 1.5 | 490 | Ship model, IP65 | Connection box | to the product |
|
Door holding magnets GTR050
|
GTR050.180501 | 24 | 100 | 3 | 588 | EX-protected Zone 21/22 | terminal clamp | to the product |
|

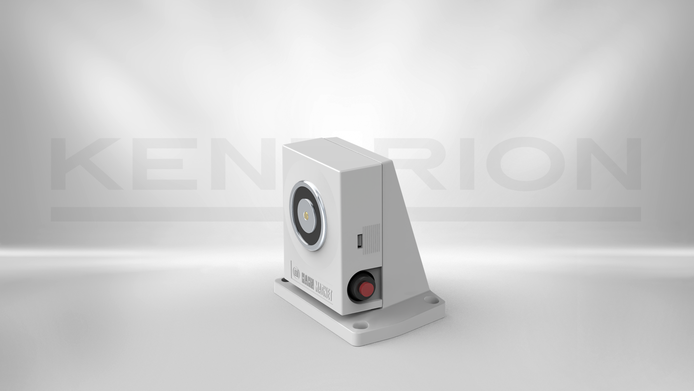

Door holding magnets GTR050
|
GTR050.203010 | 24 | 100 | 1.5 | 490 | Floor mounting | terminal clamp | to the product |
|

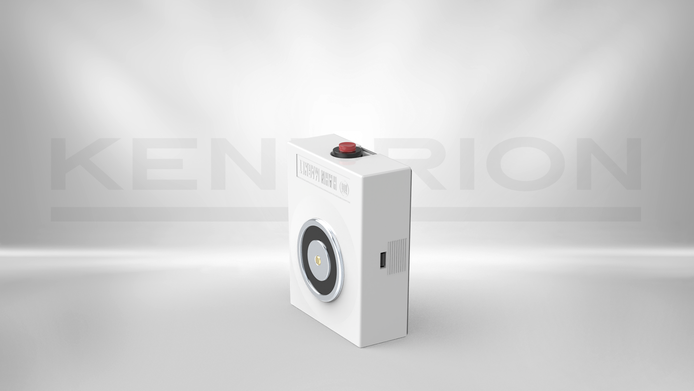

Door holding magnets GTR050
|
GTR050.228503 | 24 | 100 | 1.5 | 490 | Wall mounting | terminal clamp | to the product |
|

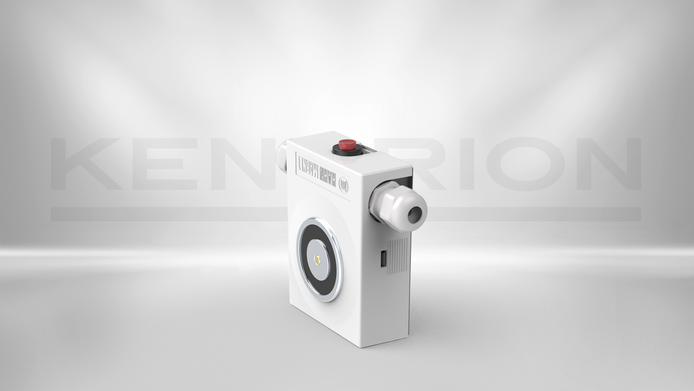

Door holding magnets GTR050
|
GTR050.252505 | 24 | 100 | 1.5 | 490 | Wall mounting, PG cable glands | terminal clamp | to the product |
|

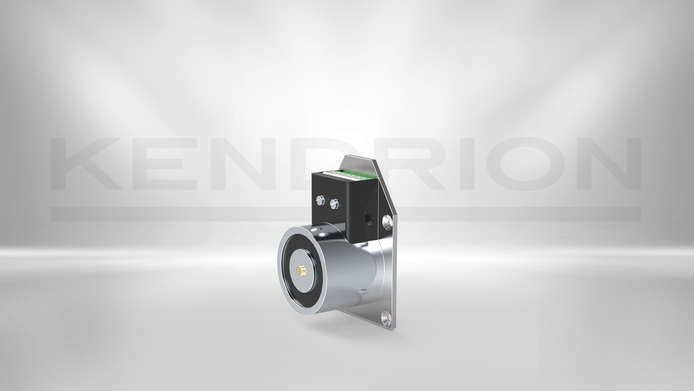

Door holding magnets GTR050
|
GTR050.536001 | 24 | 100 | 1.5 | 490 | with base plate, micro switch | terminal clamp | to the product |
|

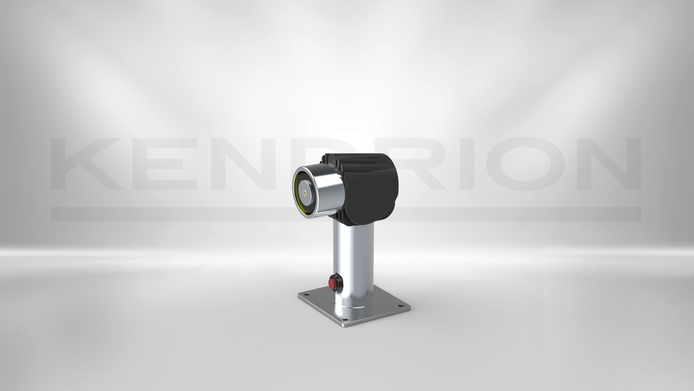

Door holding magnets GTR050
|
GTR050.276020 | 24 | 100 | 1.5 | 490 | Plastic swivel head 150/175 mm | terminal clamp | to the product |
|

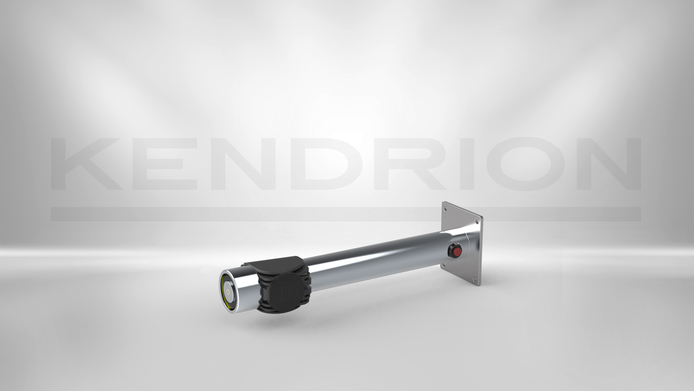

Door holding magnets GTR050
|
GTR050.276008 | 24 | 100 | 1.5 | 490 | Plastic swivel head 300/325 mm | terminal clamp | to the product |
