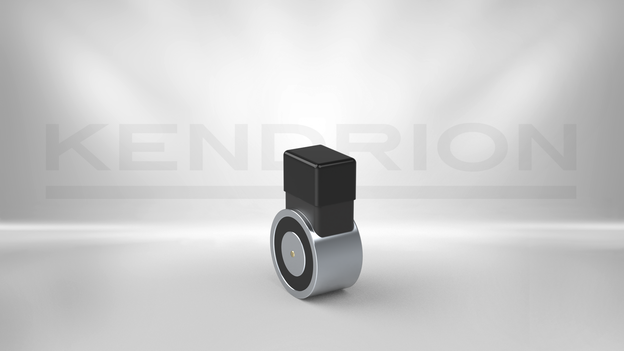

Door holding magnets GTR042
GTR042.130003
The door holding magnets are mainly used as holding devices on fire protection doors. They hold them in place when open. Controlled by a fire alarm or smoke protection control panel, they release the closures by interrupting the power supply in the event of a fire hazard.
Product features:
- Coil vacuum encapsulated (IP65)
- Optimized design and quality
- Accessories: Anchor plate
Technical details
| Description | Value |
|---|---|
| Nominal voltage | 24 V |
| Duty cycle | 100 % |
| Power consumption | 1.5 W |
| Holding force | 300 N |
| Connection | terminal clamp |
| Mounting | single magnet |
