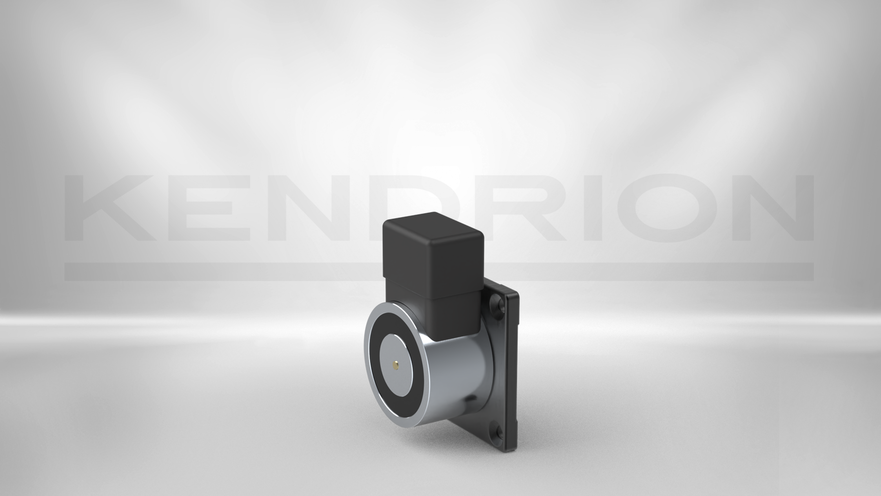

Door holding magnets GTR042

GTR042.100011

The door holding magnets are mainly used as holding devices on fire protection doors. They hold them in place when open. Controlled by a fire alarm or smoke protection control panel, they release the closures by interrupting the power supply in the event of a fire hazard. Product features: - Coil vacuum encapsulated (IP65) - VdS quality-controlled - Tested according to EN1155 & EN 14637 - Optimised design and quality - Accessories: Anchor plate

Technical details

Description Value
Nominal voltage 24 V
Duty cycle 100 %
Power consumption 1.5 W
Holding force 300 N
Design With base plate
Connection terminal clamp
