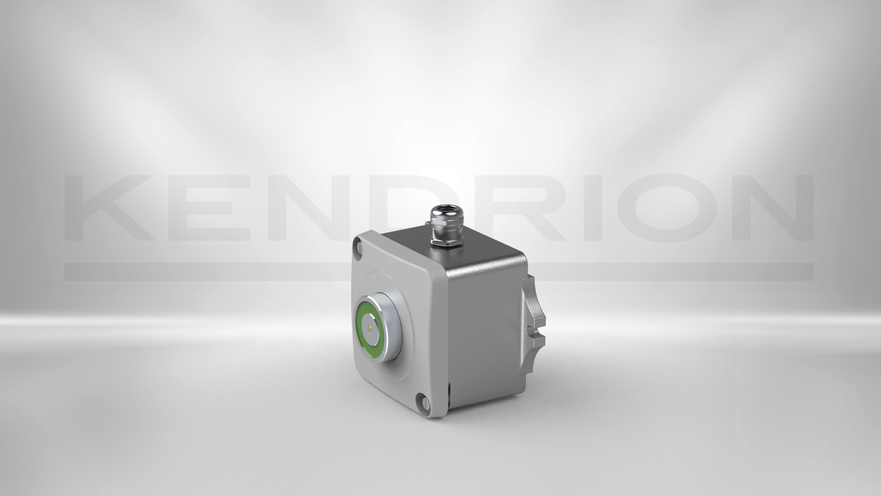

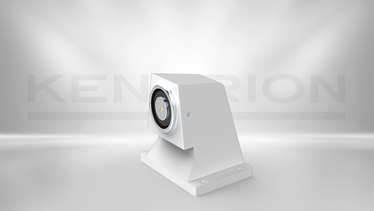

Door holding magnets GTR050 ATEX
GTR050.180501
The door holding magnets are mainly used as holding devices on fire protection doors. They hold them in place when open. Controlled by a fire alarm or smoke protection control panel, they release the closures by interrupting the power supply in the event of a fire hazard.
Product features:
- Coil vacuum encapsulated (IP65)
- VdS quality-controlled
- Ex approval
- Tested according to EN1155 & EN 14637
- Optimized design and quality
- Accessories: Anchor plate
Technical details
| Description | Value |
|---|---|
| Nominal voltage | 24 V |
| Duty cycle | 100 % |
| Power consumption | 3 W |
| Holding force | 588 N |
| Connection | terminal clamp |
| Products Approvals | VdS, ATEX |
| Mounting | wall mounting |
| Special Features | housing |
| Design | EXprotected Zone 21/22 |
