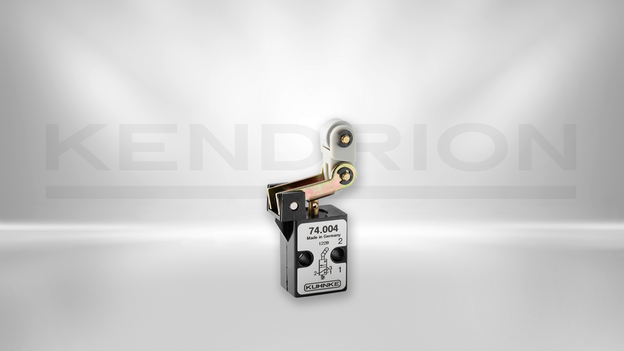

Mechanically Actuated Valve Type 74

74.004

This poppet valve has exclusively been designed to be used in control units. Because of its hexagonal shape, it requires only a minimum of space. There are different actuating modes (plunger, pushbutton, toggle lever, two way / one way lever with or without control panel actuators).

Technical details

Description Value
Function 3/2-way NC
Pressure range 0 - 12 bar
Nominal orifice 2 mm
Kv-value 1.3 l/min
Actuation type mechanically actuated, one way lever
Medium Filtered (5 µm), lubricated and non lubricated air
Type of pneumatic connection M5
Returning mechanism Spring
Ambient temperature -10 ... +60 °C
Valve type Poppet valve
Materials Housing: zinc, seal: NBR
Actuation directly controlled
Identification number 52934
