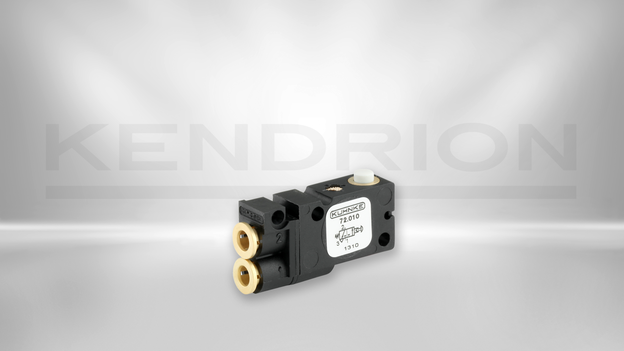

Mechanically Actuated Valve Type 72
72.015
This micro air valve was developed specially as a small signal element for mounting in confined spaces. Its design allows a big orifice at small overall dimensions. Pre-controlled by an air outlet in the integrated tube nipple it only needs a minimum of actuating force to shut off the pilot port.
Technical details
| Description | Value |
|---|---|
| Function | 3/2-way NO |
| Pressure range | 1.5 - 8 bar |
| Nominal orifice | 2 mm |
| Kv-value | 0.8 l/min |
| Actuation type | mechanically actuated, plunger |
| Medium | Filtered (5 µm), lubricated and non lubricated air |
| Type of pneumatic connection | M5 |
| Returning mechanism | Spring |
| Ambient temperature | -10 ... +60 °C |
| Valve type | Poppet valve |
| Materials | Polyamide, Al, NBR |
| Actuation | pilot controlled |
| Accessories | One way trip mechanism (order no. 42.300) |
| Identification number | 53370 |
