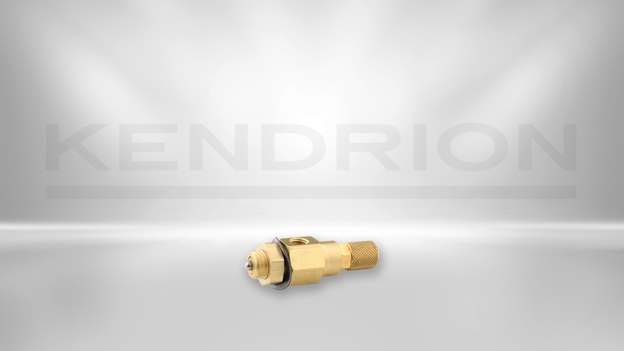

Mechanically Actuated Valve Type 42
42.250
The mechanically actuated poppet valve Type 42 has exclusively been designed to be used in control units. Because of its hexagonal shape, it requires only a minimum of space.
Technical details
| Description | Value |
|---|---|
| Function | 2/2-way NC |
| Pressure range | 0 - 8 bar |
| Nominal orifice | 2 mm |
| Kv-value | 1.3 l/min |
| Actuation type | mechanically actuated, plunger |
| Stroke | 2 mm |
| Medium | Filtered (5 µm), lubricated and non lubricated air |
| Type of pneumatic connection | M5 |
| Returning mechanism | Spring |
| Ambient temperature | -10 ... +60 °C |
| Valve type | Poppet valve |
| Actuation | directly controlled |
| Accessories | One way trip (order no. 42.300), mounting flange (order no. 38.301), mounting bracket (order no. 38.302) |
| Identification number | 79680 |
