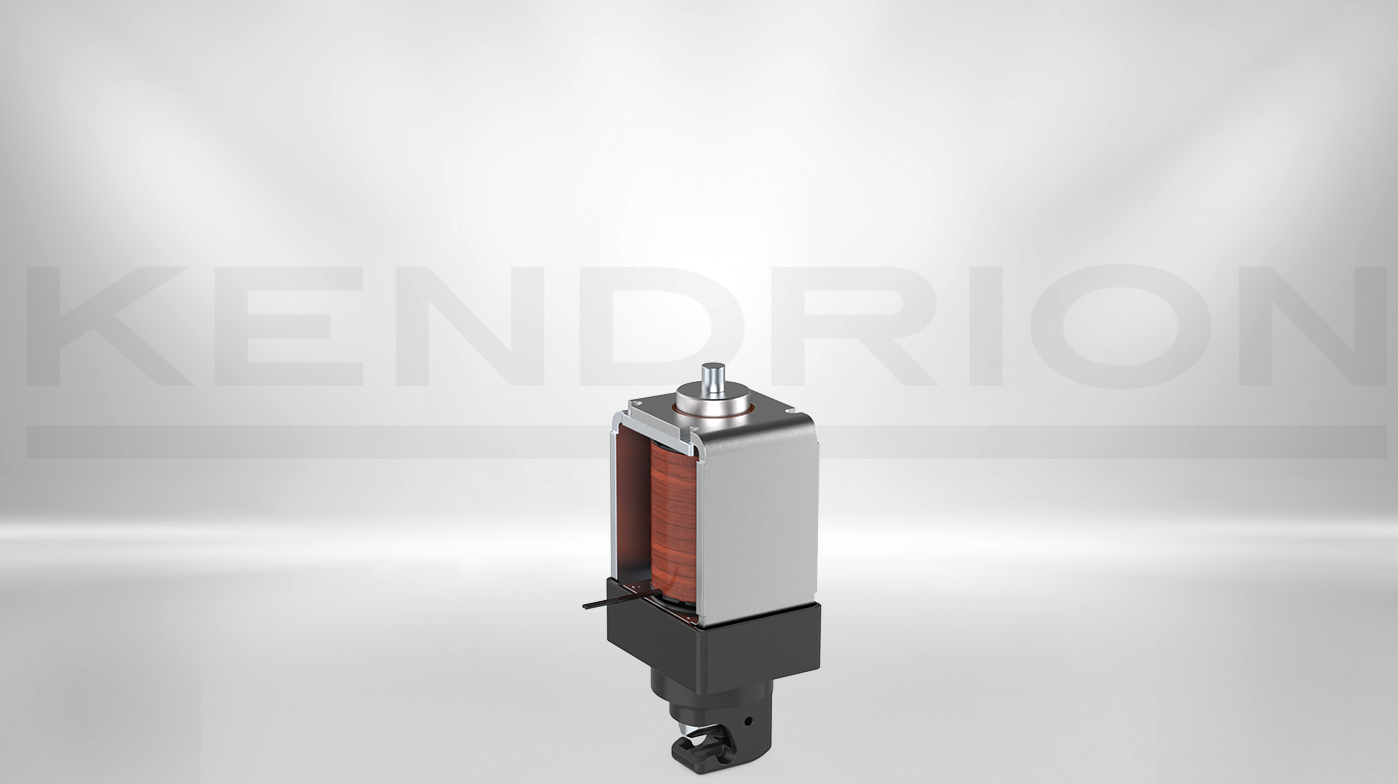

Power Pinch Valve PPV 7
PPV7 NO 24 VDC 100 ED
Electromagnetically operated pinch valve PPV 7 (NO) with high flow rates and precise control.
The 2/2-way NO (normally open) pinch valve clamps tubes with a diameter up to 7mm and depending on the used material (PVC / Silicone) up to 1.5mm wall thickness. It has a clamping force of 42N.
Optional:
- Manual release
Want to learn more about how the Power Pinch Valves work and their applications?
Technical details
| Description | Value |
|---|---|
| Solenoid weight | 1300 g |
| Dimensions | 84 x 53 x 146 |
| Design | 2/2 way |
| Mode of action | NO |
| Diameter hose | 4 to 7 mm |
| Nominal voltage | DC 24 V |
| Duty cycle | 100 % |
| Power consumption | 18 W |
| Thermal class | B 130 °C |
| Clamping force | 42 N |
| Connection | Lead 20 cm |
