Solenoid Pinch Valves
1
2
Welcome to the KENDRION Pinch Valve ProductFinder!
Our solenoid pinch valves feature high flow rates and precise control.
The pinch valves are used to clamp a wide variety of hose materials. Kendrion pinch valves are important components for the precise control of flow, for example in laboratory, medical and analysis technology or beverage automation. They are available in standard solution and can be developed in customer-specific design on request.
Want to learn more about how Kendrion pinch valves work and their applications?
Products
(2)
|
Title
|
Type
|
Solenoid weight (g)
|
Dimensions
|
Design
|
Mode of action
|
Diameter hose (mm)
|
Nominal voltage (V)
|
Duty cycle (%)
|
Power consumption (W)
|
Thermal class
|
Clamping force (N)
|
Connection
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

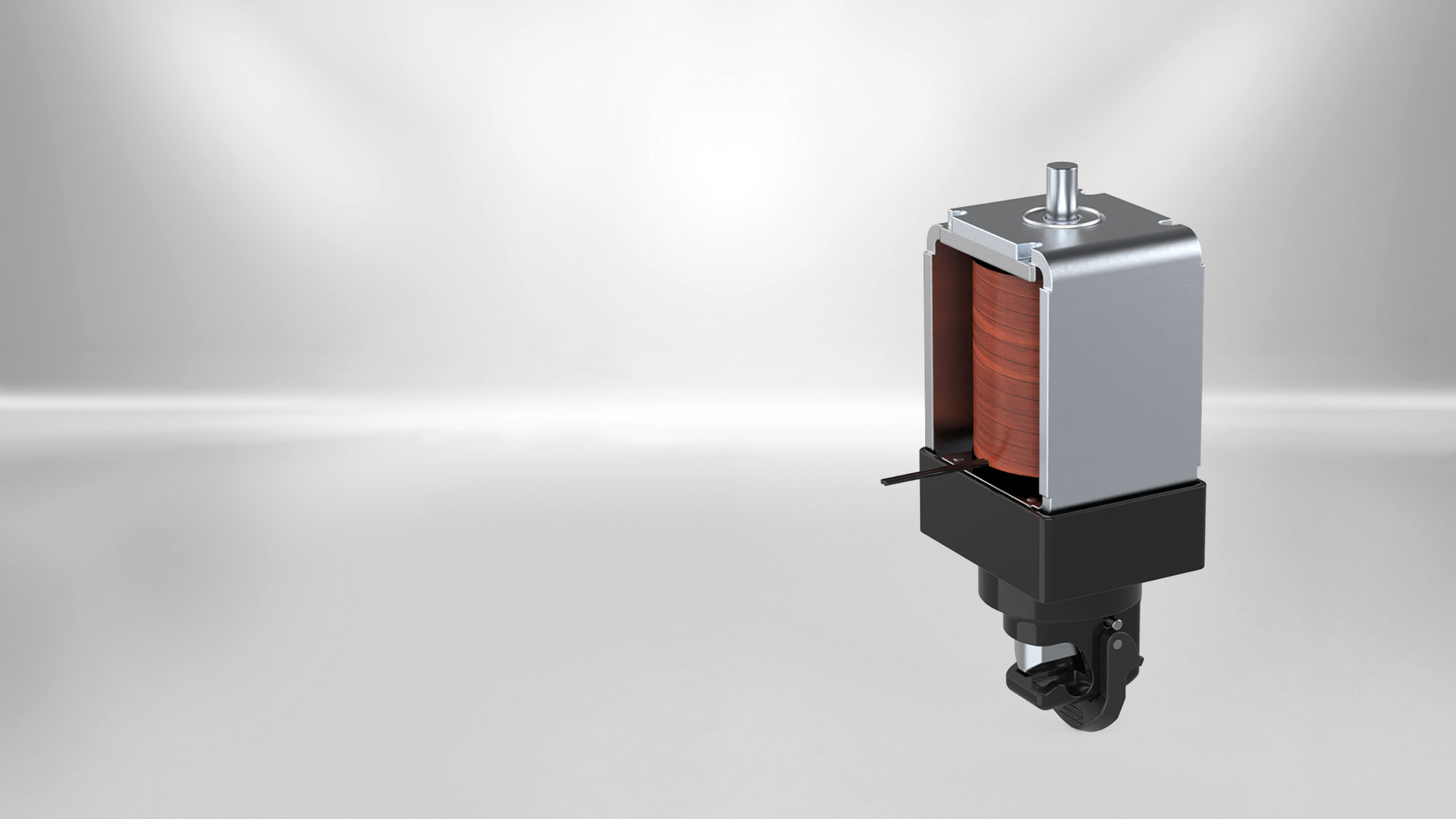

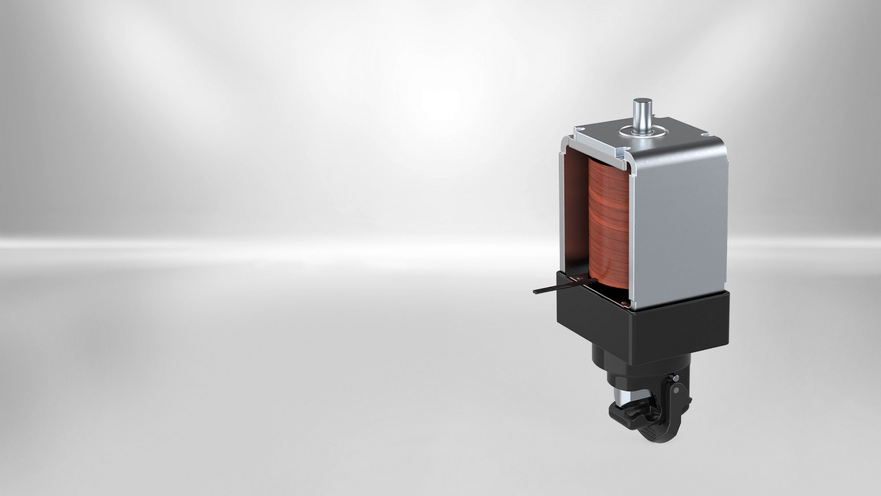

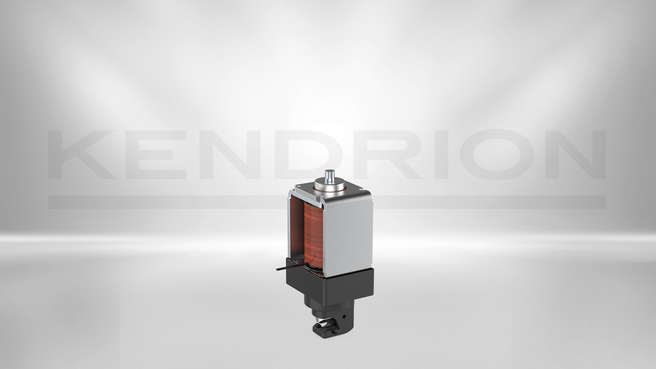

Power Pinch Valve PPV 7 | PPV7 NO 24 VDC 100 ED | 1300 | 84 x 53 x 146 | 2/2 way | NO | 4 | DC 24 | 100 | 18 | B 130 °C | 42 | Lead 20 cm | |
|

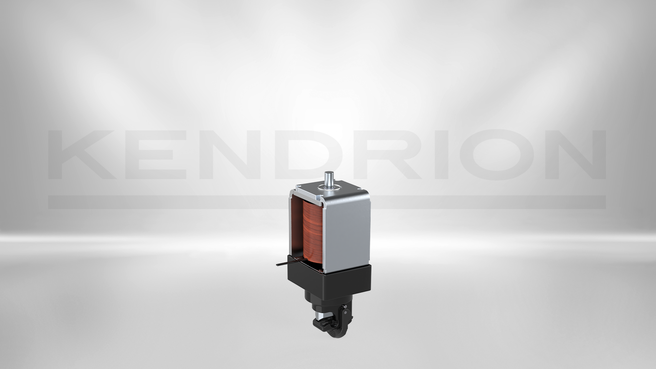

Power Pinch Valve PPV 7 with manual release | PPV7 NC 24 VDC 100 ED | 1300 | 84 x 53 x 146 | 2/2 way | NC | 4 | DC 24 | 100 | 18 | B 130 °C | 42 | Lead 20 cm |
