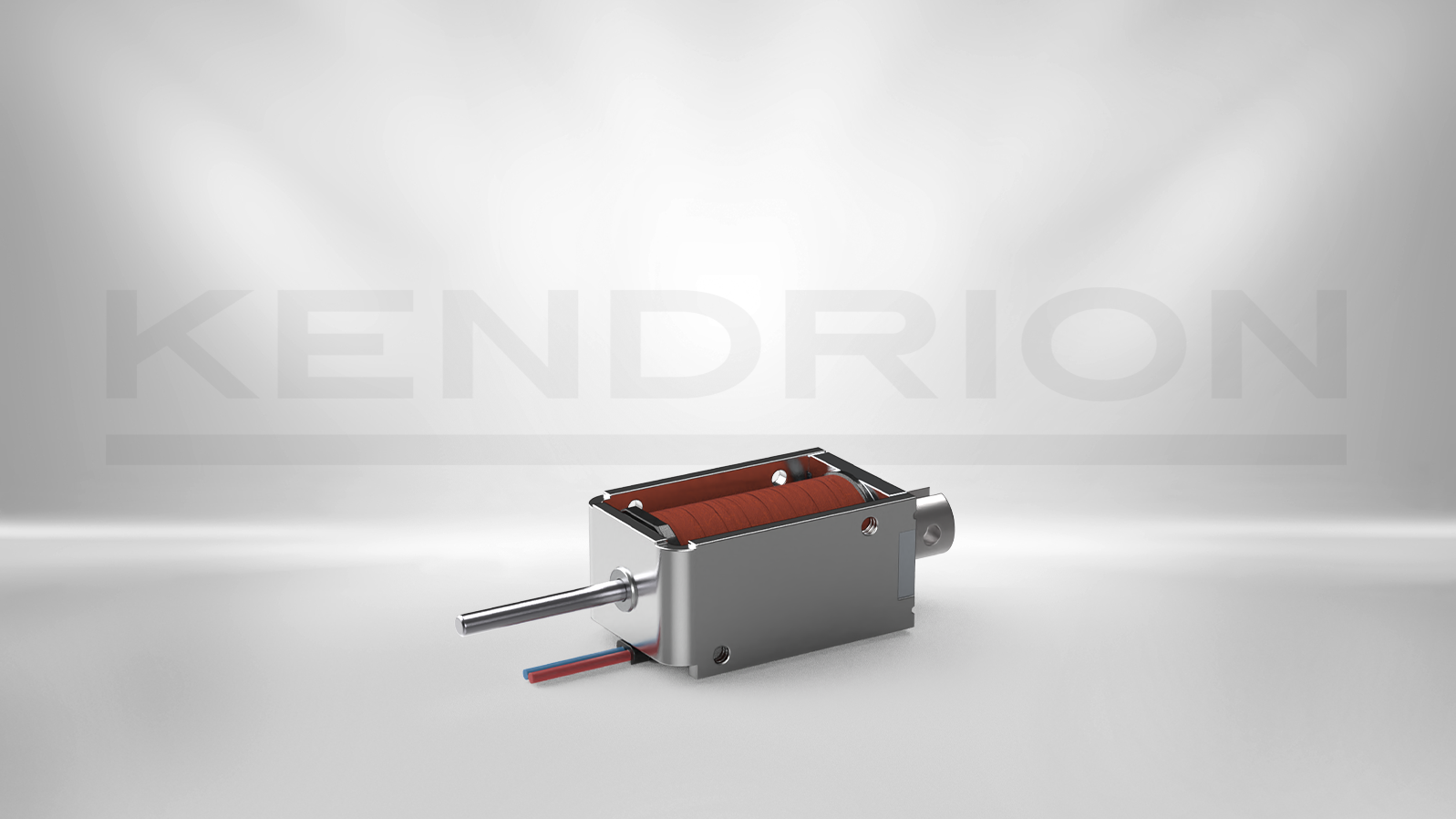

Linear Solenoid H2286

H2286-R-F-24V DC 100 ED

Open frame linear solenoid as a combi type solenoid with integrated return spring. Our preferred types are available in small quantities from stock. Other versions or other voltages are available on request. More information can be found in the download area.

Technical details

Description Value
Nominal voltage 24 V
Duty cycle 100 %
Power consumption 5.2 W
Stroke 5 mm
Inital force 0.6 N
End force 3.5 N
Return spring Yes
Dimensions (length,width,height) 25,20,32 mm
Design No
Protection class IP 00
Thermal class B, 130
Connection 10 cm lead
Solenoid weight 65 g
Armature weight 13 g
