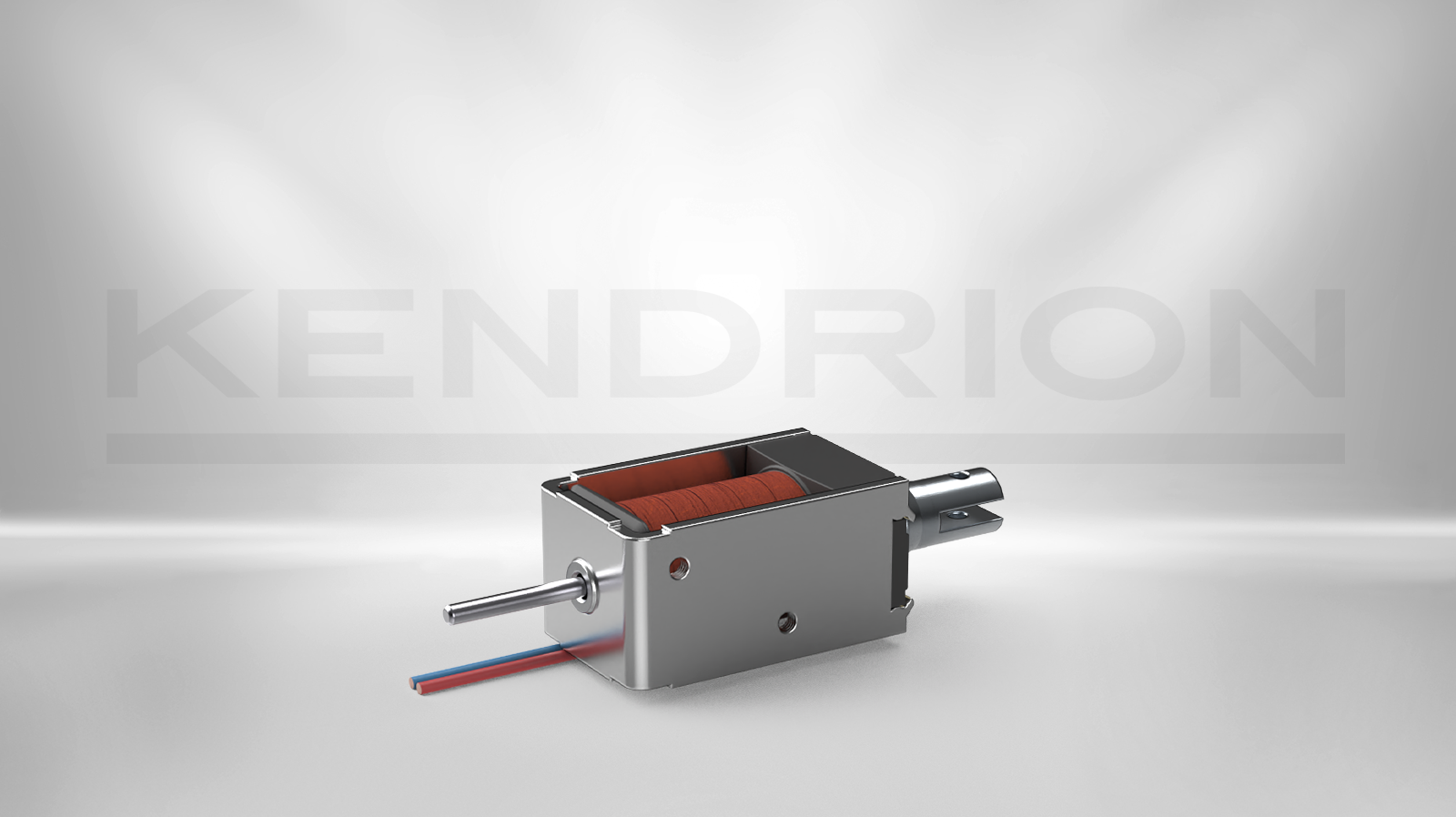

Bistable Linear Solenoid BI 16
BI 16-F-24V DC 10 ED
Bistable linear solenoid with permanent magnetic support in open frame technology. Our preferred types are available in small quantities from stock. Other versions or other voltages are available on request. More information can be found in the download area.
Technical details
| Description | Value |
|---|---|
| Nominal voltage | 24 V |
| Duty cycle | 10 % |
| Power consumption | 19 W |
| Stroke | 4 mm |
| Inital force | 5 N |
| End force | 12 N |
| Return spring | Yes |
| Dimensions (length,width,height) | 19,16,31 mm |
| Design | Yes |
| Protection class | IP 00 |
| Thermal class | F, 155 |
| Connection | 10 cm lead |
| Solenoid weight | 47 g |
| Armature weight | 14 g |
