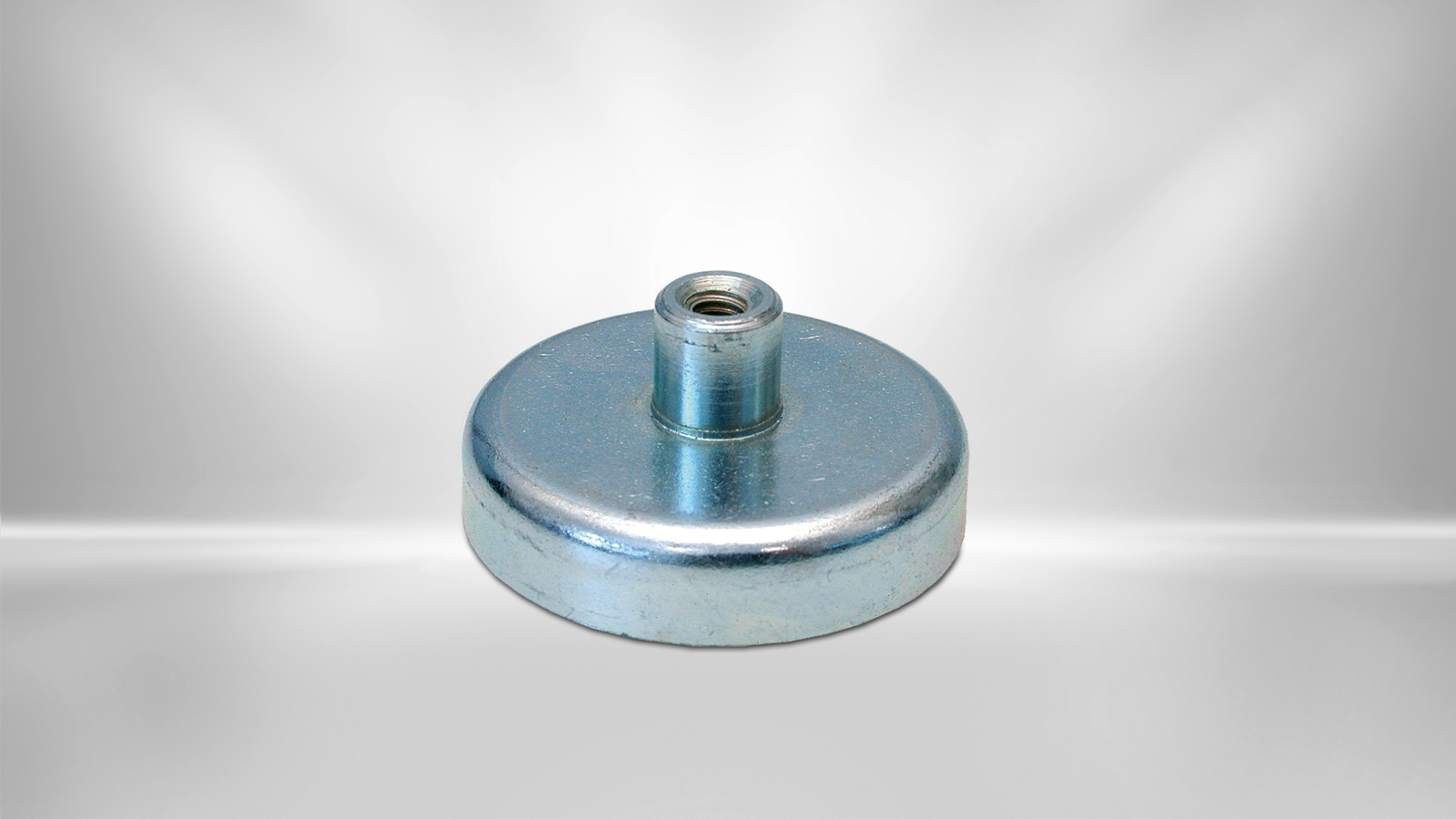

Permanent flat gripper NdFeB
550 4017 42
Flat gripper with a neodymium magnet in a steel pot. The housing increases the adhesive force of the permanent magnet. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The flat gripper has a threaded socket with an internal thread.
Technical details
| Description | Value |
|---|---|
| Design | with threaded bush |
| Material | NdFeB |
| Force | 580 N |
| Diameter | 42 mm |
| Height | 9 mm |
| Total height | 20 mm |
| Diameter threaded bush | 12 mm |
| Weight | 78 g |
| Thread | M6 |
| Temperature | 80 °C |
| Housing | galvanized |
