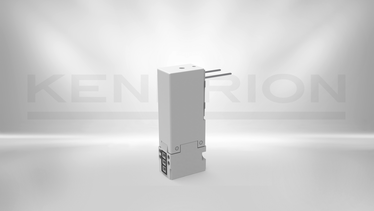

Bistable Solenoid Valve Type 63.0 BI
63.050.10 BI
10 mm width, bistable latching solenoid valve or bistable 3/2-way solenoid valve which require only a short electrical power pulse to change the state. On request other sealing materials like EPDM or FKM are possible.
Technical details
| Description | Value |
|---|---|
| Function | 3/2-way Bistable |
| Pressure range | 0 - 8 bar |
| Nominal orifice | 0.5 mm |
| Type of pneumatic connection | Flange |
| Kv-value | 0.11 l/min |
| Size | 10 mm |
| Actuation type | electrically actuated |
| Duty cycle | 100 % ED |
| Type of electric connection | Wire |
| Medium | Filtered (5 µm), lubricated and non lubricated air |
| Nominal power | 2.9 W |
| Nominal voltage | 24 V DC |
| Returning mechanism | Spring |
| Protection class | IP65 |
| Ambient temperature | -10 ... +50 °C |
| Valve type | Poppet valve |
| Materials | Base: PBT, seal: NBR |
| Actuation | directly controlled |
