Advanced optical shutter

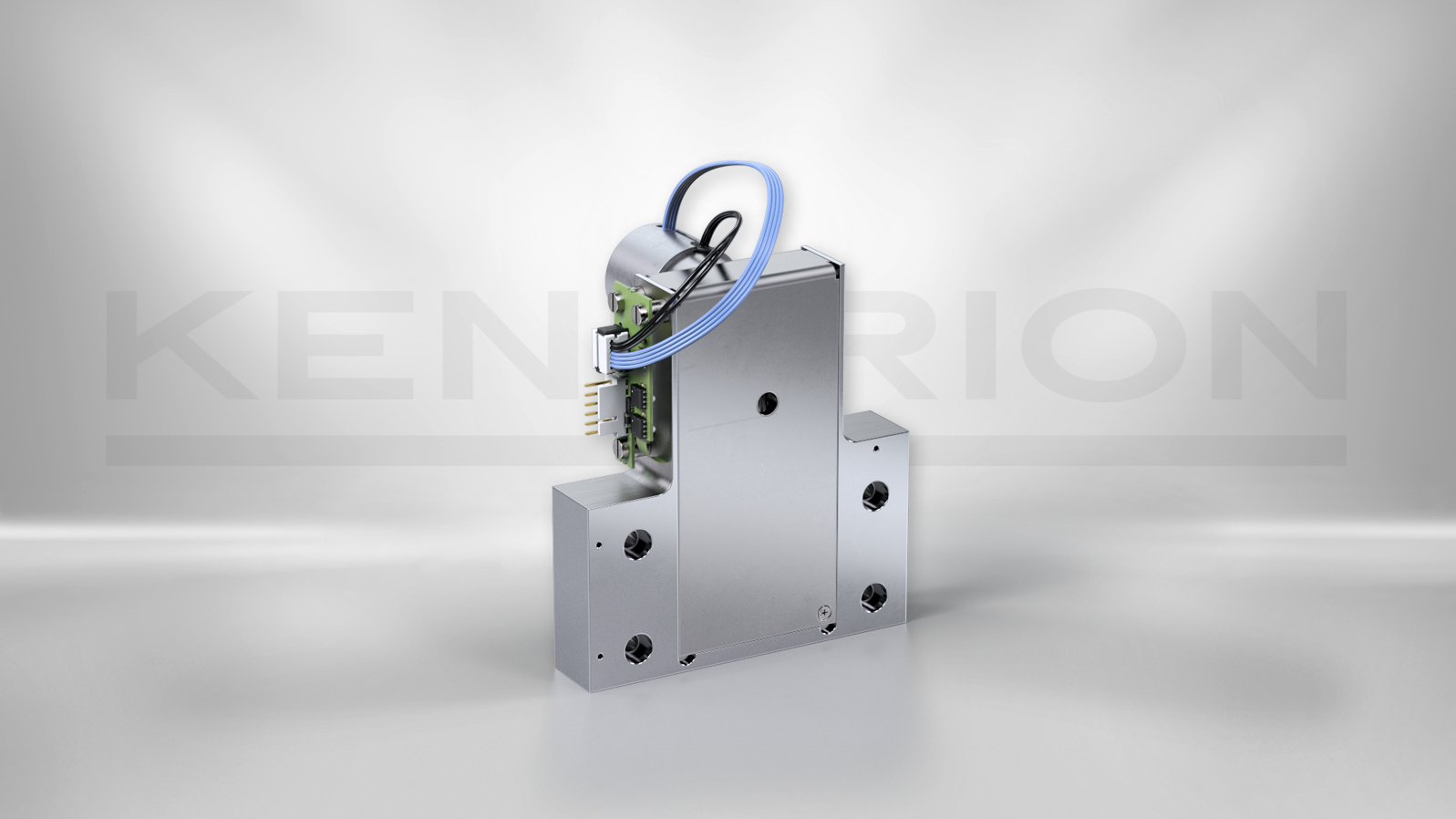

DS200X8 Lasershutter
The advanced laser shutter DS200X8 combines with its short closing time of less than 15 ms. a long mechanical service life with the possibility of detecting the position and monitoring the mirror temperature. When the shutter is closed, the laser beam is absorbed in the beam trap. A laser power of up to 100 W is possible.
Technical details
| Description | Value |
|---|---|
| Rotation angle | 30° |
| Return mechanism | Spring return |
| End position detection | Yes |
| Housing type | round |
| Nominal voltage | 12V DC / 24V DC optional V |
| Duty cycle | 100% ED % |
| Power consumption | 4 W / 6V DC holding voltage W |
| Thermal class | B (130 °C) |
| Connection | Wire 20 cm |
| Dimensions | 100 x 60 x 100mm |
| Switching time | ≤ 15 ms ms |
| Switching frequency | max. 5 Hz Hz |
