Pressure regulators

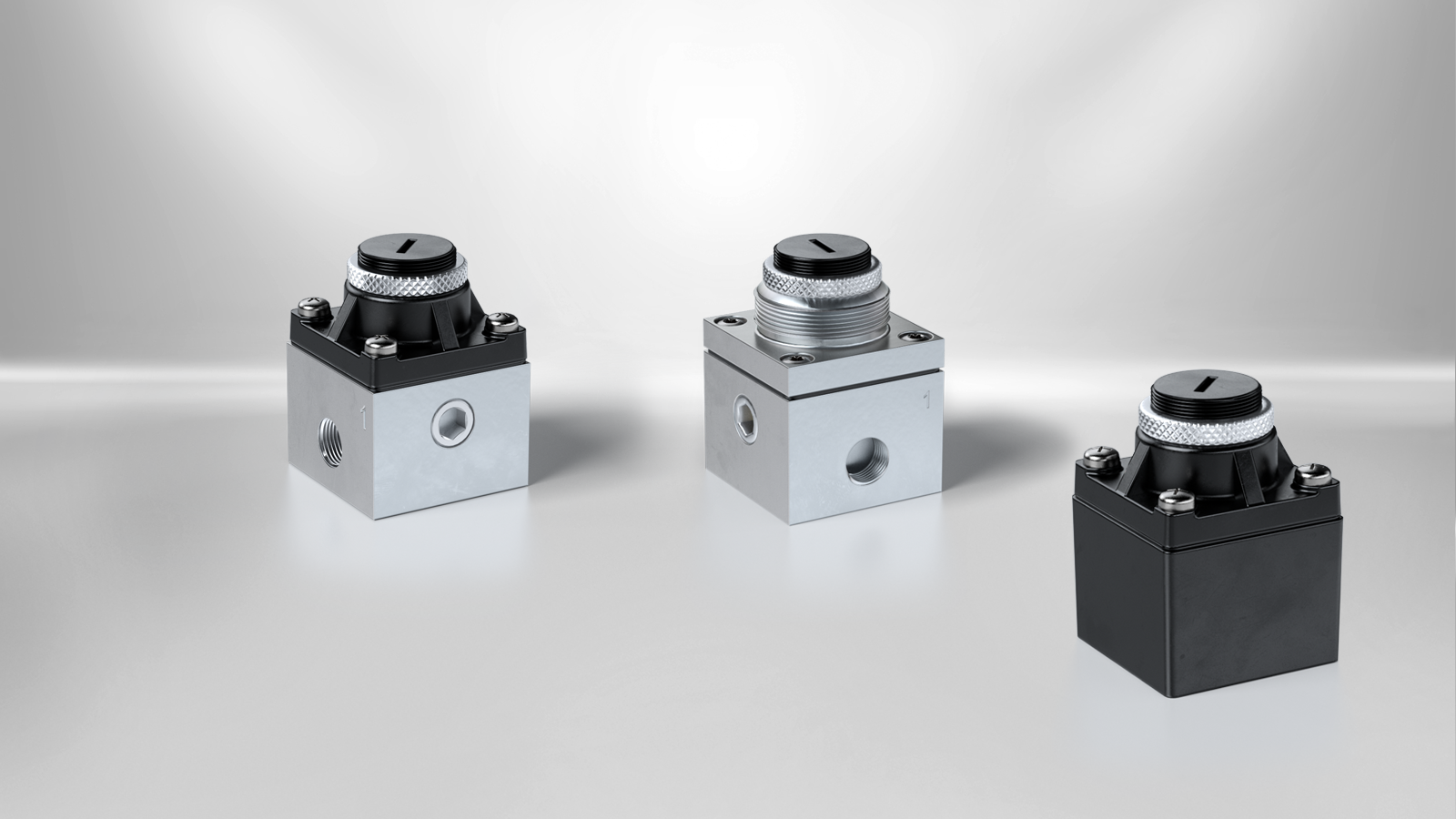

Precision pressure regulators - large volume flow with precise regulation properties
The precision pressure regulators from Kendrion are universally applicable. For example, they are used in medical and dental technology, but also in compressed air brakes in mechanical engineering. Kendrion pressure regulators are characterized by very good control characteristics with compact size. This enables high realizable flow rates. As standard, the precision pressure regulators are equipped with NBR sealing material. On request, versions with EPDM and Viton (FKM) seals are available to allow the pressure regulators to be used in contact with drinking water or oxygen.
Kendrion pressure regulators were formerly known under the name Kuhnke.
Products
(38)
|
Title
|
Type
|
Max. setting pressure (bar)
|
Type of pneumatic connection
|
Pressure range (bar)
|
Ventilation
|
Medium
|
Returning mechanism
|
Ambient temperature (°C)
|
Materials
|
Size (mm)
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

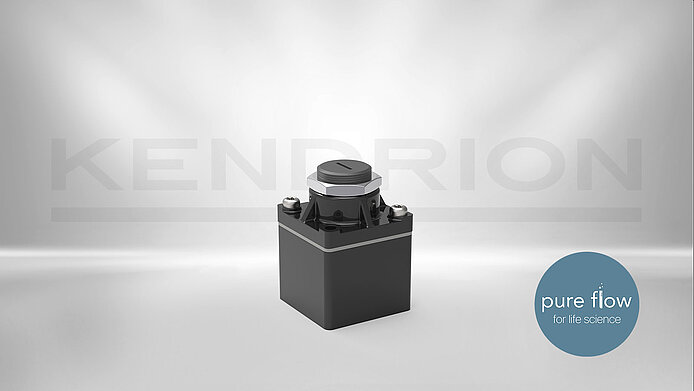

Pure Flow Pressure regulator 48.3x | 0.2 | Flange | 0.2 - 10 | Secondary pressure with integrated pressure relief | Non-aggressive media, inert gases, oxygen (others on request) | - | 0 ... +60 | Wetted material: PA66, stainless steel seal: EPDM; FKM, NBR (others on request) | 30 x 30 x 46 | ||
|

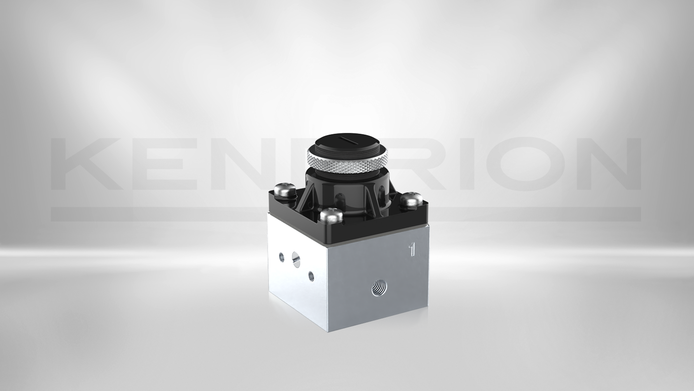

Pressure Regulator with M5 connection | 48.200.00.10.00 | 1 | M5 | 0.2 - 10 | with secondary exhaust | non-aggressive media | Feder | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with M5 connection | 48.200.00.10.10 | 1 | M5 | 0.2 - 10 | without secondary exhaust | non-aggressive media | Feder | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with M5 connection | 48.200.00.25.00 | 2.5 | M5 | 0.2 - 10 | with secondary exhaust | non-aggressive media | Feder | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with M5 connection | 48.200.00.25.10 | 2.5 | M5 | 0.2 - 10 | without secondary exhaust | non-aggressive media | Feder | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with M5 connection | 48.200.00.50.00 | 5 | M5 | 0.2 - 10 | with secondary exhaust | non-aggressive media | Feder | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with M5 connection | 48.200.00.50.10 | 5 | M5 | 0.2 - 10 | without secondary exhaust | non-aggressive media | Feder | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with G1/8 connection | 48.250.00.10.00 | 1 | G1/8 | 0.2 - 10 | with secondary exhaust | non-aggressive media | Feder | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with G1/8 connection | 48.250.00.10.10 | 1 | G1/8 | 0.2 - 10 | without secondary exhaust | non-aggressive media | Feder | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with G1/8 connection | 48.250.00.25.10 | 2.5 | G1/8 | 0.2 - 10 | without secondary exhaust | non-aggressive media | Feder | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with G1/8 connection | 48.250.00.50.00 | 5 | G1/8 | 0.2 - 10 | with secondary exhaust | non-aggressive media | Feder | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with G1/8 connection | 48.250.00.50.10 | 5 | G1/8 | 0.2 - 10 | without secondary exhaust | non-aggressive media | Feder | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|

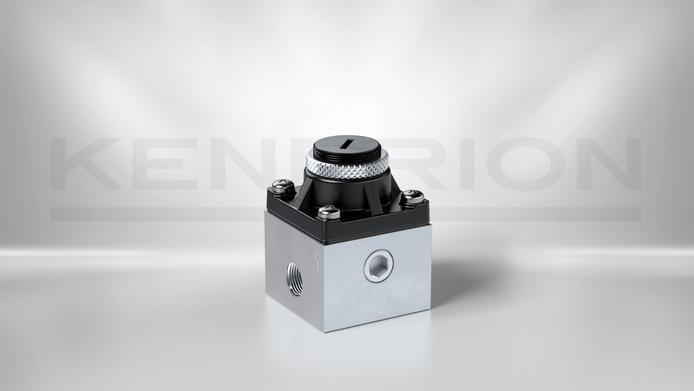

Pressure Regulator with 1/8 NPTF connection | 48.255.50 US | 0.5 | NPTF 1/8" | 0.2 - 6 | without secondary exhaust | non-aggressive media | Feder | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with 1/8 NPTF connection | 48.255.70 US | 1.5 | NPTF 1/8" | 0.2 - 6 | without secondary exhaust | non-aggressive media | Spring | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with 1/8 NPTF connection | 48.255.80 US | 2.5 | NPTF 1/8" | 0.2 - 6 | without secondary exhaust | non-aggressive media | Spring | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|

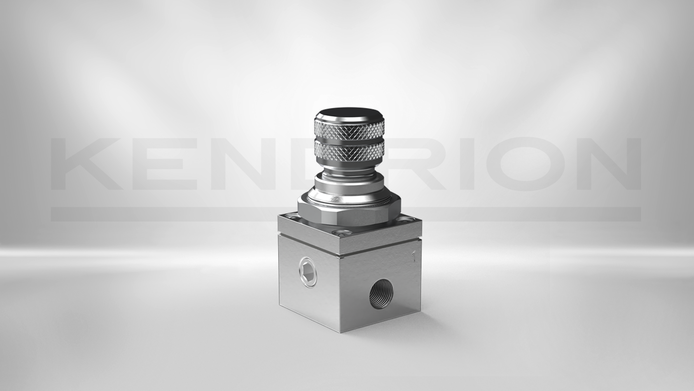

Pressure Regulator with G1/8 connection | 50.780.00.10.00 | 1 | G1/8 | 0.2 - 10 | with secondary exhaust | non-aggressive media | Spring | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with G1/8 connection | 50.780.00.10.10 | 1 | G1/8 | 0.2 - 10 | without secondary exhaust | non-aggressive media | Spring | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with G1/8 connection | 50.780.00.25.00 | 2.5 | G1/8 | 0.2 - 10 | with secondary exhaust | non-aggressive media | Spring | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with G1/8 connection | 50.780.00.25.10 | 2.5 | G1/8 | 0.2 - 10 | without secondary exhaust | non-aggressive media | Spring | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with G1/8 connection | 50.780.00.50.00 | 5 | G1/8 | 0.2 - 10 | with secondary exhaust | non-aggressive media | Spring | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - | |
|
Pressure Regulator with G1/8 connection | 50.780.00.80.00 | 8 | G1/8 | 0.2 - 10 | with secondary exhaust | non-aggressive media | Spring | 0 ... +60 | Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced | - |
