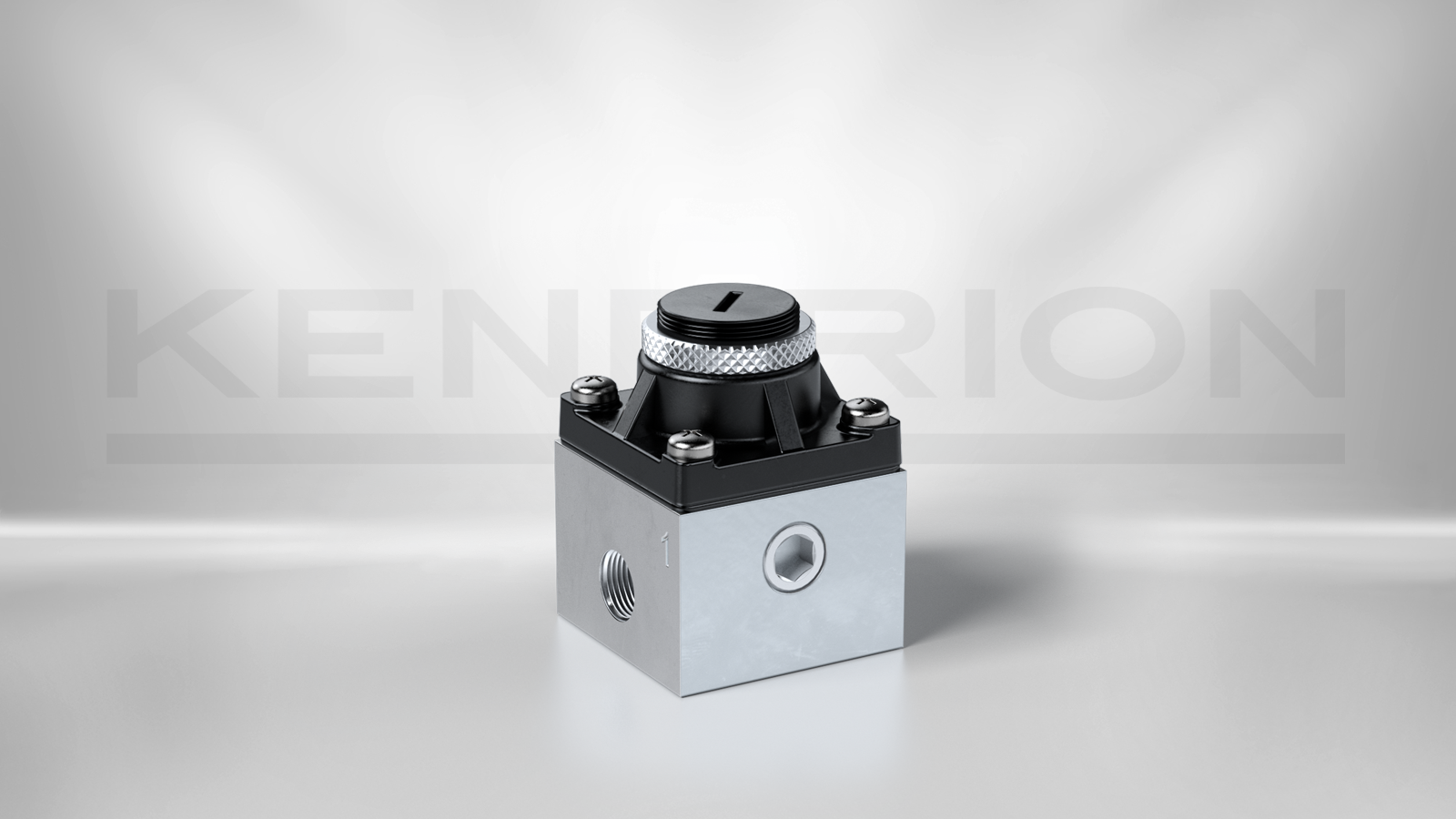

Pressure Regulator with 1/8 NPTF connection

48.255.80 US

These precision pressure regulators can be used in various applications. They convince through their small size, high flow rates and high accuracy. Their modular design allows a cost optimized configuration. High reliability and maintenance free use are ensured for a long lifetime. The pressure setting is done by an adjusting screw. The use of water can be realized with pressure regulator versions without bleeder ports. These pressure regulators are built with a very robust brass housing. Connection is done by 1/8“ NPTF inner thread. On request all pressure regulators can be adapted to different pressure levels or set to a specific output pressure. Seals can be changed from NBR to EPDM or Viton (FKM). Thereby it is easy to adapt the regulators to special media as oxygen (O2) or drinking water (H2O).

Technical details

Description Value
Max. setting pressure 2.5 bar
Type of pneumatic connection NPTF 1/8"
Pressure range 0 - 6 bar
Ventilation without secondary exhaust
Medium non-aggressive media
Returning mechanism Spring
Ambient temperature 0 ... +60 °C
Materials Housing: brass galvanized, nickel-plated / plastic, seal: NBR, fabric-reinforced
