Pilot-operated solenoid valves
Solenoid valve for high flow rates at low electrical power
![](/fileadmin/_processed_/b/a/csm_product-head-pilot-operated-valve-63_13c8c48855.png)
Pilot operated solenoid valves from Kendrion are cost effective and versatile. The solenoid valves are mainly used where high flow rates have to be switched with a low electrical power. The power consumption when regulating air flows of more than 270 l/min is just 1 W. They are a proven solution in single- and double-seat process valves for the liquid handling industry.
On request, the solenoid valves can be offered as completely equipped functional units and with customer-specific adaptations.
Pilot operated solenoid valves from Kendrion were formerly known under the name Kuhnke.
Products
(12)
show results as grid
show results as list
Title
|
Type
ascending
descending
|
Function
ascending
descending
|
Pressure range (bar)
ascending
descending
|
Nominal orifice (mm)
ascending
descending
|
Type of electric connection
ascending
descending
|
Kv-value (l/min)
ascending
descending
|
Size (mm)
ascending
descending
|
Actuation type
ascending
descending
|
Duty cycle (% ED)
ascending
descending
|
Medium
ascending
descending
|
Nominal power (W)
ascending
descending
|
Nominal voltage (V DC)
ascending
descending
|
Nominal current (mA)
ascending
descending
|
Type of pneumatic connection
ascending
descending
|
Returning mechanism
ascending
descending
|
Protection class
ascending
descending
|
Ambient temperature (°C)
ascending
descending
|
Valve type
ascending
descending
|
Materials
ascending
descending
|
Actuation
ascending
descending
|
Manual override
ascending
descending
|
Identification number
ascending
descending
|
Details | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
Solenoid valves, pilot operated Type 63.1V
|
63.150.50V 12VDC | 3/2-way NC | 2-8 | 2.6 | Plug without diode | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 12 | 83 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
![]() |
Solenoid valves, pilot operated Type 63.1V
|
63.161.50 12VDC | 3/2-way NC | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 12 | 83 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Paddle (no tool required) | - | to the product |
![]() |
Solenoid valves, pilot operated Type 63.1V
|
63.153.50V 12VDC | 3/2-way NO | 2-8 | 2.6 | Plug without diode | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 12 | 83 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
![]() |
Solenoid valves, pilot operated Type 63.1V
|
63.150.50V 24VDC | 3/2-way NC | 2-8 | 2.6 | Plug without diode | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 24 | 42 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
![]() |
Solenoid valves, pilot operated Type 63.1V
|
63.153.50V 24VDC | 3/2-way NO | 2-8 | 2.6 | Plug without diode | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 24 | 42 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
![]() |
Solenoid valves, pilot operated Type 63.1V
|

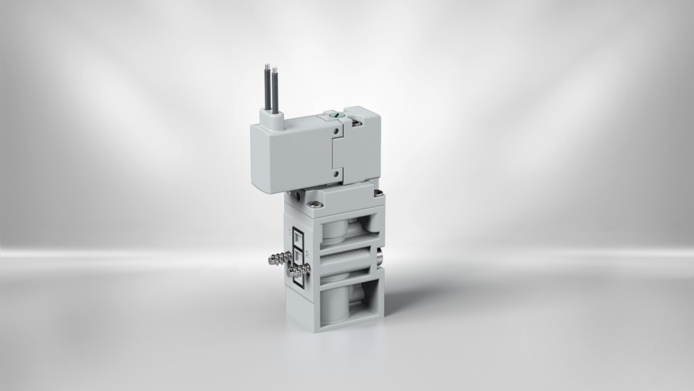

63.160.50V 12VDC | 3/2-way NC | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 12 | 83 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
![]() |
Solenoid valves, pilot operated Type 63.1V
|
63.163.50V 12VDC | 3/2-way NO | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 12 | 83 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
![]() |
Solenoid valves, pilot operated Type 63.1V
|
63.164.50 12VDC | 3/2-way NO | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 12 | 83 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Paddle (no tool required) | - | to the product |
![]() |
Solenoid valves, pilot operated Type 63.1V
|
63.160.50V 24VDC | 3/2-way NC | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 24 | 42 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
![]() |
Solenoid valves, pilot operated Type 63.1V
|
63.161.50 24VDC | 3/2-way NC | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 24 | 42 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Paddle (no tool required) | - | to the product |
![]() |
Solenoid valves, pilot operated Type 63.1V
|
63.163.50V 24VDC | 3/2-way NO | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 24 | 42 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Usable with flat-tip screwdriver | - | to the product |
![]() |
Solenoid valves, pilot operated Type 63.1V
|
63.164.50 24VDC | 3/2-way NO | 2-8 | 2.6 | Wire | 3.2 | 15 | elektrisch betätigt | 100 | Filtered (5 µm), lubricated and non lubricated air | 1.0 | 24 | 42 | Flange | Spring | IP51 | -20... +60 | Poppet valve | Housing PBT, Seal NBR | pilot controlled | Paddle (no tool required) | - | to the product |
