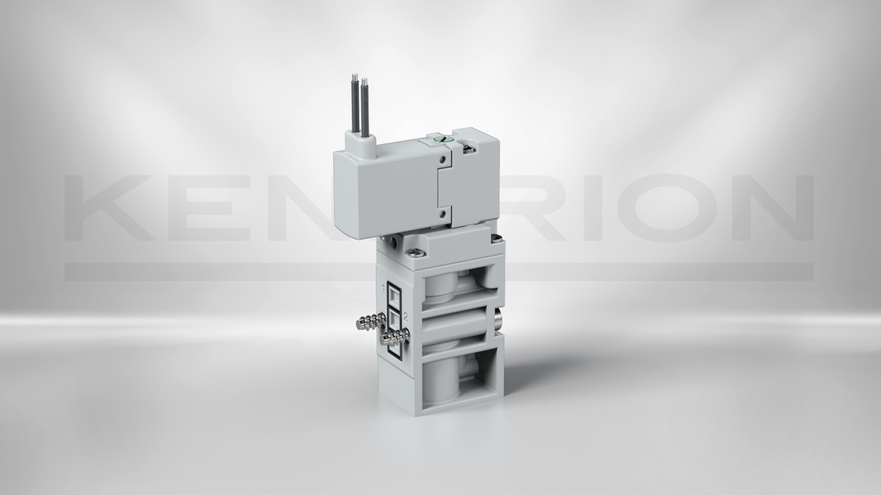

Solenoid valves, pilot operated Type 63.1V

63.150.50V 12VDC

15 mm width, different electrical connection possibilities. Manual override optional, offered as rotary knob to be adjusted via flat-tip screwdriver or as "paddle" for the use without additional tools

Technical details

Description Value
Function 3/2-way NC
Pressure range 2-8 bar
Nominal orifice 2.6 mm
Type of electric connection Plug without diode
Kv-value 3.2 l/min
Size 15 mm
Actuation type elektrisch betätigt
Duty cycle 100 % ED
Medium Filtered (5 µm), lubricated and non lubricated air
Nominal power 1.0 W
Nominal voltage 12 V DC
Nominal current 83 mA
Type of pneumatic connection Flange
Returning mechanism Spring
Protection class IP51
Ambient temperature -20... +60 °C
Valve type Poppet valve
Materials Housing PBT, Seal NBR
Actuation pilot controlled
Manual override Usable with flat-tip screwdriver
