Flat Grippers
Permanent magnetic flat grippers for reliable holding and gripping
Permanent magnetic flat grippers from Kendrion are available in different sizes, materials and designs. They are made of hard ferrite, NdFeB or SmCo, with stainless steel or galvanized housing. Various designs such as threaded bushings, threaded pins and different bores are possible. Due to their design, the flat grippers have only one holding surface. Of all the other surfaces of the gripper magnet body assumes no magnetic force. The permanent magnets are non-aging and have high holding forces.
Special designs for different requirements can be realized on request.
Should malfunctions with long-term temperature, thermal shock stresses or chemical stresses be concerned, please contact us in advance.
Products
(147)
|
Title
|
Type
|
Design
|
Material
|
Force (N)
|
Diameter (mm)
|
Height (mm)
|
Weight (g)
|
Temperature (°C)
|
Housing
|
Total height (mm)
|
Diameter threaded bush (mm)
|
Thread
|
Diameter bore (mm)
|
Diameter counter bore (mm)
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Permanent flat gripper NdFeB | 550 4016 32 | with threaded pin | NdFeB | 350 | 32 | 8 | 48 | 80 | galvanized | 10 | - | M6 | - | - | |
|
|
Permanent flat gripper NdFeB | 550 4016 36 | with threaded pin | NdFeB | 450 | 36 | 8 | 60 | 80 | galvanized | 10 | - | M6 | - | - | |
|
|
Permanent flat gripper NdFeB | 550 4016 42 | with threaded pin | NdFeB | 580 | 42 | 9 | 78 | 80 | galvanized | 11 | - | M6 | - | - | |
|
|
Permanent flat gripper NdFeB | 550 4016 48 | with threaded pin | NdFeB | 800 | 48 | 11 | 94 | 80 | galvanized | 13 | - | M6 | - | - | |
|
|
Permanent flat gripper NdFeB | 550 4016 60 | with threaded pin | NdFeB | 1150 | 60 | 15 | 110 | 80 | galvanized | 15 | - | M8 | - | - | |
|

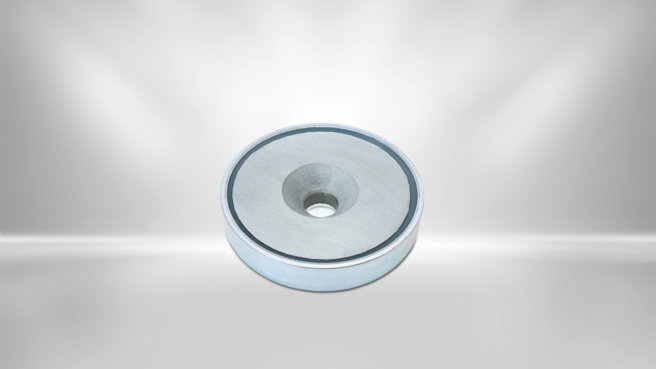

Permanent flat gripper NdFeB | 550 4014 16 | with bore and counter bore | NdFeB | 75 | 16 | 5 | 4 | 80 | galvanized | - | - | - | 3.4 | 6.5 | |
|
|
Permanent flat gripper NdFeB | 550 4014 20 | with bore and counter bore | NdFeB | 105 | 20 | 7 | 12 | 80 | galvanized | - | - | - | 4.5 | 8.6 | |
|
|
Permanent flat gripper NdFeB | 550 4014 25 | with bore and counter bore | NdFeB | 160 | 25 | 8 | 22 | 80 | galvanized | - | - | - | 5.5 | 10.4 | |
|
|
Permanent flat gripper NdFeB | 550 4014 32 | with bore and counter bore | NdFeB | 310 | 32 | 8 | 40 | 80 | galvanized | - | - | - | 5 | 10.4 | |
|
|
Permanent flat gripper NdFeB | 550 4014 42 | with bore and counter bore | NdFeB | 520 | 42 | 9 | 80 | 80 | galvanized | - | - | - | 6.5 | 12 | |
|
|
Permanent flat gripper NdFeB | 550 4014 48 | with bore and counter bore | NdFeB | 660 | 48 | 11.5 | 100 | 80 | galvanized | - | - | - | 8.5 | 16 | |
|
|
Permanent flat gripper NdFeB | 550 4014 60 | with bore and counter bore | NdFeB | 880 | 60 | 15 | 120 | 80 | galvanized | - | - | - | 8.5 | 16 | |
|
|
Permanent flat gripper NdFeB | 550 4014 75 | with bore and counter bore | NdFeB | 1100 | 75 | 15 | 150 | 80 | galvanized | - | - | - | 10.5 | 19 | |
|

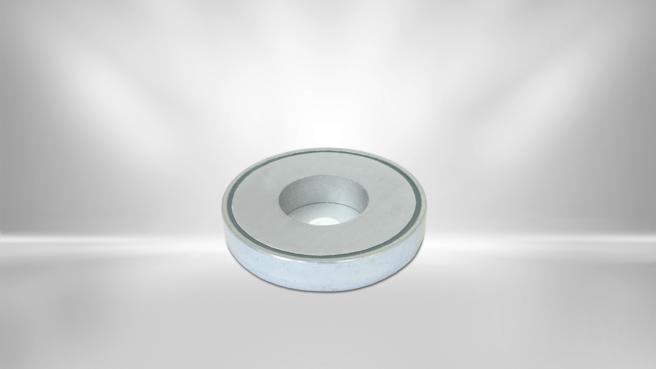

Permanent flat gripper HF | 550 4015 16 | with cylinder-bore | NdFeB | 75 | 16 | 5 | 4 | 80 | galvanized | - | - | - | 6.5 | - | |
|
|
Permanent flat gripper HF | 550 4015 20 | with cylinder-bore | NdFeB | 105 | 20 | 7 | 12 | 80 | galvanized | - | - | - | 8 | - | |
|
|
Permanent flat gripper HF | 550 4015 25 | with cylinder-bore | NdFeB | 160 | 25 | 8 | 22 | 80 | galvanized | - | - | - | 9 | - | |
|
|
Permanent flat gripper HF | 550 4015 32 | with cylinder-bore | NdFeB | 310 | 32 | 8 | 40 | 80 | galvanized | - | - | - | 9 | - | |
|
|
Permanent flat gripper HF | 550 4015 42 | with cylinder-bore | NdFeB | 520 | 42 | 9 | 80 | 80 | galvanized | - | - | - | 11 | - | |
|
|
Permanent flat gripper HF | 550 4015 48 | with cylinder-bore | NdFeB | 660 | 48 | 11.5 | 100 | 80 | galvanized | - | - | - | 15 | - | |
|
|
Permanent flat gripper HF | 550 4015 60 | with cylinder-bore | NdFeB | 880 | 60 | 15 | 120 | 80 | galvanized | - | - | - | 15 | - | |
|
|
Permanent flat gripper HF | 550 4015 75 | with cylinder-bore | NdFeB | 1100 | 75 | 18 | 150 | 80 | galvanized | - | - | - | 18 | - |
