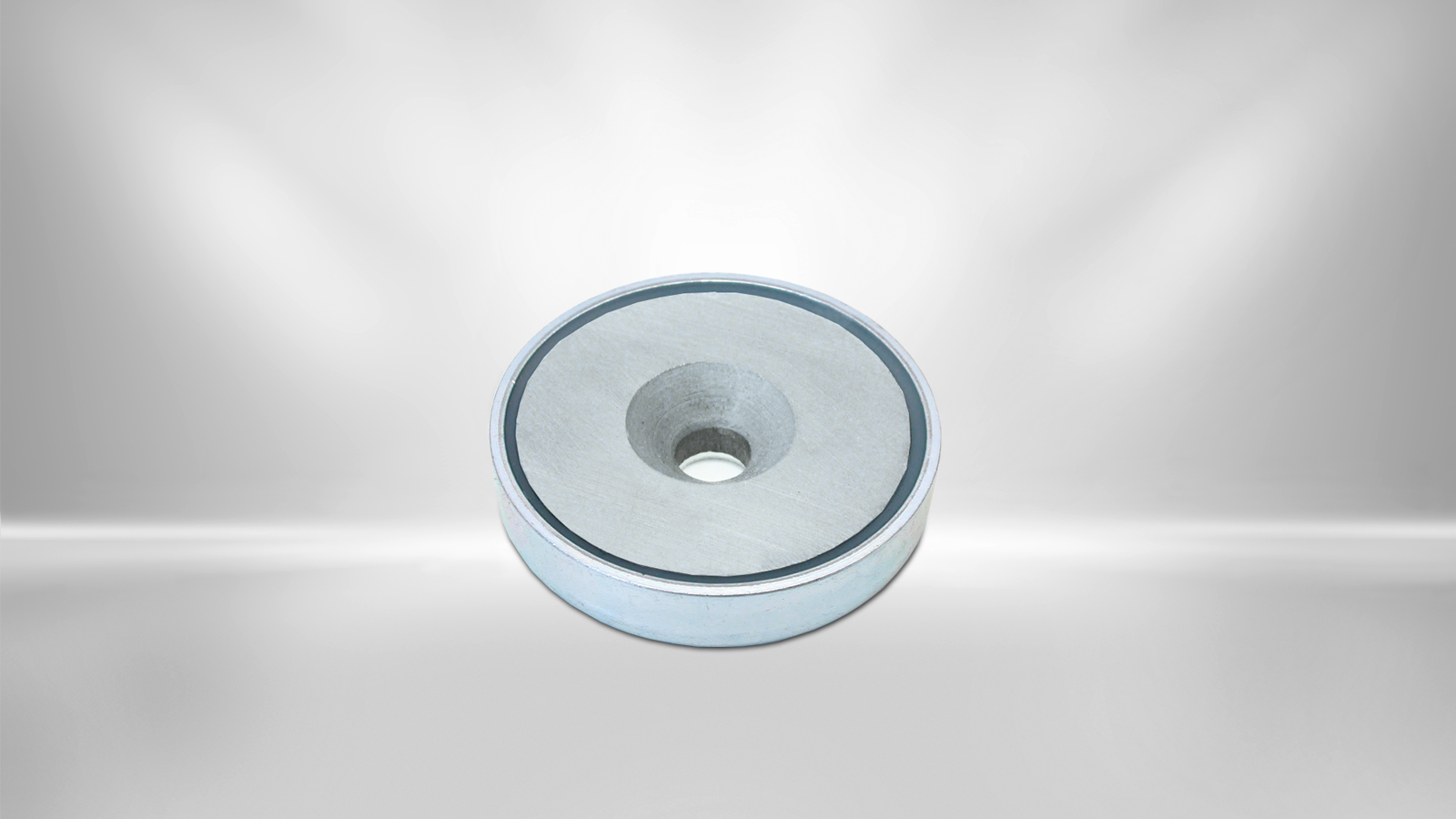

Permanent flat gripper NdFeB
550 4014 60
Flat gripper with a neodymium magnet in a steel pot. The housing increases the adhesive force of the permanent magnet. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The flat gripper has a bore and countersink and can be screwed on with a countersunk screw.
Technical details
| Description | Value |
|---|---|
| Design | with bore and counter bore |
| Material | NdFeB |
| Force | 880 N |
| Diameter | 60 mm |
| Height | 15 mm |
| Diameter bore | 8.5 mm |
| Diameter counter bore | 16 mm |
| Weight | 120 g |
| Temperature | 80 °C |
| Housing | galvanized |
