Direct-operated solenoid valves

Welcome to the KENDRION ProductFinder for direct-operated solenoid valves!

Here you can quickly and easily find what you are looking for. Choose from our wide portfolio of direct-operated solenoid valves. Direct operated solenoid valves from Kendrion achieve high flow rates of liquids and gases with low power consumption and compact design. The solenoid valves are used, among other, in respiratory and anesthesia devices to control oxygen or in dental technology to control air, vacuum and water.

Standard Kendrion solenoid valves consist of several models with different sizes. On request, the standard solenoid valves can be customized.

  • 10mm: 63.0 (bistable valves) and 63.1 series
  • 15mm: 68 series
  • 16mm: 64 series
  • 20mm: 65 series


Want to learn more about how Kendrion direct-operated solenoid valves work and their applications?

visit our product page

Products (146)

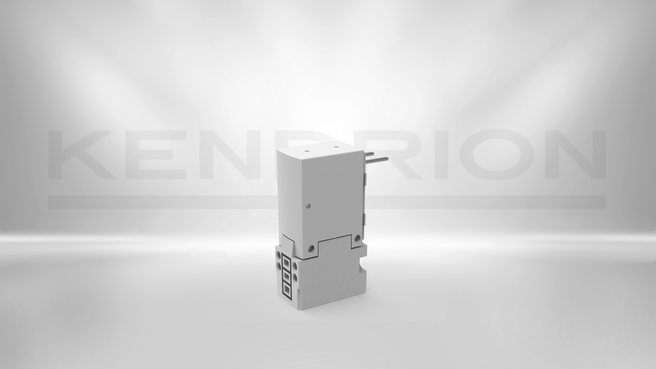

Solenoid Valve Type 63.1

63.120.30

Function 3/2-way NC
Pressure range 0 - 4 bar
Nominal orifice 0.9 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 63.1

63.121.10

Function 3/2-way NO
Type of electric connection Plug with current reduction
Medium Filtered (5 µm), lubricated and non lubricated air
Nominal power 1 W
Go to product

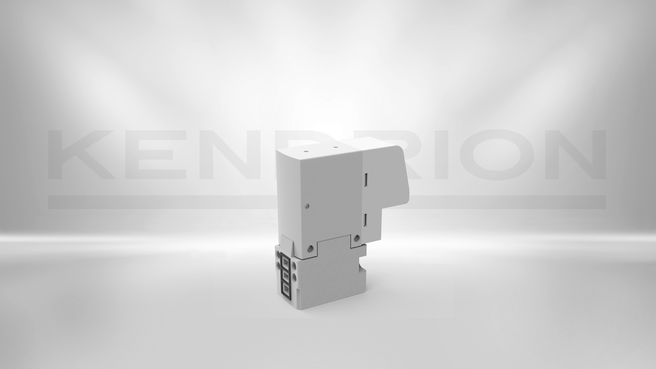

Solenoid Valve Type 63.1

63.122.20

Function 2/2-way NC
Pressure range 0 - 6 bar
Nominal orifice 0.7 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 63.1

63.123.20

Function 2/2-way NO
Medium Filtered (5 µm), lubricated and non lubricated air
Nominal power 1 W
Nominal voltage 24 V DC
Go to product

Solenoid Valve Type 63.1

63.130.10 12V DC

Function 3/2-way NC
Pressure range 0 - 8 bar
Nominal orifice 0.5 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 63.1

63.130.10

Function 3/2-way NC
Nominal voltage 24 V DC
Nominal current 153 mA
Returning mechanism Spring
Go to product

Solenoid Valve Type 63.1

63.130.20 12V DC

Function 3/2-way NC
Nominal voltage 12 V DC
Nominal current 75 mA
Returning mechanism Spring
Go to product

Solenoid Valve Type 63.1

63.130.20

Function 3/2-way NC
Pressure range 0 - 3 bar
Nominal orifice 0.7 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 63.1

63.130.30

Function 3/2-way NC
Nominal voltage 24 V DC
Nominal current 153 mA
Returning mechanism Spring
Go to product

Solenoid Valve Type 63.1

63.131.20

Function 3/2-way NO
Pressure range 0 - 3 bar
Nominal orifice 0.7 mm
Nominal current 153 mA
Go to product

Solenoid Valve Type 63.1

63.132.10

Function 2/2-way NC
Pressure range 0 - 8 bar
Nominal orifice 0.5 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 63.1

63.132.20

Function 2/2-way NC
Pressure range 0 - 3 bar
Nominal orifice 0.7 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 63.1

63.132.21

Function 2/2-way NC
Pressure range 0 - 3 bar
Nominal orifice 0.7 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 63.1

63.133.20

Pressure range 0 - 3 bar
Nominal orifice 0.7 mm
Type of pneumatic connection Flange
Kv-value 0.23 l/min
Go to product

Solenoid Valve Type 63.1

63.134.10

Function 3/2-way NC
Pressure range 0 - 8 bar
Nominal orifice 0.5 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 63.1

63.150.10

Function 3/2-way NC
Pressure range 0 - 8 bar
Nominal orifice 0.5 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 63.1

63.150.20

Function 3/2-way NC
Pressure range 0 - 4.5 bar
Nominal orifice 0.7 mm
Type of pneumatic connection Flange
Go to product

Solenoid Valve Type 63.1

63.150.30

Function 3/2-way NC
Pressure range 0 - 3 bar
Nominal orifice 0.9 mm
Type of pneumatic connection Flange
Go to product

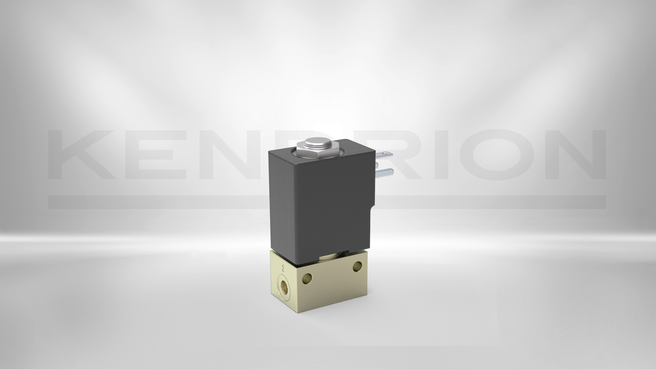

Solenoid Valve Type 64

64.001

Function 3/2-way NC
Pressure range 0 - 8 bar
Nominal orifice 1.0 mm
Type of pneumatic connection M5
Go to product

Solenoid Valve Type 64

64.002

Function 3/2-way NC
Pressure range 0 - 8 bar
Nominal orifice 1.0 mm
Type of pneumatic connection M5
Go to product

Solenoid Valve Type 64

64.008

Function 3/2-way NC
Pressure range 0 - 8 bar
Nominal orifice 1.0 mm
Type of pneumatic connection Flange
Go to product
Title
Type
Function
Pressure range (bar)
Nominal orifice (mm)
Type of pneumatic connection
Kv-value (l/min)
Size (mm)
Actuation type
Duty cycle (% ED)
Type of electric connection
Medium
Nominal power (W)
Nominal voltage (V DC)
Nominal current (mA)
Returning mechanism
Protection class
Ambient temperature (°C)
Valve type
Materials
Actuation
Identification number
Details
Solenoid Valve Type 63.1 63.120.30 3/2-way NC 0 - 4 0.9 Flange 0.33 10 electrically actuated 100 Plug with current reduction Filtered (5 µm), lubricated and non lubricated air 0.5 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 109615
Solenoid Valve Type 63.1 63.121.10 3/2-way NO 0 - 10 0.5 Flange 0.11 10 electrically actuated 100 Plug with current reduction Filtered (5 µm), lubricated and non lubricated air 1 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 151287
Solenoid Valve Type 63.1 63.122.20 2/2-way NC 0 - 6 0.7 Flange 0.23 10 electrically actuated 100 Plug with current reduction Filtered (5 µm), lubricated and non lubricated air 1 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 165529
Solenoid Valve Type 63.1 63.123.20 2/2-way NO 0 - 6 0.7 Flange 0.23 10 electrically actuated 100 Plug with current reduction Filtered (5 µm), lubricated and non lubricated air 1 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 165504
Solenoid Valve Type 63.1 63.130.10 12V DC 3/2-way NC 0 - 8 0.5 Flange 0.11 10 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 1 12 75 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 156967
Solenoid Valve Type 63.1 63.130.10 3/2-way NC 0 - 8 0.5 Flange 0.11 10 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 1 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 105020
Solenoid Valve Type 63.1 63.130.20 12V DC 3/2-way NC 0 - 3 0.7 Flange 0.23 10 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 1 12 75 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 166831
Solenoid Valve Type 63.1 63.130.20 3/2-way NC 0 - 3 0.7 Flange 0.23 10 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 1 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 109609
Solenoid Valve Type 63.1 63.130.30 3/2-way NC 0 - 3 0.9 Flange 0.33 10 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 1 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 109610
Solenoid Valve Type 63.1 63.131.20 3/2-way NO 0 - 3 0.7 Flange 0.23 10 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 1 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 148481
Solenoid Valve Type 63.1 63.132.10 2/2-way NC 0 - 8 0.5 Flange 0.11 10 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 1 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 155032
Solenoid Valve Type 63.1 63.132.20 2/2-way NC 0 - 3 0.7 Flange 0.23 10 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 1.3 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 165343
Solenoid Valve Type 63.1 63.132.21 2/2-way NC 0 - 3 0.7 Flange 0.23 10 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 1 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: FKM directly controlled 168370
Solenoid Valve Type 63.1 63.133.20 2/2-way NO 0 - 3 0.7 Flange 0.23 10 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 1 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 165345
Solenoid Valve Type 63.1 63.134.10 3/2-way NC 0 - 8 0.5 Flange 0.11 10 electrically actuated 100 Plug pins / pins Filtered (5 µm), lubricated and non lubricated air 1 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 148273
Solenoid Valve Type 63.1 63.150.10 3/2-way NC 0 - 8 0.5 Flange 0.11 10 electrically actuated 100 Plug without diode Filtered (5 µm), lubricated and non lubricated air 1 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 150696
Solenoid Valve Type 63.1 63.150.20 3/2-way NC 0 - 4.5 0.7 Flange 0.23 10 electrically actuated 100 Plug without diode Filtered (5 µm), lubricated and non lubricated air 1 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 150789
Solenoid Valve Type 63.1 63.150.30 3/2-way NC 0 - 3 0.9 Flange 0.33 10 electrically actuated 100 Plug without diode Filtered (5 µm), lubricated and non lubricated air 1 24 153 Spring IP65 -10 ... +50 Poppet valve Base: PBT, seal: NBR directly controlled 150791
Solenoid Valve Type 64 64.001 3/2-way NC 0 - 8 1.0 M5 0.45 16 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 4.6 24 - Spring IP65 -10 ... +50 Poppet valve Base: Brass, seal: NBR directly controlled 10191
Solenoid Valve Type 64 64.002 3/2-way NC 0 - 8 1.0 M5 0.45 16 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 5.5 24 - Spring IP65 -10 ... +50 Poppet valve Base: Brass, seal: NBR directly controlled 10192
Solenoid Valve Type 64 64.008 3/2-way NC 0 - 8 1.0 Flange 0.45 16 electrically actuated 100 Plug-in socket Filtered (5 µm), lubricated and non lubricated air 5.5 24 - Spring IP65 -10 ... +50 Poppet valve Base: Brass, seal: NBR directly controlled 71387
