Direct-operated solenoid valves
Welcome to the KENDRION ProductFinder for direct-operated solenoid valves!
Here you can quickly and easily find what you are looking for. Choose from our wide portfolio of direct-operated solenoid valves. Direct operated solenoid valves from Kendrion achieve high flow rates of liquids and gases with low power consumption and compact design. The solenoid valves are used, among other, in respiratory and anesthesia devices to control oxygen or in dental technology to control air, vacuum and water.
Standard Kendrion solenoid valves consist of several models with different sizes. On request, the standard solenoid valves can be customized.
- 10mm: 63.0 (bistable valves) and 63.1 series
- 15mm: 68 series
- 16mm: 64 series
- 20mm: 65 series
Want to learn more about how Kendrion direct-operated solenoid valves work and their applications?
Products
(146)
|
Title
|
Type
|
Function
|
Pressure range (bar)
|
Nominal orifice (mm)
|
Type of pneumatic connection
|
Kv-value (l/min)
|
Size (mm)
|
Actuation type
|
Duty cycle (% ED)
|
Type of electric connection
|
Medium
|
Nominal power (W)
|
Nominal voltage (V DC)
|
Nominal current (mA)
|
Returning mechanism
|
Protection class
|
Ambient temperature (°C)
|
Valve type
|
Materials
|
Actuation
|
Identification number
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Solenoid Valve Type 63.0 | 63.030.10 | 3/2-way NC | 0 - 10 | 0.5 | Flange | 0.11 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 83552 | |
|
Solenoid Valve Type 63.0 | 63.032.30 | 2/2-way NC | 0 - 5 | 0.9 | Flange | 0.33 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 155459 | |
|
Solenoid Valve Type 63.0 | 63.032.31 | 2/2-way NC | 0 - 5 | 0.9 | Flange | 0.33 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: FKM | directly controlled | 169161 | |
|
Solenoid Valve Type 63.0 | 63.030.20 | 3/2-way NC | 0 - 7 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 63319 | |
|
Solenoid Valve Type 63.0 | 63.030.30 12V DC | 3/2-way NC | 0 - 5 | 0.9 | Flange | 0.33 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 12 | 75 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 75874 | |
|
|

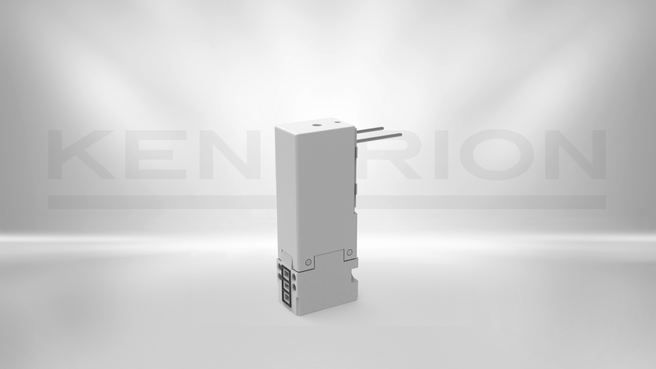

Solenoid Valve Type 63.0 | 63.030.30 | 3/2-way NC | 0 - 5 | 0.9 | Flange | 0.33 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 65668 | |
|
Solenoid Valve Type 63.0 | 63.031.20 | 3/2-way NO | 0 - 7 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 65669 | |
|
Solenoid Valve Type 63.0 | 63.050.10 12V DC | 3/2-way NC | 0 - 10 | 0.5 | Flange | 0.11 | 10 | electrically actuated | 100 | Wire | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 12 | 75 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 67882 | |
|

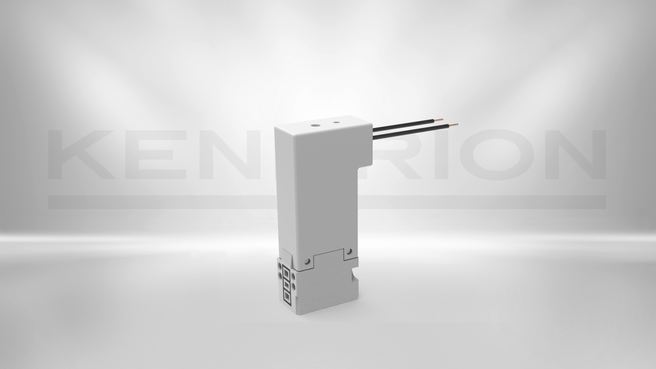

Solenoid Valve Type 63.0 | 63.050.10 | 3/2-way NC | 0 - 10 | 0.5 | Flange | 0.11 | 10 | electrically actuated | 100 | Wire | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 65672 | |
|
Solenoid Valve Type 63.0 | 63.050.20 12V DC | 3/2-way NC | 0 - 7 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Wire | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 12 | 75 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 68609 | |
|
|

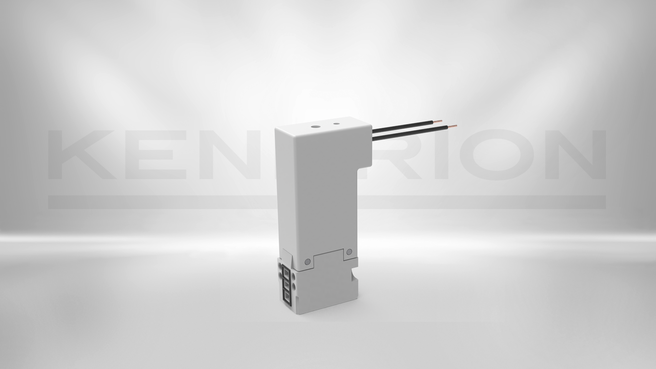

Solenoid Valve Type 63.0 | 63.050.20 | 3/2-way NC | 0 - 7 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Wire | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 63320 | |
|
Solenoid Valve Type 63.0 | 63.050.21 | 3/2-way NC | 0 - 7 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Wire | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: FKM | directly controlled | 90232 | |
|
Solenoid Valve Type 63.0 | 63.050.30 12V DC | 3/2-way NC | 0 - 5 | 0.9 | Flange | 0.33 | 10 | electrically actuated | 100 | Wire | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 12 | 75 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 67390 | |
|
|
Solenoid Valve Type 63.0 | 63.050.30 | 3/2-way NC | 0 - 5 | 0.9 | Flange | 0.33 | 10 | electrically actuated | 100 | Wire | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 65673 | |
|
|
Solenoid Valve Type 63.0 | 63.051.20 | 3/2-way NO | 0 - 7 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Wire | Filtered (5 µm), lubricated and non lubricated air | 1.8 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 65674 | |
|
Solenoid Valve Type 63.1 | 63.110.10 | 3/2-way NC | 0 - 8 | 0.5 | Flange | 0.11 | 10 | electrically actuated | 100 | Plug with diode | Filtered (5 µm), lubricated and non lubricated air | 1 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 109612 | |
|

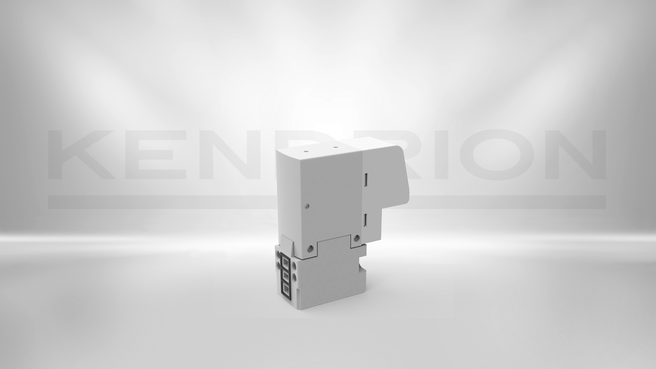

Solenoid Valve Type 63.1 | 63.110.20 | 3/2-way NC | 0 - 4.5 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Plug with diode | Filtered (5 µm), lubricated and non lubricated air | 1 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 109613 | |
|
Solenoid Valve Type 63.1 | 63.110.30 | 3/2-way NC | 0 - 3 | 0.9 | Flange | 0.33 | 10 | electrically actuated | 100 | Plug with diode | Filtered (5 µm), lubricated and non lubricated air | 1 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 109614 | |
|
Solenoid Valve Type 63.1 | 63.114.10 | 3/2-way NC | 0 - 8 | 0.5 | Flange | 0.11 | 10 | electrically actuated | 100 | Plug pins / pins | Filtered (5 µm), lubricated and non lubricated air | 1 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 148270 | |
|
Solenoid Valve Type 63.1 | 63.120.10 | 3/2-way NC | 0 - 10 | 0.5 | Flange | 0.11 | 10 | electrically actuated | 100 | Plug with current reduction | Filtered (5 µm), lubricated and non lubricated air | 1 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 150829 | |
|
Solenoid Valve Type 63.1 | 63.120.20 | 3/2-way NC | 0 - 7 | 0.7 | Flange | 0.23 | 10 | electrically actuated | 100 | Plug with current reduction | Filtered (5 µm), lubricated and non lubricated air | 1 | 24 | 153 | Spring | IP65 | -10 ... +50 | Poppet valve | Base: PBT, seal: NBR | directly controlled | 150607 |
