ATEX solenoids
Explosion-Proof Solenoids

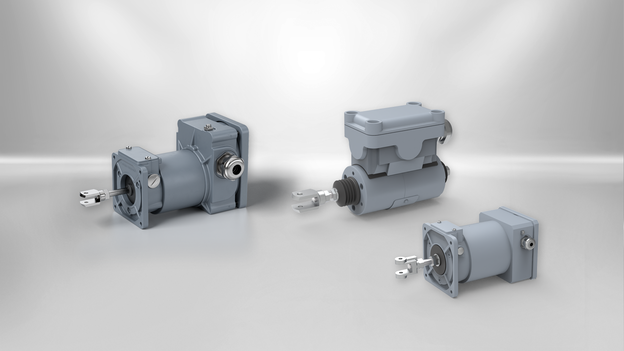

ATEX solenoids from Kendrion consist of a pot magnet and a connection housing made of aluminium, which offers a connection option for the protective conductor in accordance with EN 60079. They are particularly temperature resistant (temperature class T4, up to +135°C ) and meet the Ignition Protection Type "Increased Safety", Ex "e". The solenoids do not assume temperatures above the temperature class of gases that may occur and do not form electrically or mechanically generated sparks. They comply with the European ATEX Directive 2014/34/EU for equipment and protective systems intended for use in potentially explosive atmospheres. High forces, dynamic switching and a long service life characterize ATEX solenoids from Kendrion. The explosion-proof solenoids are mainly used where sparking occurs in potentially explosive atmospheres, such as in mining, refineries or on oil platforms.
|
Title
|
Type
ascending
descending
|
Nominal voltage (V)
ascending
descending
|
Duty cycle (%)
ascending
descending
|
Power consumption (W)
ascending
descending
|
Stroke (mm)
ascending
descending
|
Inital force (N)
ascending
descending
|
End force (N)
ascending
descending
|
Return spring
ascending
descending
|
Dimensions (length,width,height) (mm)
ascending
descending
|
Thermal class
ascending
descending
|
Connection
ascending
descending
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

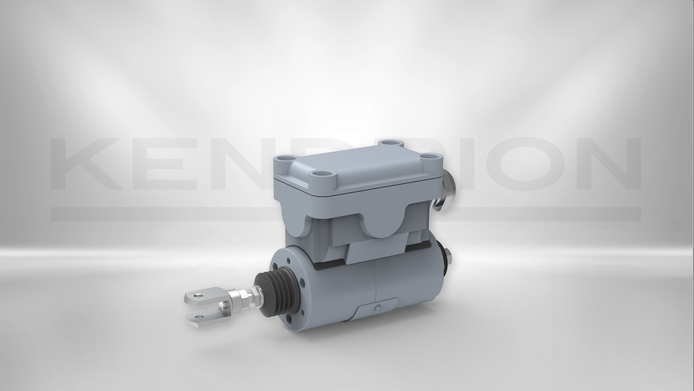

DC stroke solenoid EX06
|
41060020 | 24 | 100 | 21 | 15 | 25 | 55 | no | 122, 62, 62 | B 130 | connection box | to the product |
|
|
Hubmagnet EX06
|
41060020 | 24 | 100 | 21 | 15 | 25 | 55 | nein | B 130 | Anschlussgehaeuse | to the product | |
|

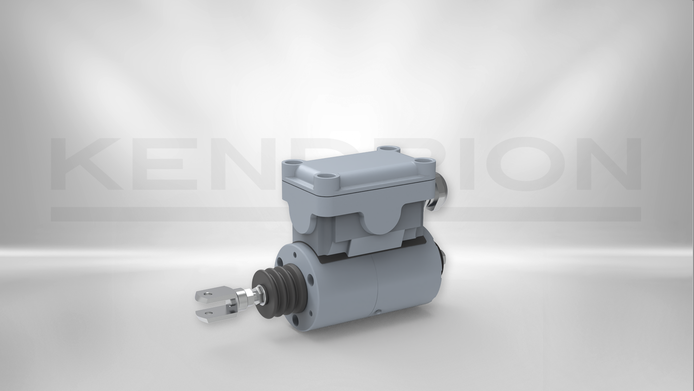

DC stroke solenoid EX07
|
41070068 | 24 | 100 | 25.3 | 20 | 30 | 70 | no | 124, 72, 72 | B 130 | connection box | to the product |
|
|
Hubmagnet EX07
|
41070068 | 24 | 100 | 25.3 | 20 | 30 | 70 | nein | B 130 | Anschlussgehaeuse | to the product | |
|

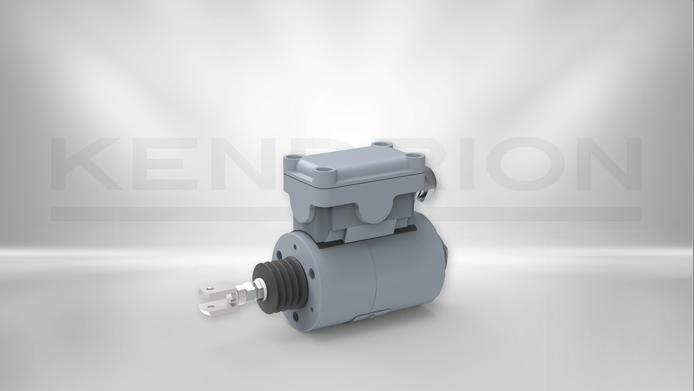

DC stroke solenoid EX09
|
41090068 | 24 | 100 | 32 | 20 | 65 | 170 | no | 135, 88, 88 | F 155 | connection box | to the product |
|
|
Hubmagnet EX09
|
41090068 | 24 | 100 | 32 | 20 | 65 | 170 | nein | F 155 | Anschlussgehaeuse | to the product | |
|

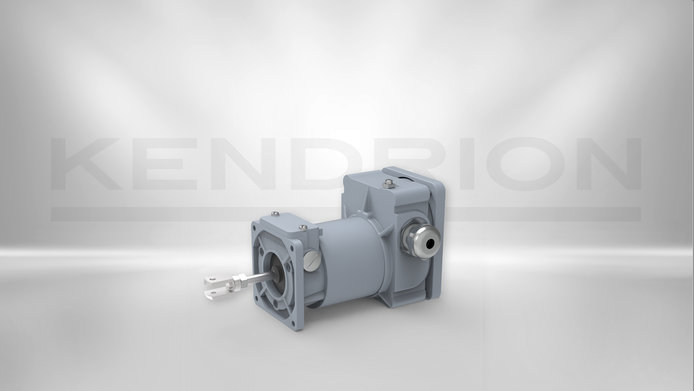

DC stroke solenoid EX10
|
41100027 | 24 | 100 | 49.7 | 25 | 75 | 230 | no | 202, 117, 149 | F 155 | connection box | to the product |
|
|
Hubmagnet EX10
|
41100027 | 24 | 100 | 49.7 | 25 | 75 | 230 | nein | F 155 | Anschlussgehaeuse | to the product | |
|

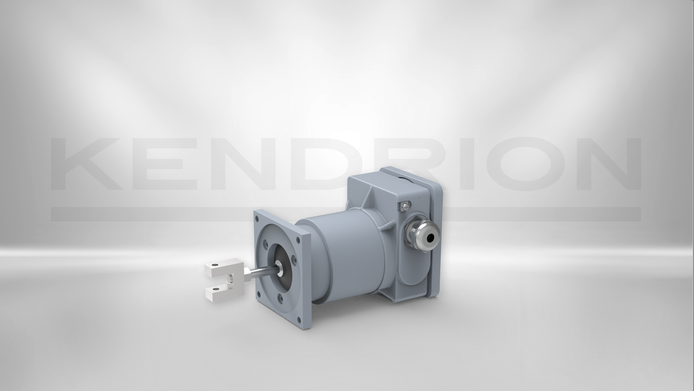

DC stroke solenoid EX11
|
41110141 | 24 | 100 | 39.9 | 30 | 90 | 370 | no | 216, 133, 160 | F 155 | connection box | to the product |
|
|
Hubmagnet EX11
|
41110141 | 24 | 100 | 39.9 | 30 | 90 | 370 | nein | F 155 | Anschlussgehaeuse | to the product | |
|

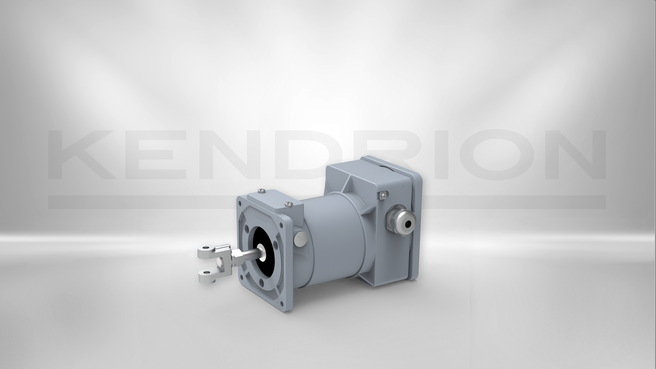

DC stroke solenoid EX13
|
41130214 | 24 | 100 | 56 | 30 | 150 | 375 | no | 251, 152, 180 | F 155 | connection box | to the product |
|
|
Hubmagnet EX13
|
41130214 | 24 | 100 | 56 | 30 | 150 | 375 | nein | F 155 | Anschlussgehaeuse | to the product | |
|

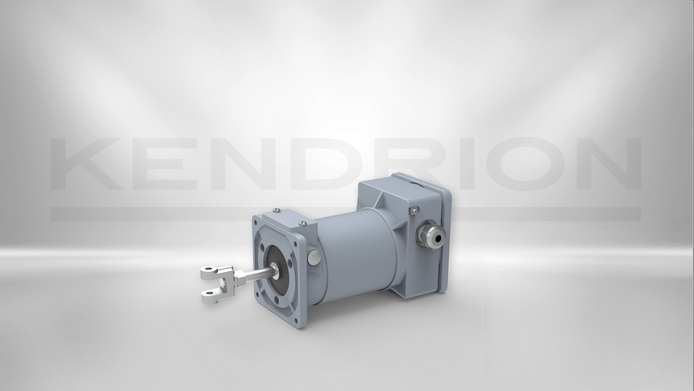

DC stroke solenoid EX14
|
41140057 | 24 | 100 | 77.2 | 40 | 170 | 375 | no | 289, 152, 180 | F 155 | connection box | to the product |
|
|
Hubmagnet EX14
|
41140057 | 24 | 100 | 77.2 | 40 | 170 | 375 | nein | F 155 | Anschlussgehaeuse | to the product | |
|

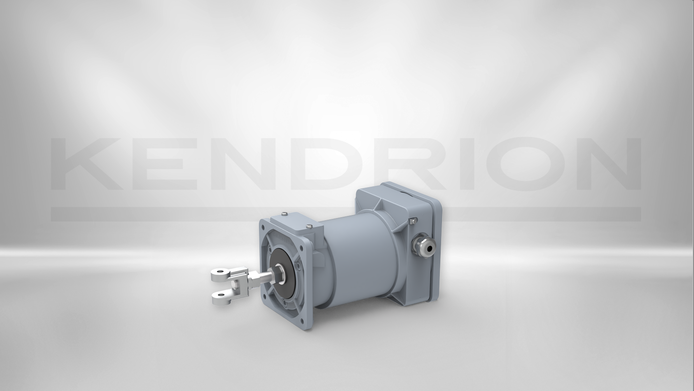

DC stroke solenoid EX16
|
41160017 | 24 | 100 | 83.4 | 50 | 180 | 850 | no | 330, 188, 210 | F 155 | connection box | to the product |
|
|
Hubmagnet EX16
|
41160017 | 24 | 100 | 83.4 | 50 | 180 | 850 | nein | F 155 | Anschlussgehaeuse | to the product | |
|

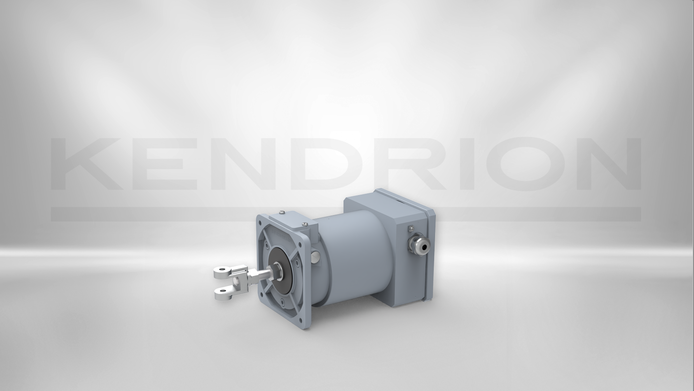

DC stroke solenoid EX18
|
41180007 | 24 | 100 | 106.1 | 50 | 250 | 1100 | no | 344, 205, 205 | F 155 | connection box | to the product |
|
|
Hubmagnet EX18
|
41180007 | 24 | 100 | 106.1 | 50 | 250 | 1100 | nein | F 155 | Anschlussgehaeuse | to the product |
