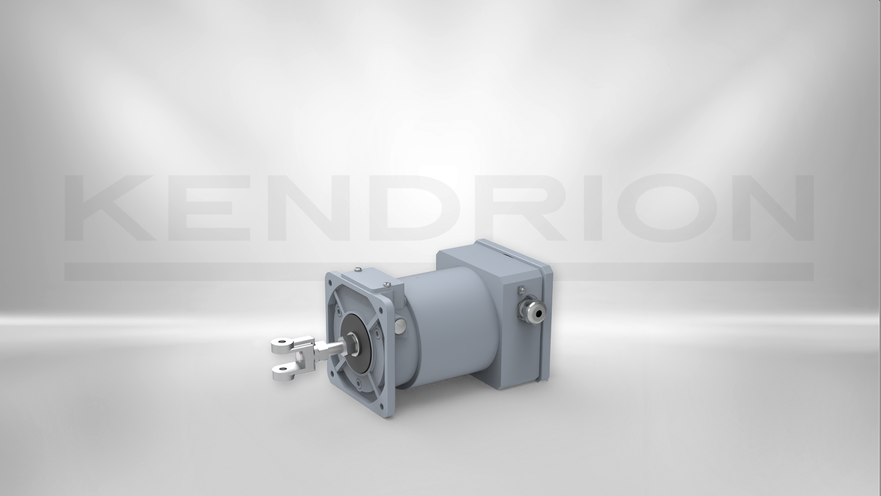

DC stroke solenoid EX18
41180007
Ex-Solenoid with Ignition Protection Type „Increased Safety”, Ex “e”.
The explosion-proof solenoid convince through high forces, dynamic switching and long service life.
It consists of a pot magnet and an aluminium connector housing. According to EN 60079 the connector housing provides a connection for the protective conductor.
The linear solenoid comply with the European ATEX guideline 2014/34/EU for devices and protection systems intended for proper use in explosive areas and can be used in temperature class T4 (up to +135°C).
It is supplied with 24 V DC as standard, other voltages are available on request.
Technical details
| Description | Value |
|---|---|
| Nominal voltage | 24 V |
| Duty cycle | 100 % |
| Power consumption | 106.1 W |
| Stroke | 50 mm |
| Inital force | 250 N |
| End force | 1100 N |
| Return spring | no |
| Dimensions (length,width,height) | 344,205,205 mm |
| Thermal class | F 155 |
| Connection | connection box |
