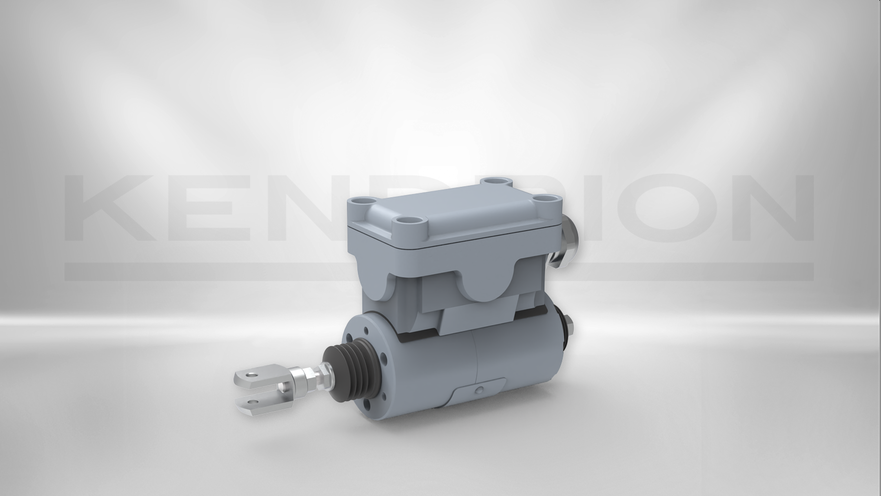

DC stroke solenoid EX06

41060020

Ex-Solenoid EX06 with Ignition Protection Type „Increased Safety”, Ex “e”.
The explosion-proof solenoid convince through high forces, dynamic switching and long service life.
It consists of a pot magnet and an aluminium connector housing. According to EN 60079 the connector housing provides a connection for the protective conductor.

The linear solenoid comply with the European ATEX guideline 2014/34/EU for devices and protection systems intended for proper use in explosive areas and can be used in temperature class T4 (up to +135°C).

It is supplied with 24 V DC as standard, other voltages are available on request.

Technical details

Description Value
Nominal voltage 24 V
Duty cycle 100 %
Power consumption 21 W
Stroke 15 mm
Inital force 25 N
End force 55 N
Return spring no
Dimensions (length,width,height) 122,62,62 mm
Thermal class B 130
Connection connection box
