Kendrion – Your partner for reliable solutions in anaesthesia and respiration technology.
At Kendrion, we offer precise and oxygen-compatible components that have been specially developed for the requirements of anaesthesia and respiration technology. Our pneumatics and fluid control products impress with their ability to mix and meter gases precisely, and ensure maximum safety and efficiency in patient care. Trust in our reliable solutions, which are used in numerous applications in the field of anaesthesia and ventilation.
Bistable solenoid valve for maximum safety in anesthesia
The bistable solenoid valve from Kendrion is used in anesthesia machines for the energy-efficient and quiet switching of medical oxygen. The BI 63.0 impresses with a flow rate of up to 40 Nl/min and a power-saving operation in which only a short current pulse is needed to switch the 2/2 or 3/2-way valve.
Advantages
- Latching design
- EPDM seal
- Quiet switching
To the bistable solenoid valves
Pressure regulators for optimal functional safety in respirators
With the Pure Flow Line pressure regulators, Kendrion offers reliable devices that meet the strict requirements for the use of medical gases. The pressure regulators deliver a precise outlet pressure within a pressure range of 0 to 10 bar, thus enabling optimal functioning of downstream pneumatic components.
Advantages
- Compact design (30 x 30 mm)
- Carefully selected elastomers and plastics
- Mechanically adjustable
Precise solenoid assembly for oxygen sensor
Patient safety is the top priority in respiratory technology. Kendrion's innovative magnetic assembly uses paramagnetic measurement technology to precisely and reliably monitor inspiratory and expiratory oxygen concentrations. Two specially developed electromagnets generate a switchable magnetic field that enables the exact determination of the oxygen concentration by thermal conductivity measurement. This solution ensures that the oxygen measurement meets the highest safety standards.
Advantages:
Robust design
Precise magnetic field
Long service life
Oxygen control unit for pediatrics in application
This combination of pressure regulator and solenoid valve controls the oxygen supply in an incubator for premature infants in pediatrics. The unit and its connection periphery are perfectly integrated in the incubator and guarantee the respiration air supply within defined limits. The focus of this customer-specific development was combining the special requirements concerning NIST screw connection and ventilation via “muffler“ with the regulator-valve combination in a particularly small and space-saving design.
Advantages
Physiologically harmless materials
Integrated filter elements
Sensitive membrane regulator

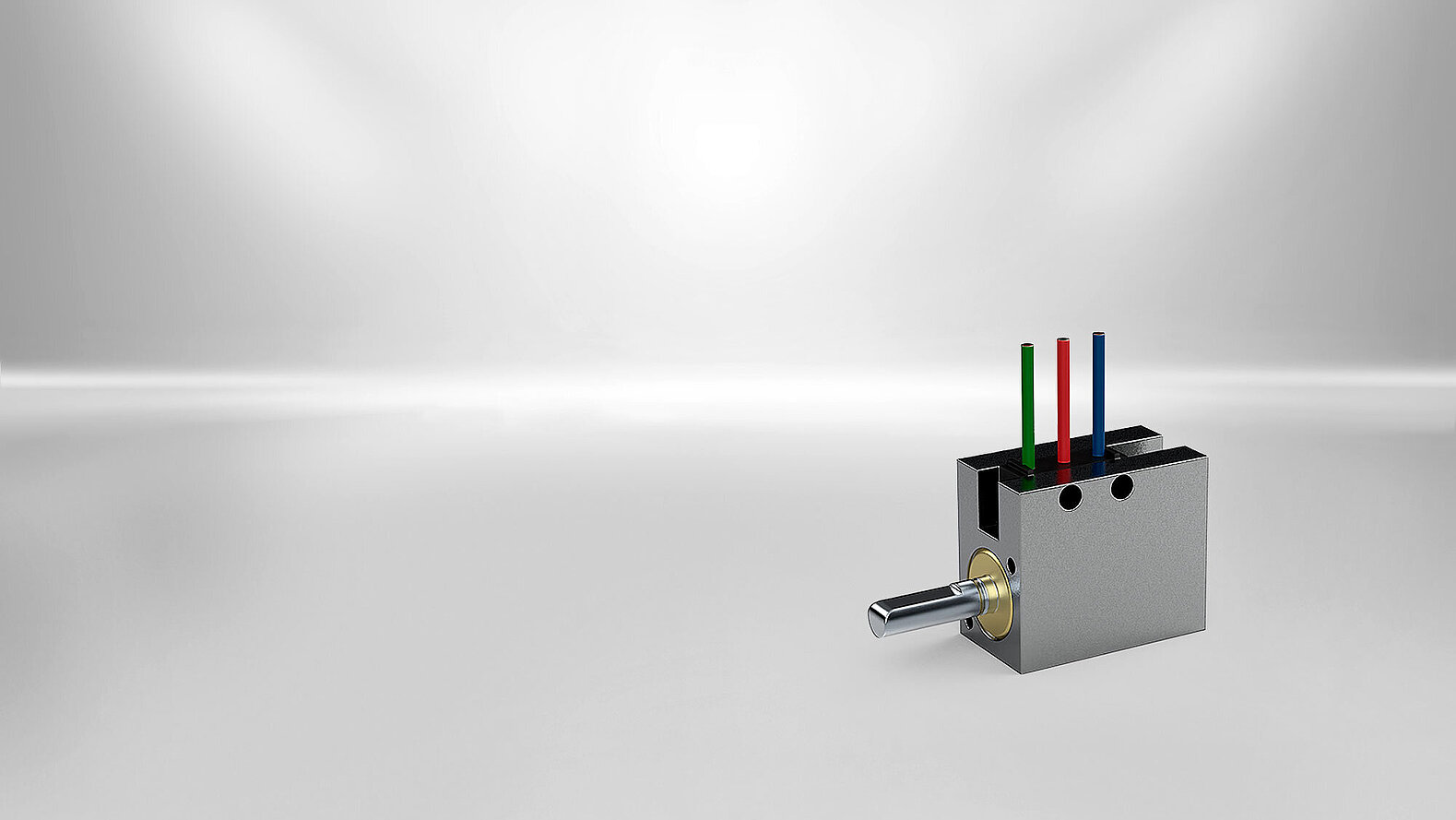

Flow regulator for manually dosing oxygen in anesthetic devices
This specially developed throttle valve controls the oxygen supply to the respiratory mask of an anesthetic device. In case the control electronics of the device fails, the anesthetist can intervene manually to guarantee the patient’s respiration air supply. The flow is between 0 and 12 l/min depending on the rotation angle of 0° to 270°. A micro switch indicates that the unit is active. Not only has this customer-specific development been realized in a particularly small design. The position monitoring of the regulator via micro switch is an especially innovative solution in this application too.
Product features:
- UL listed materials
- Including electric signal output
- Self-inhibiting shaft for mobile use
Oxygen-valve for dosage in anesthetic devices
In emergency medicine it is sometimes necessary to control oxygen flow to the patient by hand during the anesthesia process. The inhaled gas for the mask will be enriched with oxygen within the device. For this “O2 flush function” a manual 2/2 way valve was provided with two micro switches which indicate the switching status to both controller and user shortly before the valve opens. This customized development was realised in compact size. Particularly the use of standard push buttons or selectors made a comprehensively tolerance optimized design necessary.
Product features:
Oxygen appropriate materials
Electric signal output included
Standard selector with special adapter
