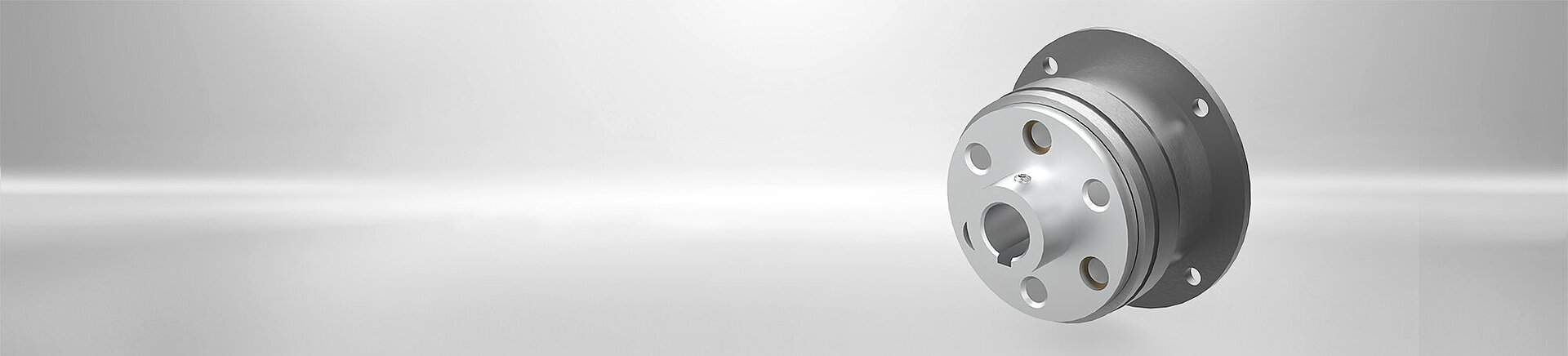

Our INTORQ 14.110

Electromagnetic clutches and brakes are used wherever moving masses have to be driven or decelerated as quickly as possible. Our wide range of products covers a wide variety of requirements. All clutches and brakes can be used in any installation position and require hardly any maintenance. All variants are powerful and operate with all-round safety and reliability. They feature short operating times, low inertia torques and ventilation that is free of residual torque.



Features at a glance

  • 5 sizes
  • Different types of armatures
  • Tailor-made designs

Technical Details

Description Value
Nominal torque range 0,3 Nm to 3,6 Nm
Standard rated voltage 24V
Type Electromagnetically engaged
Protection class IP 00
Versions 14.100.—111 & 113 flange mounted clutch
  14.100.—301 & 303 shaft mounted clutch

Downloads

Need more information?

Operating instruction | INTORQ 14.110
pdf - 642 KB
