Rod grippers
Compact rod grippers with high holding forces
Kendrion offers permanent magnetic rod grippers in various sizes, materials and designs. They are made of AlNiCo, NdFeB and SmCo with housings of brass or steel. The rod grippers feature a high holding force with compact size and are used in many applications of different fields.
Special designs for different requirements can be realized on request.
Products
(91)
|
Title
|
Type
|
Design
|
Material
|
Force (N)
|
Height (mm)
|
Weight (g)
|
Temperature (°C)
|
Thread
|
Housing
|
Shortened to (mm)
|
Fitting Tolerance
|
Measure "D" (mm)
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Rod gripper NdFeB | 550 4025 16 | without thread | NdFeB | 90 | 20 | 31 | 80 | - | steel | 15 | - | - | |
|
|
Rod gripper NdFeB | 550 4025 20 | without thread | NdFeB | 135 | 25 | 61 | 80 | - | steel | 18 | - | - | |
|
|
Rod gripper NdFeB | 550 4025 25 | without thread | NdFeB | 190 | 35 | 133 | 80 | - | steel | 27 | - | - | |
|
|
Rod gripper NdFeB | 550 4025 32 | without thread | NdFeB | 340 | 40 | 249 | 80 | - | steel | 32 | - | - | |
|
|
Rod gripper NdFeB | 550 4028 06 | without thread | NdFeB | 6 | 10 | 2 | 80 | - | steel | 5 | h6 | - | |
|
|
Rod gripper NdFeB | 550 4028 08 | without thread | NdFeB | 12 | 12 | 5 | 80 | - | steel | 7 | h6 | - | |
|
|
Rod gripper NdFeB | 550 4028 10 | without thread | NdFeB | 24 | 16 | 10 | 80 | - | steel | 11 | h6 | - | |
|
|
Rod gripper NdFeB | 550 4028 13 | without thread | NdFeB | 60 | 18 | 18 | 80 | - | steel | 13 | h6 | - | |
|
|
Rod gripper NdFeB | 550 4028 16 | without thread | NdFeB | 90 | 20 | 31 | 80 | - | steel | 15 | h6 | - | |
|
|
Rod gripper NdFeB | 550 4028 20 | without thread | NdFeB | 135 | 25 | 61 | 80 | - | steel | 18 | h6 | - | |
|
|
Rod gripper NdFeB | 550 4028 25 | without thread | NdFeB | 190 | 35 | 114 | 80 | - | steel | 22 | h6 | - | |
|
|
Rod gripper NdFeB | 550 4028 32 | without thread | NdFeB | 340 | 40 | 217 | 80 | - | steel | 27 | h6 | - | |
|

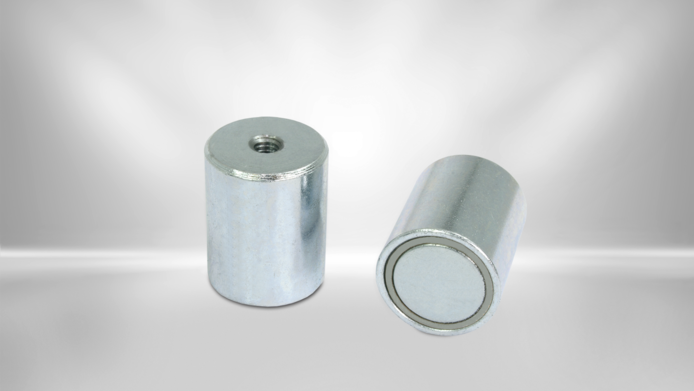

Rod gripper NdFeB | 550 4027 06 | with internal thread | NdFeB | 6 | 20 | 4 | 80 | M3 x 5 | steel | - | - | - | |
|
|
Rod gripper NdFeB | 550 4027 08 | with internal thread | NdFeB | 12 | 20 | 7.5 | 80 | M3 x 5 | steel | - | - | - | |
|
|
Rod gripper NdFeB | 550 4027 10 | with internal thread | NdFeB | 24 | 20 | 11 | 80 | M4 x 7 | steel | - | - | - | |
|
|
Rod gripper NdFeB | 550 4027 13 | with internal thread | NdFeB | 60 | 20 | 20 | 80 | M4 x 7 | steel | - | - | - | |
|
|
Rod gripper NdFeB | 550 4027 16 | with internal thread | NdFeB | 90 | 20 | 30 | 80 | M4 x 7 | steel | - | - | - | |
|
|
Rod gripper NdFeB | 550 4027 20 | with internal thread | NdFeB | 135 | 25 | 58 | 80 | M6 x 9 | steel | - | - | - | |
|
|
Rod gripper NdFeB | 550 4027 25 | with internal thread | NdFeB | 190 | 35 | 131 | 80 | M6 x 9 | steel | - | - | - | |
|
|
Rod gripper NdFeB | 550 4027 32 | with internal thread | NdFeB | 340 | 40 | 243 | 80 | M8 x 12 | steel | - | - | - | |
|
|
Rod gripper NdFeB | 550 4027 40 | with internal thread | NdFeB | 700 | 50 | 480 | 80 | M8 x 12 | steel | - | - | - |
