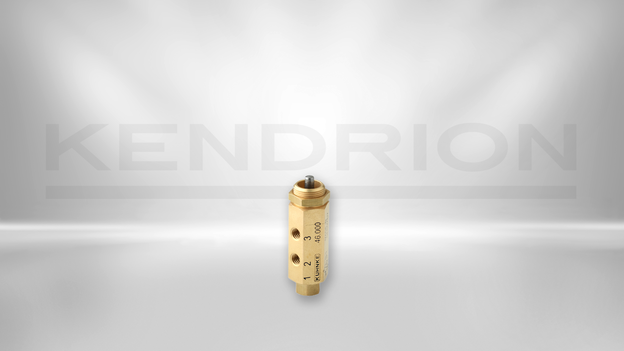

Mechanically Actuated Valve Type 46

46.000

Because of its hexagonal shape, this 3/2 way NC valve requires only a minimum of space.

Technical details

Description Value
Function 3/2-way NC
Pressure range 0 - 12 bar
Nominal orifice 2 mm
Kv-value 1.65 l/min
Actuation type mechanically actuated, plunger
Stroke 2 mm
Medium Filtered (5 µm), lubricated and non lubricated air
Type of pneumatic connection M5
Returning mechanism Spring
Ambient temperature -10 ... +70 °C
Valve type Poppet valve
Materials Housing: brass, plunger: CrNi steel (corrosion-resistant), seal: NBR (oil-resistant)
Actuation directly controlled
Accessories Mounting flange (order no. 43.010-1), mounting bracket (oder no. 43.010-2)
Identification number 12123
