Rotary Solenoid BSM043

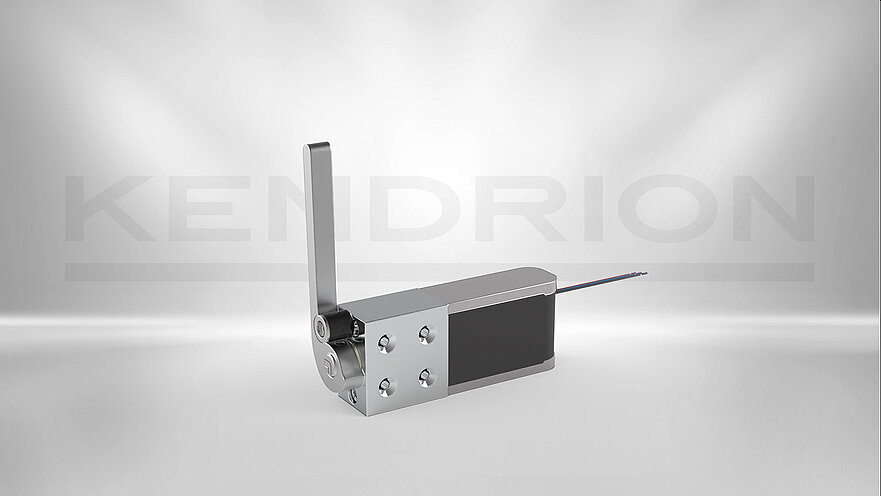

BSM043.000001 - metal housing
The BDM043 bistable rotary magnet has been specially designed as a perfect solution for safe storage and retrieval as well as transport of goods. The assembly consists of a rotary magnet with a 90° angle of rotation, to the axis of which an aluminum slider is attached. The BSM is available as a counterclockwise version (BSM043.000001) or as a clockwise version (BSM043.000002).
Want to learn more about how the BSM043 work and it's application in shuttle systems?
Technical details
| Description | Value |
|---|---|
| Design | bistable |
| Rotation angle | 90° |
| Return mechanism | Electrical |
| Duty cycle | 100 % |
| Housing type | Rectangular |
| Nominal voltage | 24 V |
| Power consumption | 10 W |
| Thermal class | B 130° C |
| Connection | Leads 10 cm |
| Dimensions | 43 x 26 mm / Length 117 mm |
