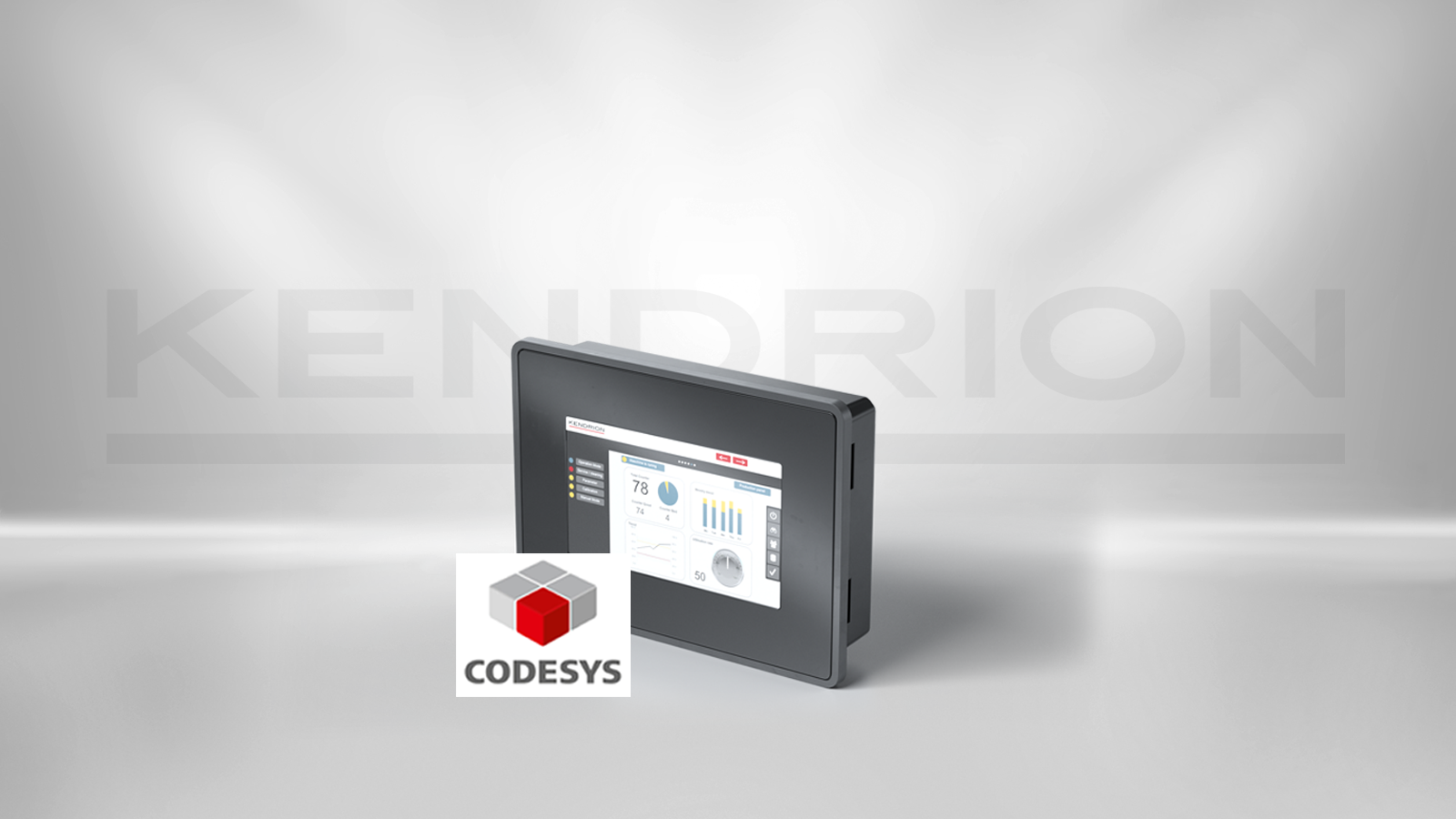

Kuhnke Vico 404
CODESYS PLC

677 800 06

The new Kuhnke Vico 04 series is a powerful display unit with an industrial design and enables modern operating concepts. The installed CODESYS PLC software package offers the possibility to use control functions in addition to visualisation. The visualisation is developed together with the PLC application in the free CODESYS Development System. The device communicates with the external fieldbus components via EtherCAT, OPC UA and Modbus.

The Kuhnke Vico 04 series is based on a powerful ARM Cortex-A8 processor combined with a resistive touch display. All components are robust and have long-term availability.

  • widescreen display with LED backlight
  • Industrial construction
  • Visualisation and Control with CODESYS V3
  • Programming via WLAN prepared

Technical details

Description Value
Configuration Control panel with CODESYS PLC
Function HMI with control function
Model Panel mounted device
Product status Standard product
Display 4.3" wide
Resolution 480 x 272 (PSP)
Processor ARM Cortex-A8 - 1 GHz
Operating system Linux
Software CODESYS V3 Soft PLC, TargetVisu, WebVisu
Main memory 512
Non-volatile memory Flash
Data memory Flash
Drive Flash disc 4 GB
Interfaces 1 x Ethernet 10/100Mbit, 1 x RS-232, 1 x USB 2.0 host, max 500 mA
Field bus interfaces Modbus RTU, Modbus TCP, EtherCAT, OPC UA
Housing material plastic body with black, seamless film cover
Dimensions (W x H x D) 107 x 147 x 34 mm
Supply voltage 24 VDC / (10 VDC … 32 VDC)
Temperature range 0 ... +50°C
Certifications CE, cULus
