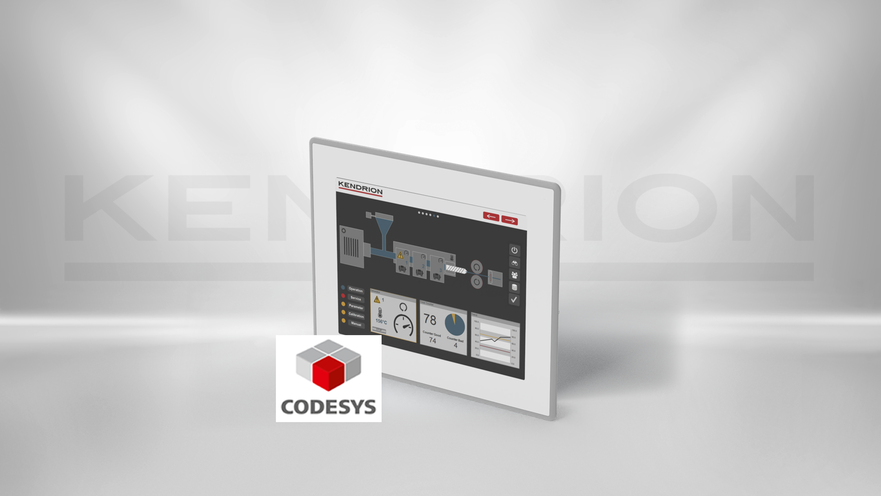

Scout 1026
CODESYS PLC

640 210 109 XXX 400

With an EtherCAT master and two additional CANopen interfaces the new CODESYS control Scout from Kendrion can be used as a HMI and control unit. The simple CODESYS V3 programming ensures an efficient engineering. Furthermore, Scout has optionally 4 digital inputs and outputs. The embedded system is based on a scalable single or multicore i.MX6 processor technology combined with a 7” to 12,1” TFT touch display.
All components are robust and long-term available. Whether standard or customized the all in one solution is the better alternative in many devices and compact machines.

The Scout series can be equipped with different software packages, please contact us for an individual offer.

  • Fanless i.MX6 processor technology
  • Industry standard interfaces
  • Front with seamless film cover
  • CODESYS V3, real-time clock

Technical details

Description Value
Configuration CODESYS panel PLC
Function Touch Panel PLC
Model Panel mounted device
Product status Standard product
Display 10.4"
Resolution 800 x 600 (SVGA)
Processor CPU Freescale i.MX6X Quadcore ; 1 GHz
Operating system Linux RT
Software CODESYS V3 Soft PLC, TargetVisu, WebVisu, Softmotion, SoftMotion CNC+Robotics
Main memory 1024 MB RAM
Non-volatile memory 128 kB
Data memory Flash disk 256 MB, 1 GB pSCL eMMC
Drive SD card
Interfaces 2 x Ethernet 10/100/1000 MBit, 1 x RS-232, 1 x RS-485 galvanically isolated, 1 x CAN, 1 x CAN galvanically isolated, 2 x USB 2.0 host
Field bus interfaces 2 x CANopen, Modbus RTU, Modbus TCP, EtherCAT, OPC UA
Status indication Power LED in the front, 4 x status on the back
Housing material Aluminium with seamless film cover
Dimensions (W x H x D) 280 x 232 x 53 mm
Supply voltage 24 V DC (± 20%)
Temperature range 0 ... +55°C
Certifications CE
