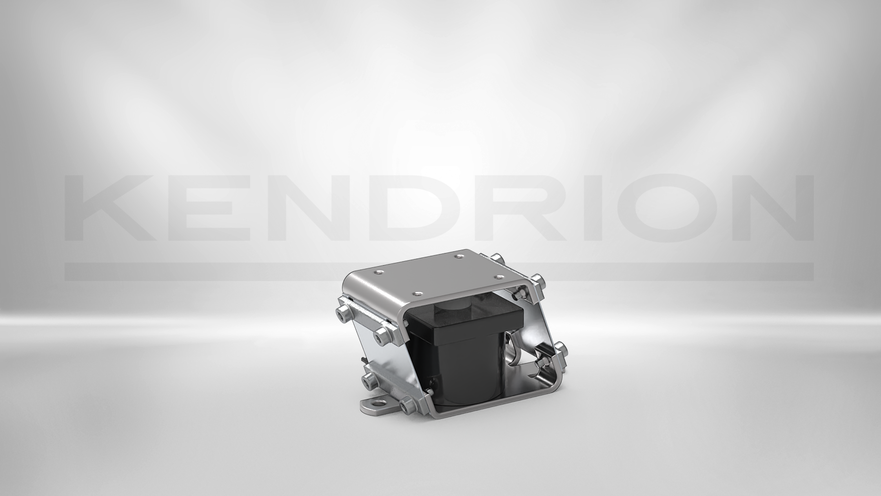

Vibratory Feeder Drive OMW516001
24040003
OMW vibratory feeder drivesare ready-to-install vibration drives consisting of a magnetic and spring-mass system that generate directed linear oscillations. The magnet body with excitation winding is mounted on a base, above which sits the armature plate separated by an air gap. Both are connected by inclined leaf springs. When an alternating voltage is applied, a magnetic alternating field attracts the armature plate in sync with the supply frequency, producing an arc-shaped oscillation.
Technical details
| Description | Value |
|---|---|
| Nominal voltage | 230 V |
| Apparent Power | 14 VA |
| Nominal air gap | 1.3 mm |
| Oscillating frequency | 3000 rpm |
| Thermal class | F 155 |
| Connection | Leads, 1000 mm |
| Load weight | 0.52 |
| Area of application | Material feeding and transport – complete system (OMW) |
