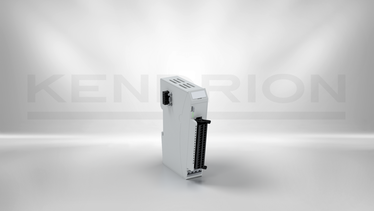

Kuhnke FIO
DI16 1ms 2-wire GI
694 451 44
The digital Kuhnke FIO I/O modules analyse the input signals of the automation device galvanically separated from the process level. The Kuhnke FIO DI16 GI offers 16 channel-wise potential-separated inputs with an input delay of 1ms. The dielectric strength of the inputs with respect to each other is 500 V. The signal state of each channel is indicated by LEDs. The generation of a variant that supports distributed clocks is possible on request.
- 16 digital inputs isolated from each other for 24 VDC with input filter 1 ms
- Dielectric strength 500 V
- Two-wire connection
- Status display locally assigned to the terminal point
- Connection via female connector with PUSH-IN spring connection
Technical details
| Description | Value |
|---|---|
| Function | Digital IN 2-wire |
| Model | Control cabinet modul |
| Digital I/Os (integrated) | Inputs: 16DI channel-wise electrically isolated 500 V 1ms |
| Product status | Standard product |
| Field bus interfaces | EtherCAT |
| Type of connection | female plug with PUSH IN spring connection, 2-wire connection |
| Status indication | LEDs allocated to the point of termination |
| Housing material | Aluminium frame, plastic housing |
| Dimensions (W x H x D) | 25 x 120 x 90 mm |
| IP-Protection Class | IP 20 |
| Supply voltage | 24 V DC (-15% ... +20%) |
| Operating temperature | 0 ... +55°C |
| Immunity | Zone B according to EN 61131-2 |
| Certifications | CE, UL |
