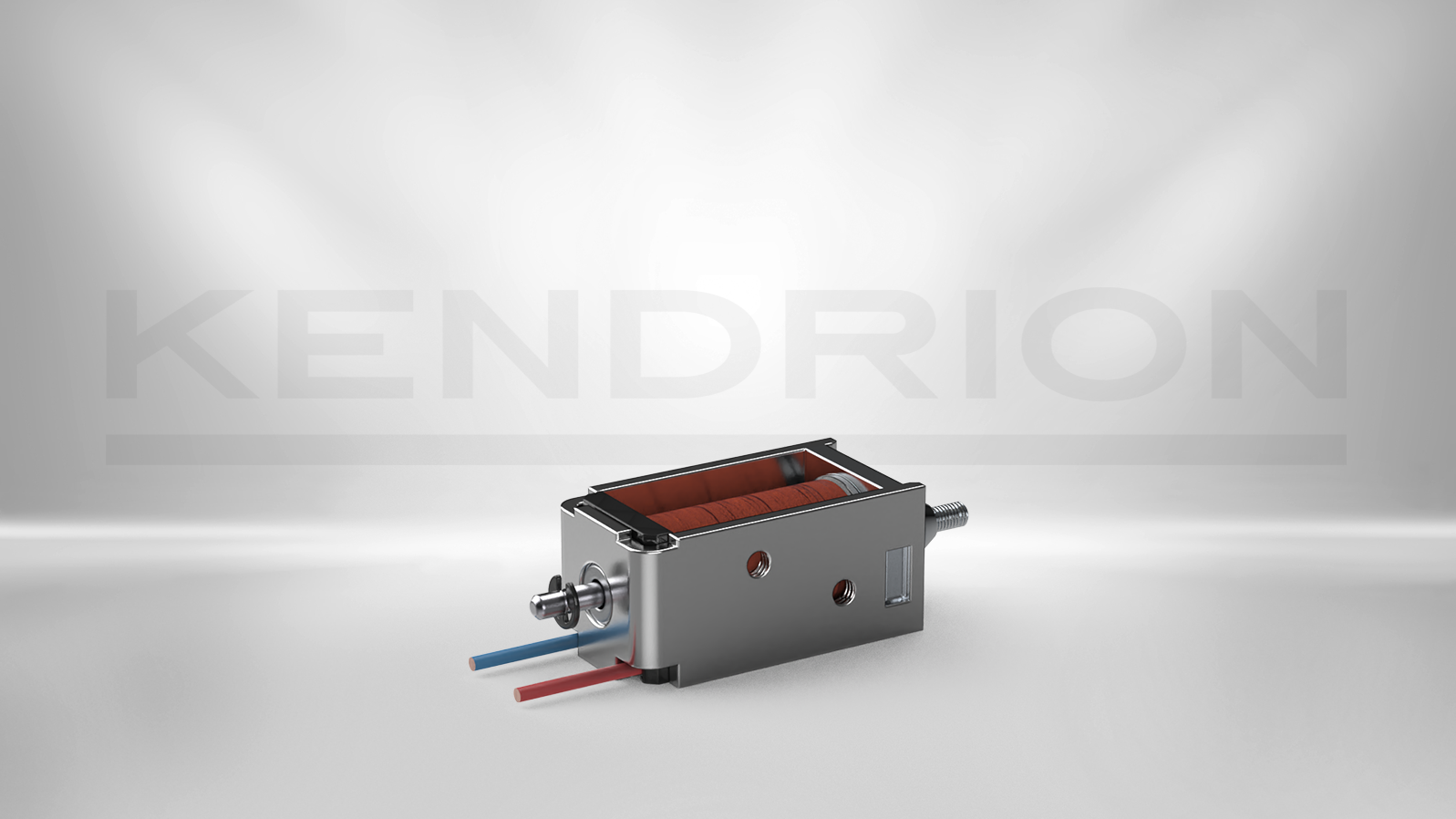

Linear Solenoid H09
H09F-24V DC 100 ED
Open frame linear solenoid as Push and Pull type solenoid with integrated return spring. Our preferred types are available in small quantities from stock. Other versions or other voltages are available on request. More information can be found in the download area.
Technical details
| Description | Value |
|---|---|
| Duty cycle | 100 % |
| Power consumption | 1.6 W |
| Stroke | 2 mm |
| Inital force | 0.08 N |
| Nominal voltage | 24 V |
| End force | 0.7 N |
| Return spring | Yes |
| Dimensions (length, width, height) | 10.5 x 9.3 x 19.8 mm |
| Length | 10.5 |
| Width | 9.3 |
| Height | 19.8 |
| Design | No |
| Protection class | IP 00 |
| Thermal class | E, 120 |
| Connection | 5 cm lead |
| Solenoid weight | 6,3 g |
| Armature weight | 2 g |
| Product Line | Single Stroke Linear Solenoids |
