Vico MT 1027 WEB

67781011

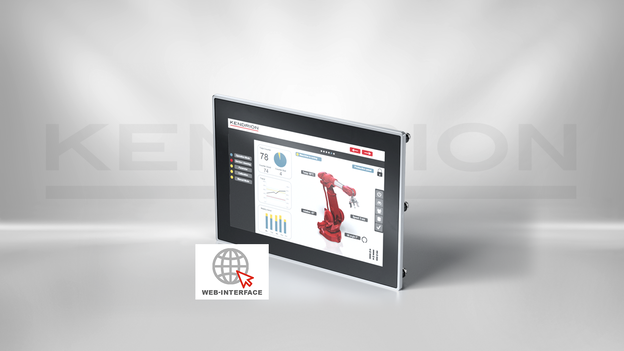

The Vico MT web panel combines an industrial-grade design with multi-touch technology. The IPS display, featuring a robust glass touchscreen and an aluminium frame, enables intuitive operation and a clear display. The integrated web browser displays content from various sources. The integrated 2D/3D graphics unit also supports the high-performance display of extensive web visualisations. Simple control cabinet installation and the use of industrial components with long-term availability ensure reliable and low-maintenance operation.


  • Integrated web browser with graphics support for comprehensive web visualisations
  • Brilliant IPS display with multi-touch technology and a robust glass touchscreen
  • Industrial-grade design with a high-quality aluminium frame
  • Easy control cabinet installation and low-maintenance operation thanks to components with long-term availability
Page as a PDF

Technical details

Description Value
Configuration WEB
Function Multi-Touch Web-Panel
Model Panel mounted HMI
Product status Active (from stock or on request)
Display 10.1" wide, IPS
Resolution 1280 x 800 / (16:10)
Processor i.MX8M mini Quad-Core CPU; 4 x 1.6 GHz
Operating system Linux
Software Web browser in kiosk mode
Number of tags Unlimited
Interfaces 2 x LAN, 2 x USB, 1 x RS-232
Housing material Aluminum frame with glass front
Mass storage / removable storage Flash disk 4 GB
Dimensions (W x H x D) 265 x 187 x 41 mm
IP-Protection Class IP 65 / IP 20
Supply voltage 24 VDC (± 20 %)
Temperature range 0 ... +55°C
