Vico MT 727 WEB
67781001

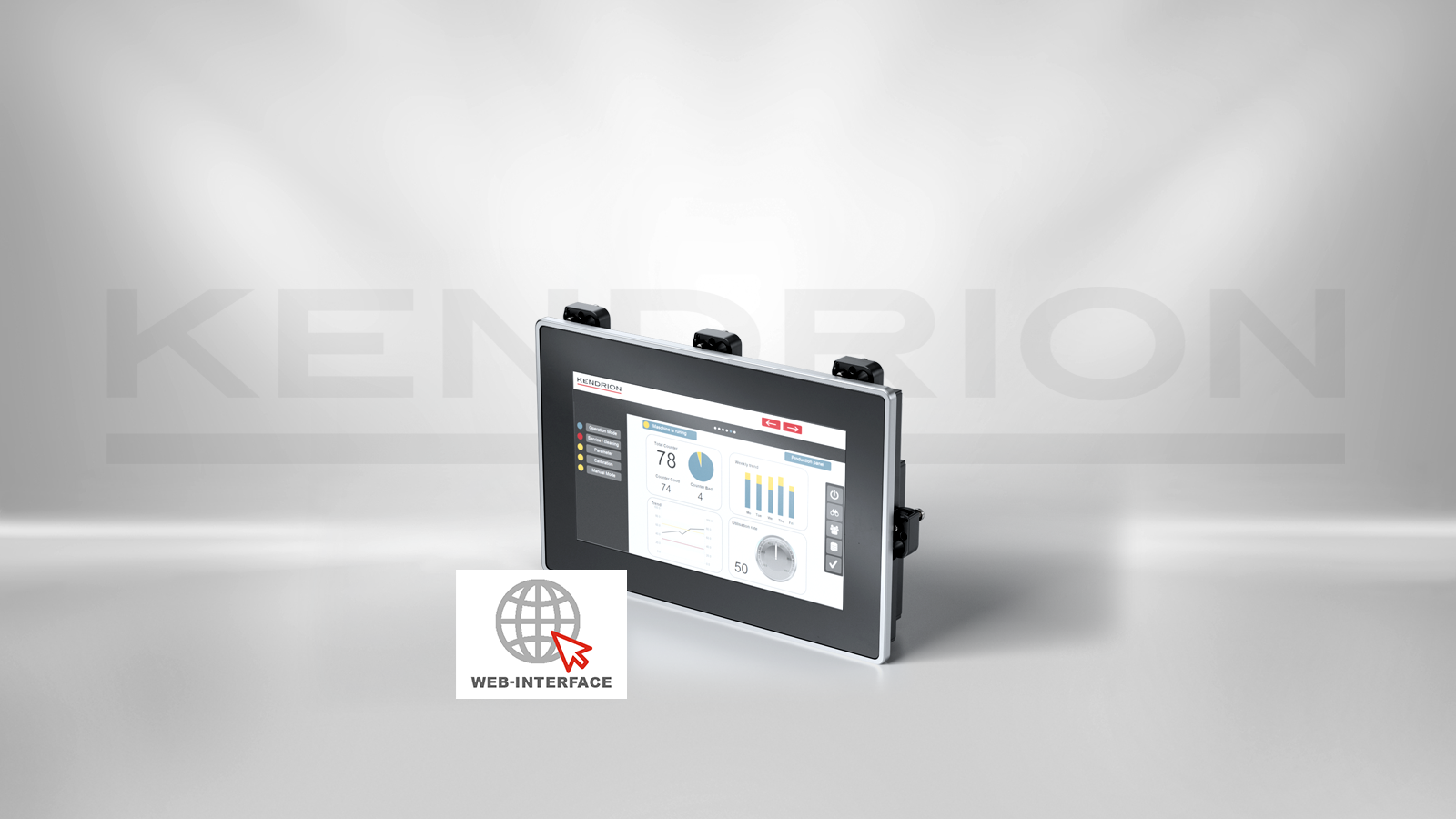

The Vico MT web panel combines industrial design with state-of-the-art multi-touch technology.
The brilliant IPS display with robust glass touchscreen and high-quality aluminium frame enables intuitive operation and impresses with its razor-sharp display. The integrated web browser visualises content from various sources and turns the panel into a versatile display and operating unit. Simple switch cabinet installation and the use of industrial components with long-term availability guarantee reliable and low-maintenance operation.
- Integrated web browser for flexible visualisation of various sources
- Brilliant IPS display with multi-touch technology and robust glass touchscreen
- Industrial-grade design with high-quality aluminium frame
- Simple switch cabinet installation and low-maintenance operation thanks to components with long-term availability
Technical details
| Description | Value |
|---|---|
| Configuration | WEB |
| Function | Multi-Touch Web-Panel |
| Model | Panel mounted HMI |
| Product status | Standard product |
| Display | 7" wide, IPS |
| Resolution | 1024 x 600 (17:10) |
| Processor | i.MX8M mini Quad-Core CPU; 4 x 1.6 GHz |
| Operating system | Linux |
| Software | Web browser in kiosk mode |
| Number of tags | Unlimited |
| Interfaces | 2 x LAN, 2 x USB, 1 x RS-232 |
| Housing material | Aluminum frame with glass front |
| Mass storage / removable storage | Flash disk 4 GB |
| Dimensions (W x H x D) | 200 x 132 x 48 mm |
| IP-Protection Class | IP 65 / IP 20 |
| Supply voltage | 24 VDC (± 20 %) |
| Temperature range | 0 ... +55°C |
