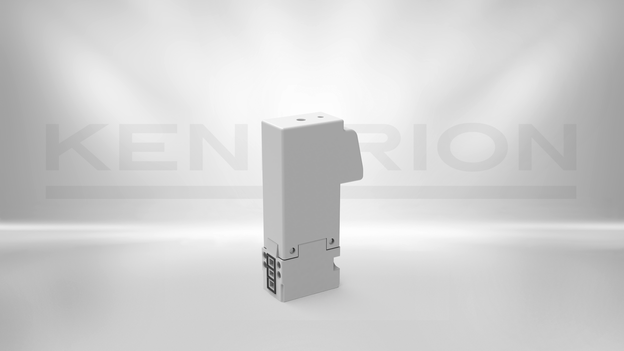

Solenoid Valve Type 63.0
63.020.30
10 mm width, three different electrical connection possibilities. Optionally with manual override operation.
Technical details
| Description | Value |
|---|---|
| Nominal voltage | 24 V DC |
| Nominal current | 153 mA |
| Returning mechanism | Spring |
| Protection class | IP65 |
| Ambient temperature | -10 ... +50 °C |
| Valve type | Poppet valve |
| Materials | Base: PBT, seal: NBR |
| Actuation | directly controlled |
| Identification number | 99783 |
| Pressure range | 0 - 5 bar |
| Nominal orifice | 0.9 mm |
| Type of pneumatic connection | Flange |
| Kv-value | 0.33 l/min |
| Size | 10 mm |
| Actuation type | electrically actuated |
| Duty cycle | 100 % ED |
| Type of electric connection | Plug |
| Medium | Filtered (5 µm), lubricated and non lubricated air |
| Nominal power | 1.8 W |
| Function | 3/2-way NC |
