MHS Controller EtherCAT
610 610 20

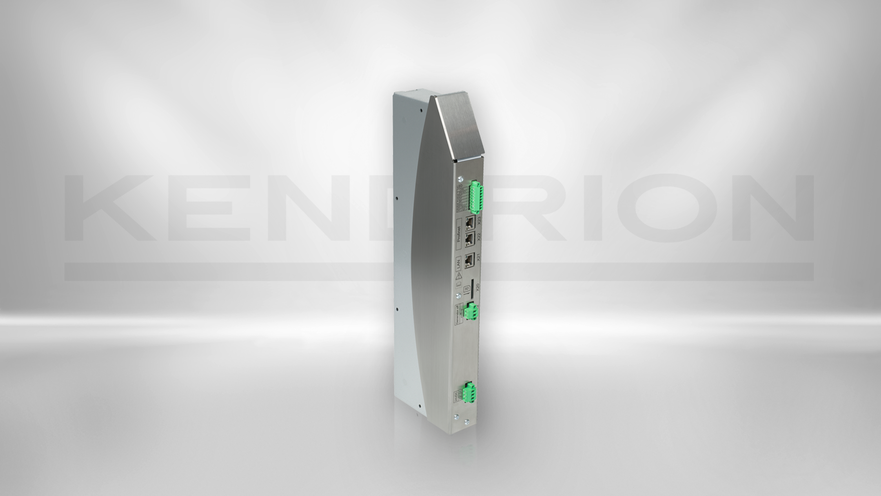

The controller is a fieldbus device for the control of up to 7 power modules from the modular heating System from Kendrion, which are directly connected via the module bus. In addition to system monitoring, the controller can also control or regulate the individual output channels of all power modules. Actual temperature values can be delivered directly via CAN fieldbus or provided by a higher-level controller e.g. a PLC.
The devices are intended for installation in switch cabinets and can only be used in conjunction with MHS induction generators.
- EtherCAT Fieldbus interface
- Independent control of up to 7 induction generators
- System monitoring, temperature control
- Integrated I/Os and CAN system bus
Technical details
| Description | Value |
|---|---|
| Functions | Temperature control, system monitoring, fieldbus communication, bus coupler for up to 7 MHS power modules, power control, Software update via SD |
| Field bus interfaces | EtherCAT |
| Product status | System product |
| Interfaces | 1 x Ethernet 10/100Mbit (on request) |
| Modul bus | Data communication via CAN, electronic supply 24 VDC |
| Status indication | Heating system, EtherCAT, CANopen, DC power supply |
| Integrated I/Os | on request: 8 x DI: input delay: 3 ms / 8 x DO 24V, 0,5 A, Short circuit protection |
| Housing material | module made of steel with stainless steel cover for use in a closed, metallic control cabinet |
| IP-Protection Class | IP 20 |
| Mounting | Prepared for left-side mounting on the power module |
| Dimensions (W x H x D) | 451 mm x 44 mm x 286 mm |
| Supply voltage | 24 VDC / -10% +10% (21,6 V – 26,4) |
| Operating temperature | In vertical installation position: 0°C ... 35°C |
| Certifications | CE, cULus (in preparation) |
