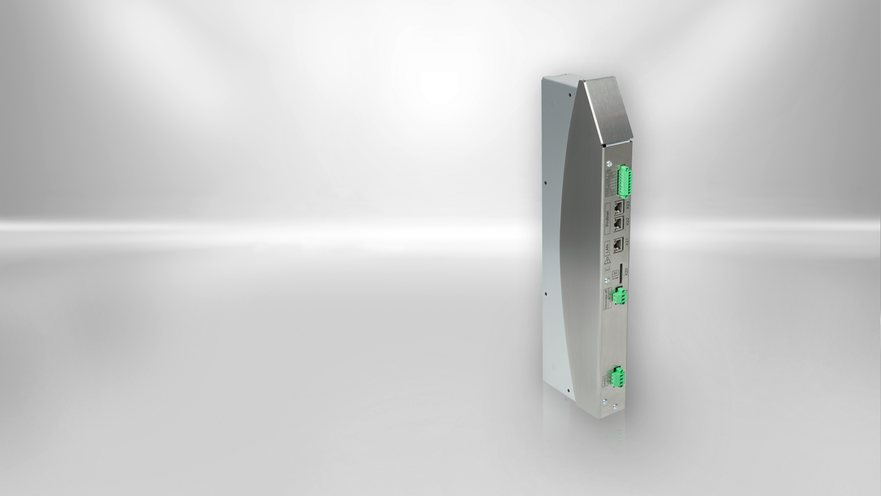

Controller for induction generators

MHS Controller for Induction heating

The Kendrion induction generators are designed as a modular system. They consist of a controller and up to seven stackable induction generators. The controller can be integrated into the control of a machine via a fieldbus interface (e.g. Profinet®, EtherCAT® or CANopen®). The control of the individual induction generators and the retrieval of status messages is carried out for all connected generators via the central controller. Depending on the configuration, the controller can also control the heating channels with integrated PID controllers. The units are designed for installation in control cabinets.

  • Various fieldbus interfaces
  • System monitoring, temperature control
  • A wide range of diagnostic options

Products (3)
show results as grid
show results as list
Title
Type
ascending
descending
Functions
ascending
descending
Field bus interfaces
ascending
descending
Interfaces
ascending
descending
Modul bus
ascending
descending
Status indication
ascending
descending
Integrated I/Os
ascending
descending
Housing material
ascending
descending
IP-Protection Class
ascending
descending
Mounting
ascending
descending
Dimensions (W x H x D)
ascending
descending
Supply voltage
ascending
descending
Operating temperature
ascending
descending
Certifications
ascending
descending
Details
MHS Controller PROFINET
610 610 02 Temperature control, system monitoring, fieldbus communication, bus coupler for up to 7 MHS power modules, power control, Software update via SD PROFINET IO-Device 1 x Ethernet 10/100Mbit (on request) Data communication via CAN, electronic supply 24 VDC Heating system, PROFINET, CANopen, DC power supply on request: 8 x DI: input delay: 3 ms / 8 x DO 24V, 0, 5 A, Short circuit protection module made of steel with stainless steel cover for use in a closed, metallic control cabinet IP 20 Prepared for left-side mounting on the power module 451 mm x 44 mm x 286 mm 24 VDC / -10% +10% (21, 6 V – 26, 4) In vertical installation position: 0°C ... 35°C CE, cULus (in preparation), PROFINET (in preparation)
MHS Controller EtherCAT
610 610 20 Temperature control, system monitoring, fieldbus communication, bus coupler for up to 7 MHS power modules, power control, Software update via SD EtherCAT 1 x Ethernet 10/100Mbit (on request) Data communication via CAN, electronic supply 24 VDC Heating system, EtherCAT, CANopen, DC power supply on request: 8 x DI: input delay: 3 ms / 8 x DO 24V, 0, 5 A, Short circuit protection module made of steel with stainless steel cover for use in a closed, metallic control cabinet IP 20 Prepared for left-side mounting on the power module 451 mm x 44 mm x 286 mm 24 VDC / -10% +10% (21, 6 V – 26, 4) In vertical installation position: 0°C ... 35°C CE, cULus (in preparation)
MHS Controller CANopen
610 610 10 Temperature control, system monitoring, fieldbus communication, bus coupler for up to 7 MHS power modules, power control, Software update via SD CANopen 1 x Ethernet 10/100Mbit (on request) Data communication via CAN, electronic supply 24 VDC Heating system, Fieldbus, CANopen, DC power supply on request: 8 x DI: input delay: 3 ms / 8 x DO 24V, 0, 5 A, Short circuit protection module made of steel with stainless steel cover for use in a closed, metallic control cabinet IP 20 Prepared for left-side mounting on the power module 451 mm x 44 mm x 286 mm 24 VDC / -10% +10% (21, 6 V – 26, 4) In vertical installation position: 0°C ... 35°C CE, cULus (in preparation)
