Pneumatic signal indicators and converters
Robust switches for various pneumatic circuits

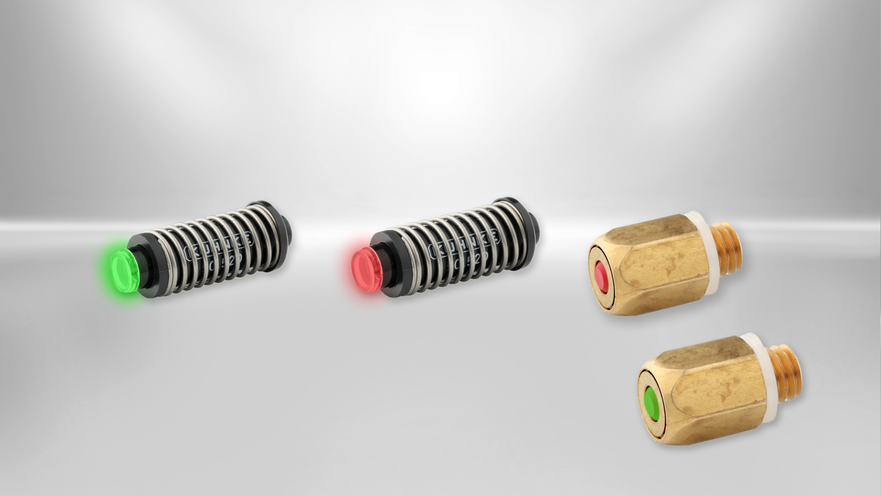

Pneumatic-electrical converter (PE converter) allow the communication between pneumatical and electrical signaling devices. The pneumatic signal actuates on a membrane-capsulated micro switch that is sending an electrical impulse to the connected control system. Pneumatic indicators are the easy way to display the existence of a pneumatic signal (overpressure). They are a typical part of many control desks and are also available as miniature indicator with M5 screw-in thread.
Kendrion's pneumatic signal indicators and converters were formerly known as Kuhnke.
Products
(9)
|
Title
|
Type
|
Product type
|
Pressure range (bar)
|
Medium
|
Type of pneumatic connection
|
Ambient temperature (°C)
|
Mounting
|
Type of electric connection
|
Materials
|
Details | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Miniature Pressure Wave Switch (adjustable, 0.8 - 8.0 mbar) | 60.060.01 | PE-converter | >0.8 - 8 | - | M5 | -10 ... +60 | - | Plug contacts | Contacts: Ag 5 | |
|
Pressure Switch on Subplate (adjustable, 0.5-4 bar, max. 0.1A) | 60.073.40.01 | PE-converter | 0.5 - 4 | non-aggressive media | M5 | -0 ... +60 | Subplate | Connector / flat connection | Housing: plastic, seal: FKM | |
|
Pressure Switch on Subplate (adjustable, 0.5-4 bar, max. 4 A) | 60.073.40.60 | PE-converter | 0.5 - 4 | non-aggressive media | M5 | -0 ... +60 | Subplate | Connector / flat connection | Housing: plastic, seal: FKM | |
|
Pressure Switch on Subplate (adjustable, 3-8 bar, max. 0.1A) | 60.073.80.01 | PE-converter | 3 - 8 | non-aggressive media | M5 | -0 ... +60 | Subplate | Connector / flat connection | Housing: plastic, seal: FKM | |
|
Pressure Switch on Subplate (adjustable, 3-8 bar, max. 6A) | 60.073.80.60 | PE-converter | 3 - 8 | non-aggressive media | M5 | -0 ... +60 | Subplate | Connector / flat connection | Housing: plastic, seal: FKM | |
|
Visual Indicator red (panel mounting) | 50.520 | Indicator | 1.2 - 8 | Filtered (5 µm), lubricated or non lubricated air | M5 | -10 ... +50 | - | - | - | |
|

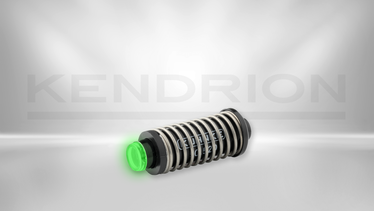

Visual Indicator green (panel mounting) | 50.521 | Indicator | 1.2 - 8 | Filtered (5 µm), lubricated or non lubricated air | M5 | -10 ... +50 | - | - | - | |
|
Miniature Visual Indicator red (M5 pressure connection) | 50.590 | Indicator | 3 - 10 | Filtered (5 µm), lubricated or non lubricated air | M5 | -10 ... +50 | - | - | - | |
|
Miniature Visual Indicator green (M5 pressure connection) | 50.591 | Indicator | 3 - 10 | Filtered (5 µm), lubricated or non lubricated air | M5 | -10 ... +50 | - | - | - |
