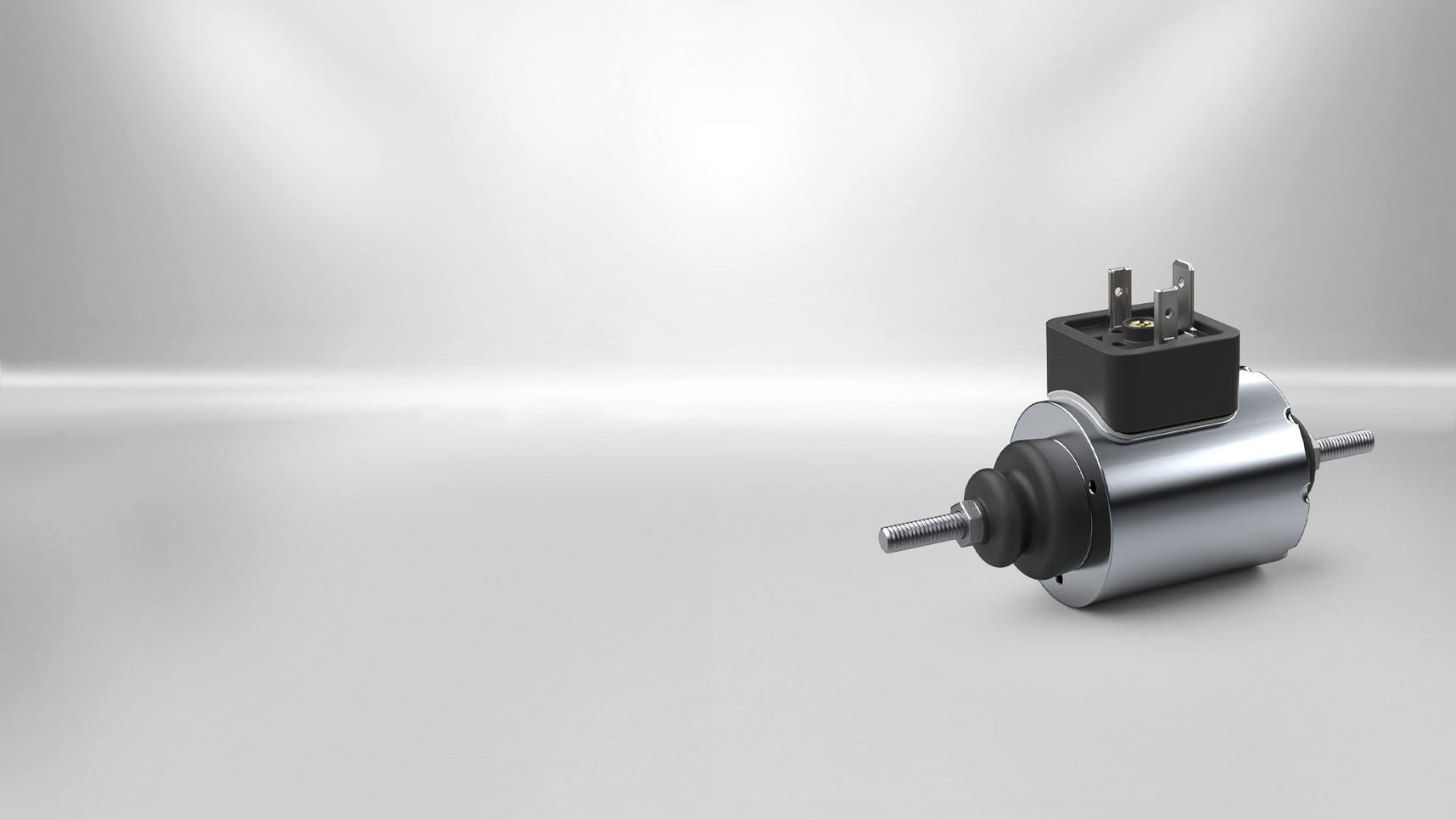

Large forces and long strokes

The High Power Linear Solenoids excel by large forces, long strokes and their maintenance-free use.

The High Power single-stroke solenoids are pot magnets with high performance. The armature is led on both sides with maintenance-free low wear precision bearings resulting in high resistance to wear even at a high switching frequency. Some other aspects of the High Power Solenoids are their small dimensions and low power consumption at maximum travel, which can be up to a two inches stroke. The supply voltages are very flexible; our standard voltages reach from 12V DC to 205V DC.

This versatility and reliability make it the perfect solenoid solution for a lot of different industries. Our High Power Solenoids are commonly used in machine building, the packaging industry, automation technology, and any other area where a resilient electromagnet is needed. The major benefits compared to other technologies like air or hydraulic cylinders are that all you need is electricity, no additional hoses, compressors, filters, or other equipment. Combined with the fast switching times, this is the easiest way to divert and sort packages and letters in the packaging industry. Other applications are in the recycling industry, sorting different kinds of waste.





Benefits at a glance

  • Large forces and long strokes
  • Functional safety & reliability
  • Long lifetime
  • Short switching times and smooth operation
  • Maintenance-free use

Technische Daten

Parameter Value
Supply Voltage 24 - 205 V DC
Duty cycle 5 / 25 / 40 / 100 %
Stroke 8 - 50 mm
Force 8 - 600 N
Pull-in time 80 - 780 ms
Release time 40 - 380 ms
Thermal class B
Protection class device IP54
Installation type Front side by threaded holes
Protection class connection IP65
Accessories Female connector with/without rectifier
Fork head with/without ES-bolt
Mounting flange

Downloads

Catalogue | High Power Linear Solenoids
pdf - 789 KB
Technical Explainations | Electromagnets & Actuators
pdf - 2 MB
