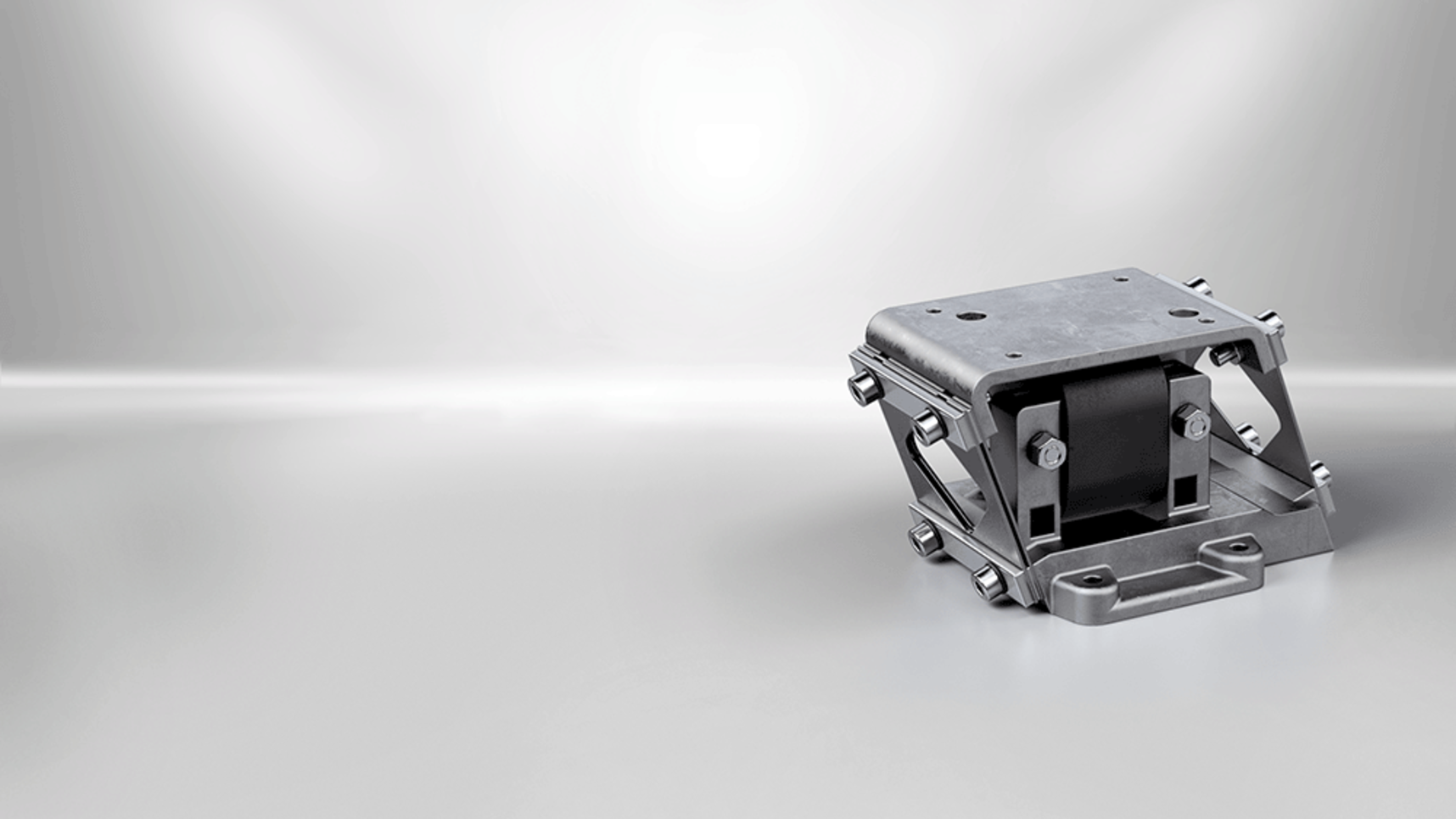

The infinitely adjustable oscillating drive

The KENDRION oscillating feeder driver of the OMW series is a finished AC oscillating drive for use in various areas of automation and conveyor technology.  It generates an arc-shaped vibratory movement. Whether for shaking out punching and stamping waste, for filling containers in the packaging and pharmaceutical industry, or for dosing in particle feeding for measuring devices and analysis, the feeder driver is convincing as a precise and reliable drive.

The magnetic body of the oscillating solenoid OMW is fixed to the base with the excitation winding. Mounted above is the armature plate, with the pole faces separated by an air gap and parallel with those of the magnetic body. The armature plate and the base are connected by leaf springs. There is a tensile force between the armature and the magnetic body. If an alternating current is applied to the excitation coil, the force of the alternating electromagnetic field overlaps the force of the OMW and, for the magnet type OMW 516004, the force of the permanent magnet. The frequency of the resulting force corresponds to the frequency of the AC voltage applied, which moves the armature in the same rhythm. Due to the leaf springs mounted at an angle, the armature plate performs an arc-shaped vibratory movement and transports the bulk material.

Pre-finished system

Kendrion’s oscillating feeder drivers are a fully complete system including springs, coils, armatures, and the base. The only thing that needs to be done is mount the rail of the linear feeder on top of the solenoid.





Benefits at a glance

  • Pre-finished system
  • Sturdy and compact design
  • Protection class II
  • Installation through bores in base

Technical data

Parameter Value
Electrial connection 230 V AC, 50/60 Hz, 100% ED
Apparent power 14-200 VA
Load weight 0,1 - 17 kg
Installation type Through bores in base
Cycle stroke 1,3 – 1,7 mm
Magnet weight 0,2 - 8,6 kg
Magnet sizes 4 different versions

Downloads

Brochures and Flyers
Catalogue | Oscillating Solenoids
pdf - 3 MB
Brochures and Flyers
Technical Explainations | Electromagnets & Actuators
pdf - 2 MB

Application of our vibratory feeder drive

WATCH THE VIDEO
How our Vibratory Feeding Systems ensure precise material flow
This animation illustrates how Kendrion’s electromagnetic vibratory drives are seamlessly integrated into modern feeding systems. From bowl feeders to linear conveyors and vibrating tables, our oscillating solenoids ensure accurate dosing, continuous material flow, and reliable part orientation. Thanks to their modular design and efficient electronic control units, Kendrion systems can be tailored to a wide range of industrial applications.
