Electromagnetic door holders - discover the largest product range in the industry

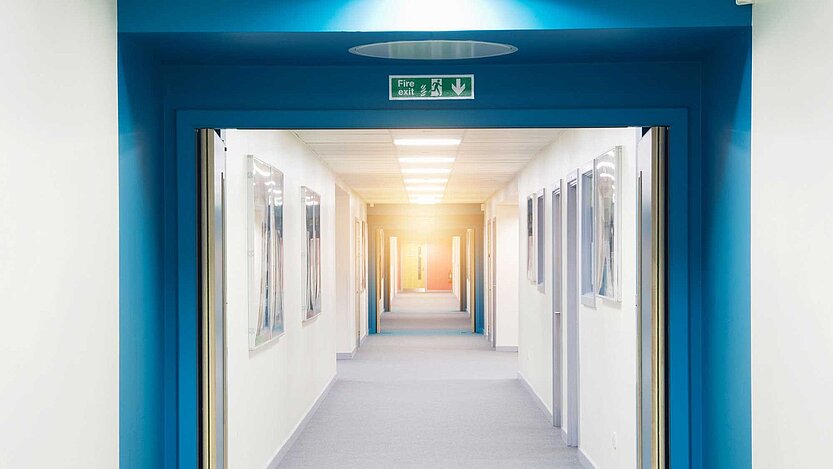

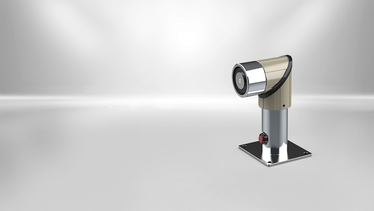

Door holding magnets from Kendrion are used as locking devices of fire barriers (fire doors, fire gates, fire valves) to keep them in an open state. In this respect, the guidelines of the German Institute for Structural Engineering (Deutsches Institut für Bautechnik, DIBt) have to be observed.

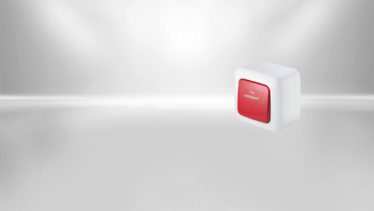

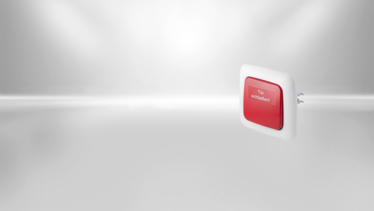

They are also used for conventional doors, especially in shops and entrance areas, where they have to be kept open safely and reliably, with minimum power consumption and high holding force. The door is closed by pushing a circuit breaker to disconnect the power supply. For these applications, 230 Volt AC (mains voltage) models are available, which are easy to install and come with accessories.
Tested quality
When applied for fire-protection purposes central fire alarm systems resp. controlling smoke switches release the barriers by disconnecting the power supply if smoke is detected. Doors resp. barriers are automatically closed by means of door closers, thus preventing the spread of fire and smoke to the whole building. These applications are based on specific tests and approvals. As a leading manufacturer Kendrion offers a full product range in compliance with the guidelines!
Designs for ship-building and explosion protection

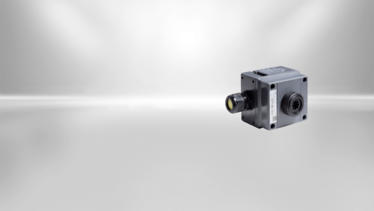

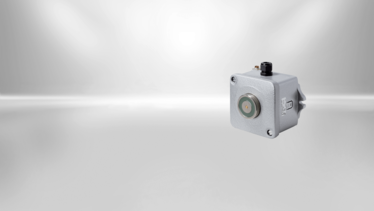

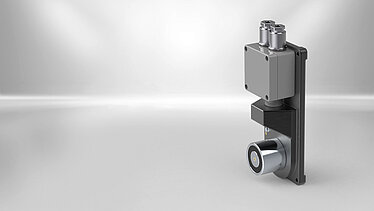

By its focus and market position Kendrion also offers variants for ATEX areas (EX) – tested by the Physical Technical Federal Institution (Physikalisch-Technische Bundesanstalt, PTB) – and for the maritime sector (shipbuilding and off-shore platforms) – tested by the DNV GL.
Mounting options

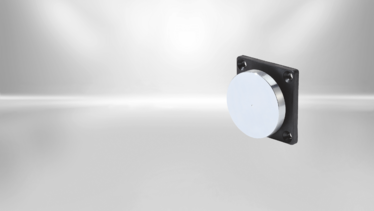

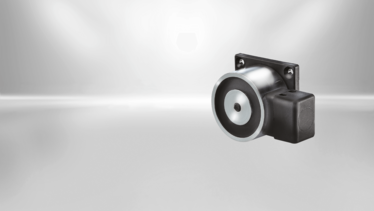

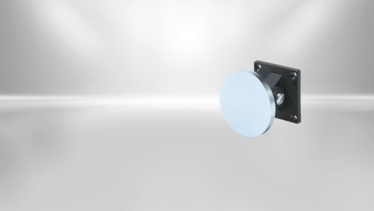

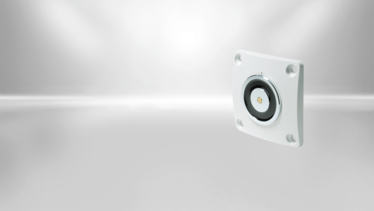

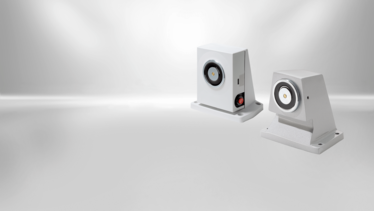

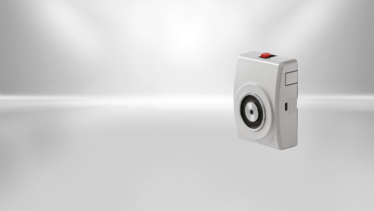

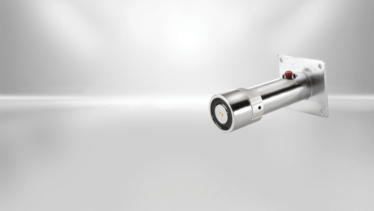

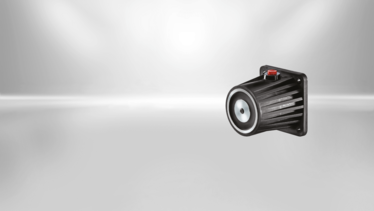

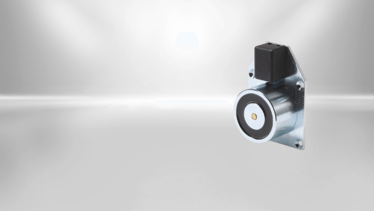

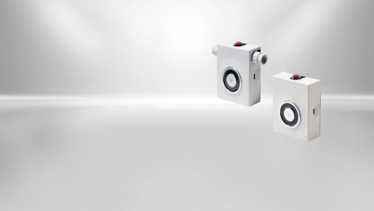

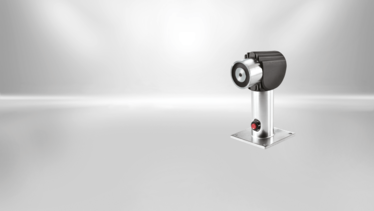

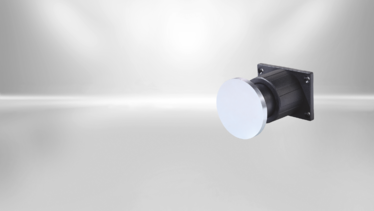

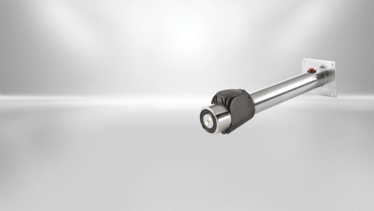

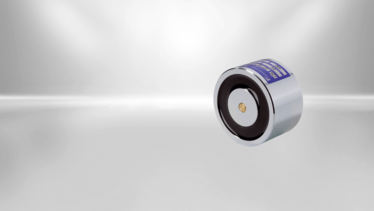

The holding magnet is mounted to the wall, the floor, or the ceiling behind the door. Due to the diversity of types, almost any requirement profile can be fulfilled. An armature plate mounted to the door serves as the counterpart. Standard models, flexible angle settings, and spring-damped variants (for heavy doors) are available.
KENDRION has been manufacturing door holding magnets since the late 1960s and is considered as one of the inventors of this type of locking device. Over the years, our leading position has been established by continual innovation in design and technology. The door holders stand for quality, efficiency, and user-friendliness. Tested quality saves lives and is considered as the primary installation requirement.
Need help choosing the right product?

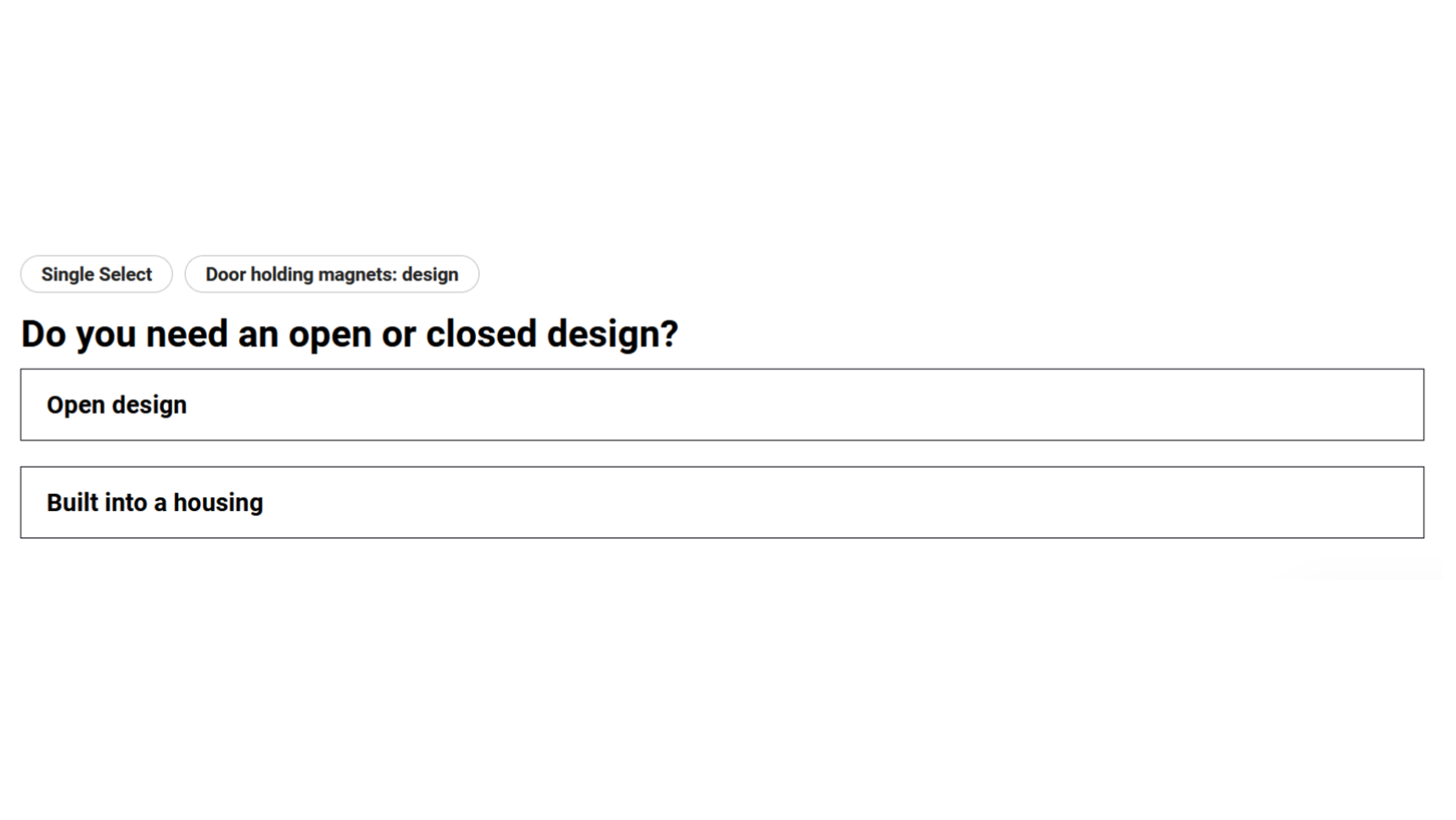

Our new Product Guide takes you through the process of finding the product you need, step by step. Supported by intelligent questions, the guide will lead you to the perfect match. Finally, you will receive all the technical data and downloads available.
Start Guide for Door Holding Magnets
Technical Data
| Parameter | Value |
|---|---|
| Supply voltage | 24 V DC |
| Rated power | 1.4 - 90 W |
| Holding Force | 300 - 1.568 N (30 -160kg) |
| Approvals (depending on type / product line) | VdS, EN1155 CPD, CPR, DIN EN 14637, EN1155, CE, NF (Norm Francaise), ATEX, DNV GL |
| Protection class | IP42, IP54, IP65 |
| Protection class connection | up to IP65 |
| Accessoires |
Brackets for wall and floor installation Armature plates Circuit breaker |
| Other |
Manifold assembly and connection options Integrated inverse polarity and spark extinction diode No remanence by push-off pin |
