Web terminals

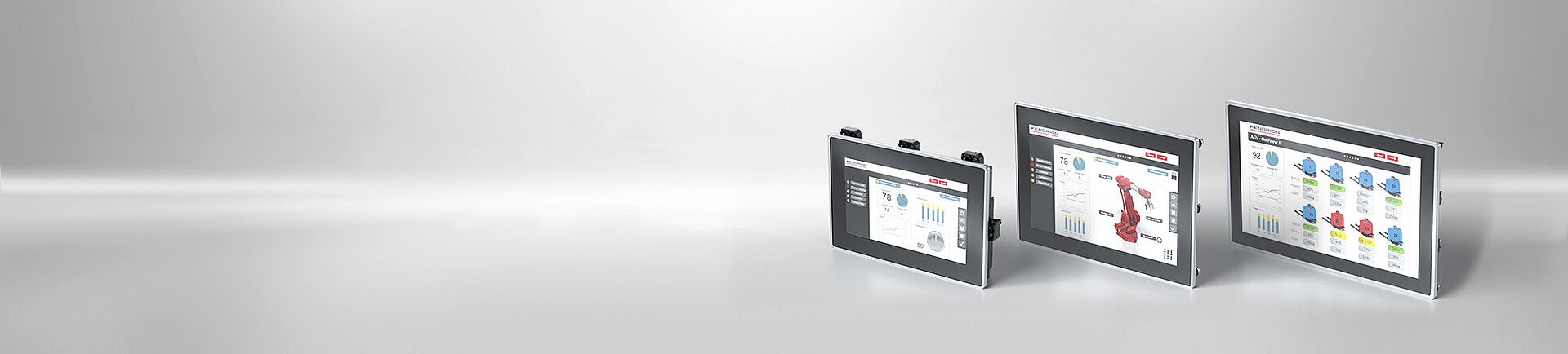

With the new single or multi-touch capable web terminal Vico Web it is now possible to display HTML5 visualisations, web pages or other displays. The standard web terminal has an integrated web browser and requires no further programming. The visualisation is provided by the web server. An HTML5 capable browser runs on the Vico WEB. This can connect with several different CODESYS-compatible controllers with WebVisu. The connection to the various web servers is made via the HTML protocol, so there are no additional costs or additional licenses. All modern visualisation functions of CODESYS Web Visualisation are supported. The display of process data from the web server is very practical, especially for extensions or modernisations with additional visualisation and operating devices. The Vico Web family comprises several devices with scalable processor and display technology from 4.3 to 10 inches and also complements existing machine concepts in an excellent way to create modern automation solutions that are available everywhere. They all have an industry-oriented device design and are available for long-term use.
General Technical Specifications
| Parameter | Value |
|---|---|
| Type | Vico 04 |
| Display size / resolution | 4,3" / 480 x 272 (PSP) |
| 7" / 800 x 480 (WVGA) | |
| 10,1" / 600 x 480 (1024x600, WSVGA) | |
| Touch screen | 4-wire analogue resistive |
| Backlight | LED white |
| Processor | ARM Cortex-A8 - 1 GHz |
| Software | Chromium (open source internet browser) |
| Drives | 4 GB Flash |
| Networks | Ethernet 10/100 Mbit – RJ45 |
| Interfaces | RS-232, RS-485, USB, |
| Operating voltage | 24 V DC |
| Operating temperature | 0°C ... +50°C |
| Protection class: | Front: IP 66; rear: IP 20 |
| Front panel | Plastic front panel with black insert foil, seamless sealing against dust, dirt and splash water |
