Rod gripper Alnico
550 4013 63

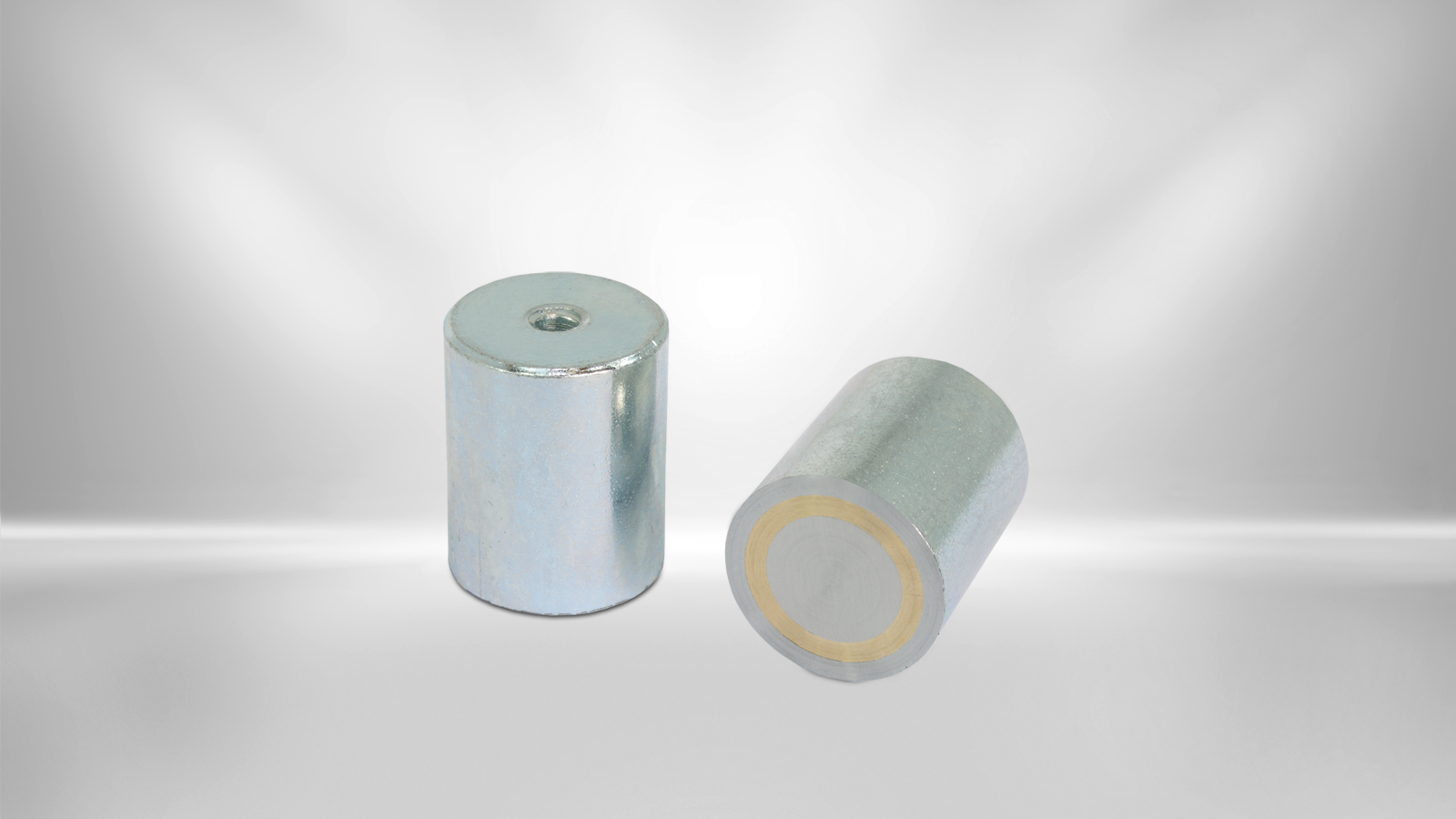

Rod gripper with a AlNiCo magnet in a steel housing. The maximum adhesive force is achieved when the entire surface is placed on a metallic surface. The rod gripper has a central internal thread.
Technical details
| Description | Value |
|---|---|
| Design | with internal thread |
| Material | AlNiCo |
| Force | 660 N |
| Height | 65 mm |
| Shortened to | 5 mm |
| Weight | 1280 g |
| Temperature | 450 °C |
| Thread | M10 x 12 |
| Fitting Tolerance | h6 |
| Housing | steel |
